After-sales Service: 24 Hours Online
Warranty: One Year
Application: Metal
Send Inquiry

Product Description

Basic Specifications

Model NO.
VMC1060
Process Usage
Metal-Cutting CNC
Movement Method
Linear Control
Control Method
CNC System
Processing Precision
+-0.015/300mm
Product Name
Vertical Machining Center
Table Size
1200X600mm
Max Load
800kg
Spindle Speed
8000 Rpm
Certification
GS, CE, ISO 9001

Product Description

The VMC series is engineered for high-precision mechanical processing and complex mold manufacturing. It provides a versatile platform that adapts seamlessly from rough machining to fine finishing operations, including milling, drilling, tapping, and boring.

Standard Configuration
  • GSK 218M/25i Control system
  • Taiwan BT40-150-8000RPM high-speed spindle
  • Taiwan Arm Type Tool Changer
  • Taiwan Hiwin linear guideways and ball screw
  • Automatic Central Lubrication & Cooling system
  • Three-color alarm Lamp
  • Full Enclosure Machine Guard
Optional Upgrades
  • Fanuc, Siemens, Mitsubishi, KND, HNC Systems
  • Chain type chip conveyor
  • Spindle coolant system

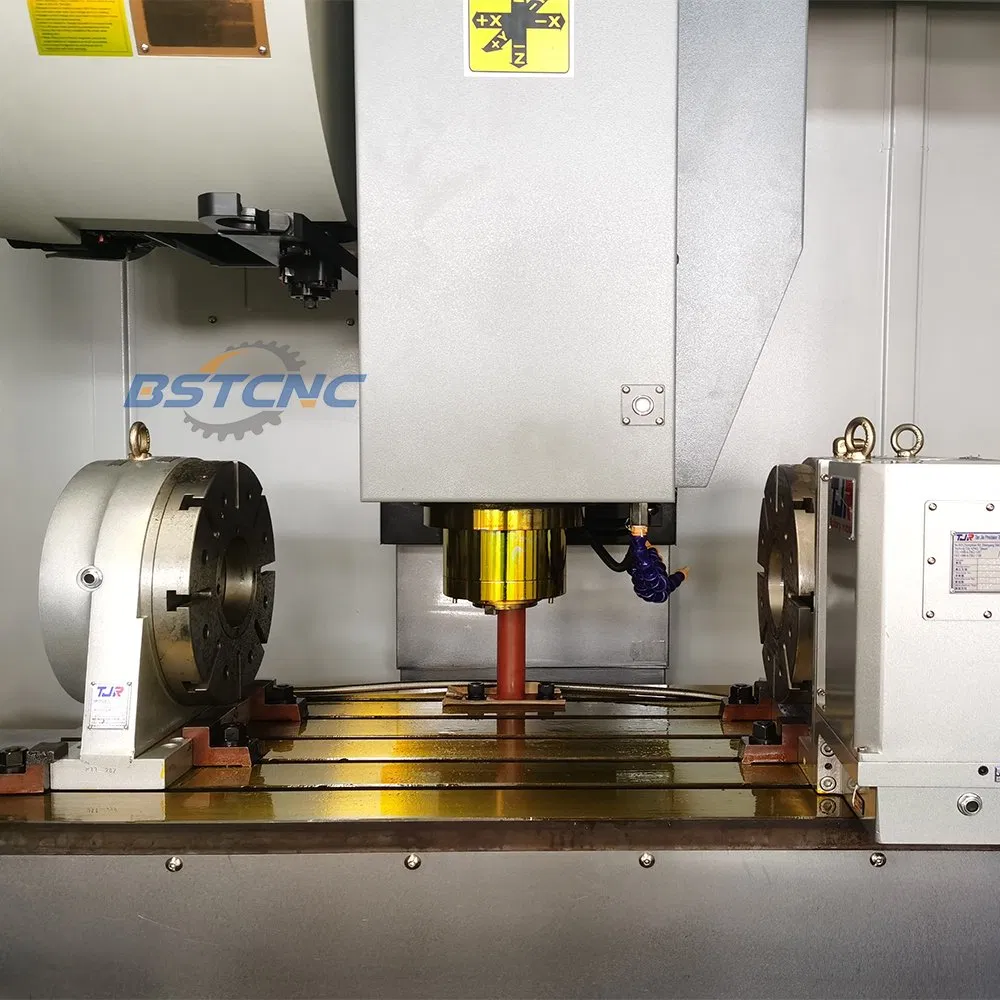

  • Taiwan TJR brand 4th axis
  • Renishaw tool setter TS27R
  • Online measuring system OMP60

Technical Parameters

Category Item VMC1060 Specification
TravelX axis1000mm
Y axis600mm
Z axis600mm
FeedRapid Feed (X/Y/Z)24m/min
Cutting Feed Rate1-10000mm/min
Torque (X/Y/Z)18/18/22 N.m
TableTable size1200×600mm
Max Load800Kg
SpindleSpindle TaperBT40/150
Spindle Speed8000 rpm
Main Motor11/15 KW
AccuracyPositioning (JIS)±0.015/300mm
Repeatability (JIS)±0.0075mm

Detailed Photos

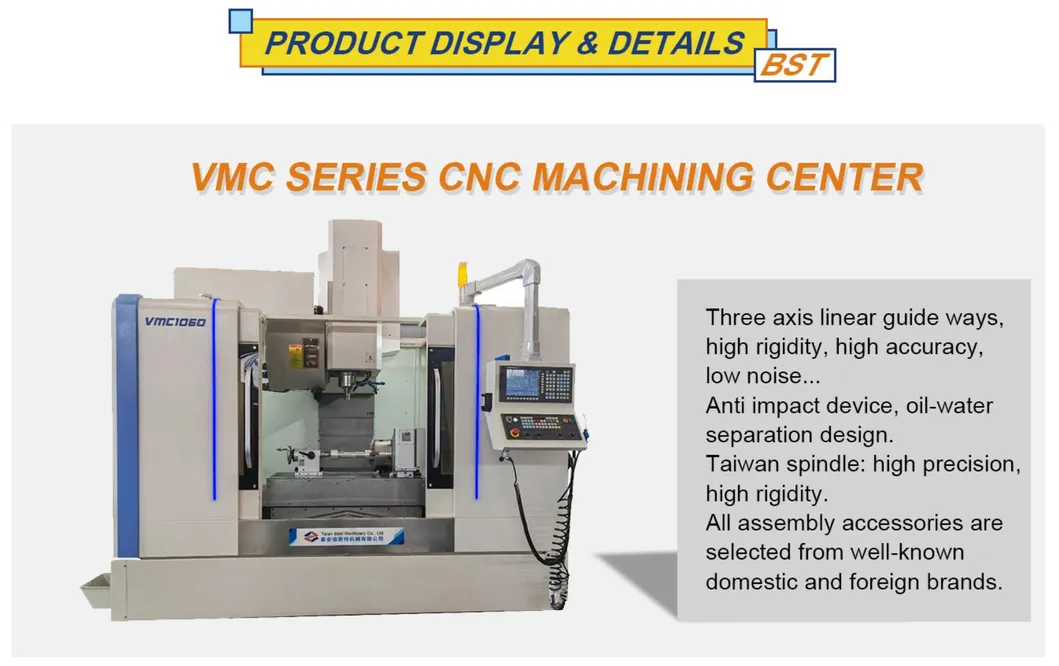

VMC1060 CNC Machine View 1

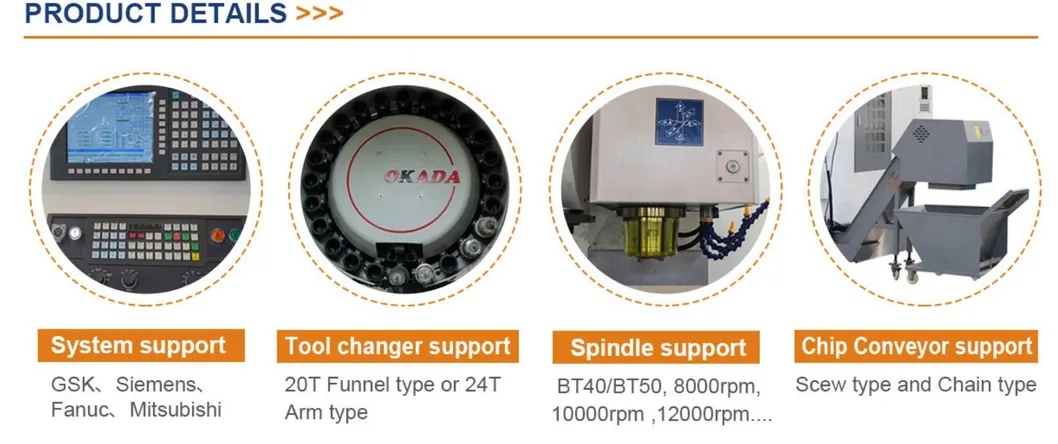

VMC1060 CNC Machine View 2

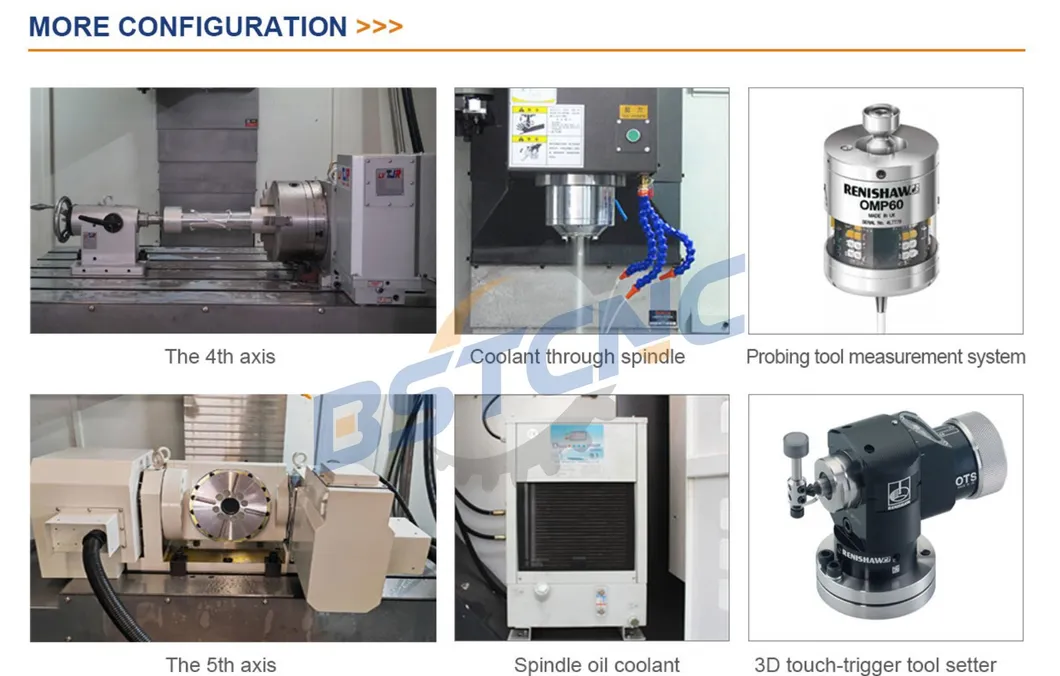

VMC1060 CNC Machine View 3

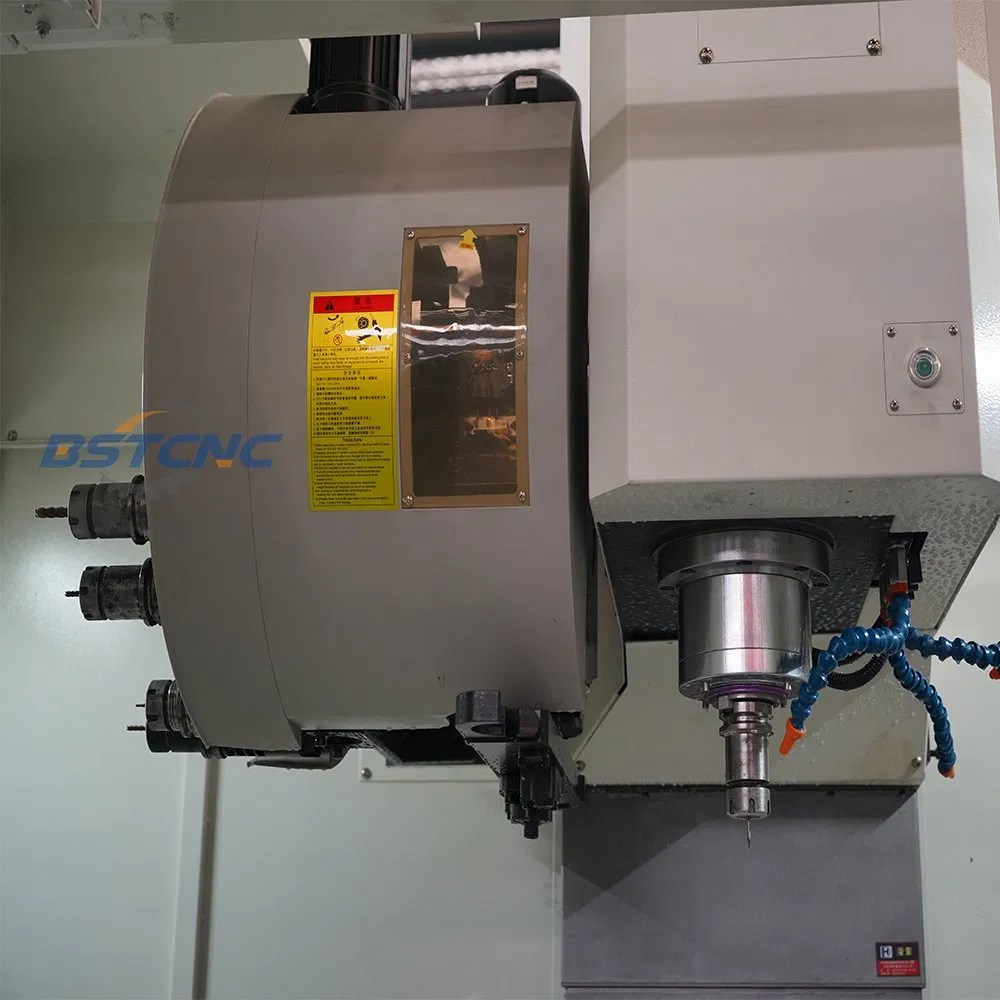

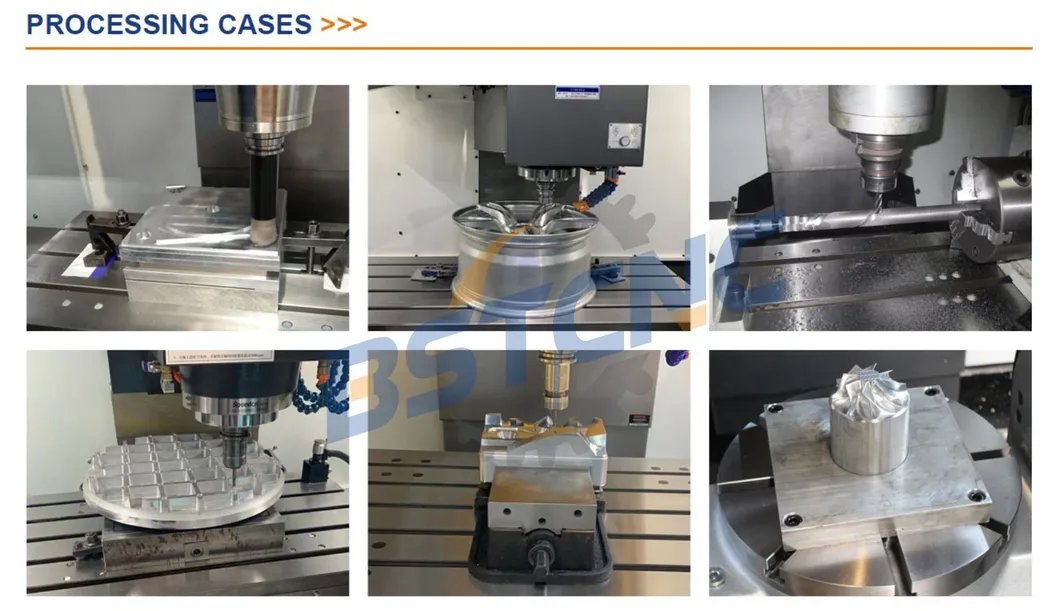

Spindle Details

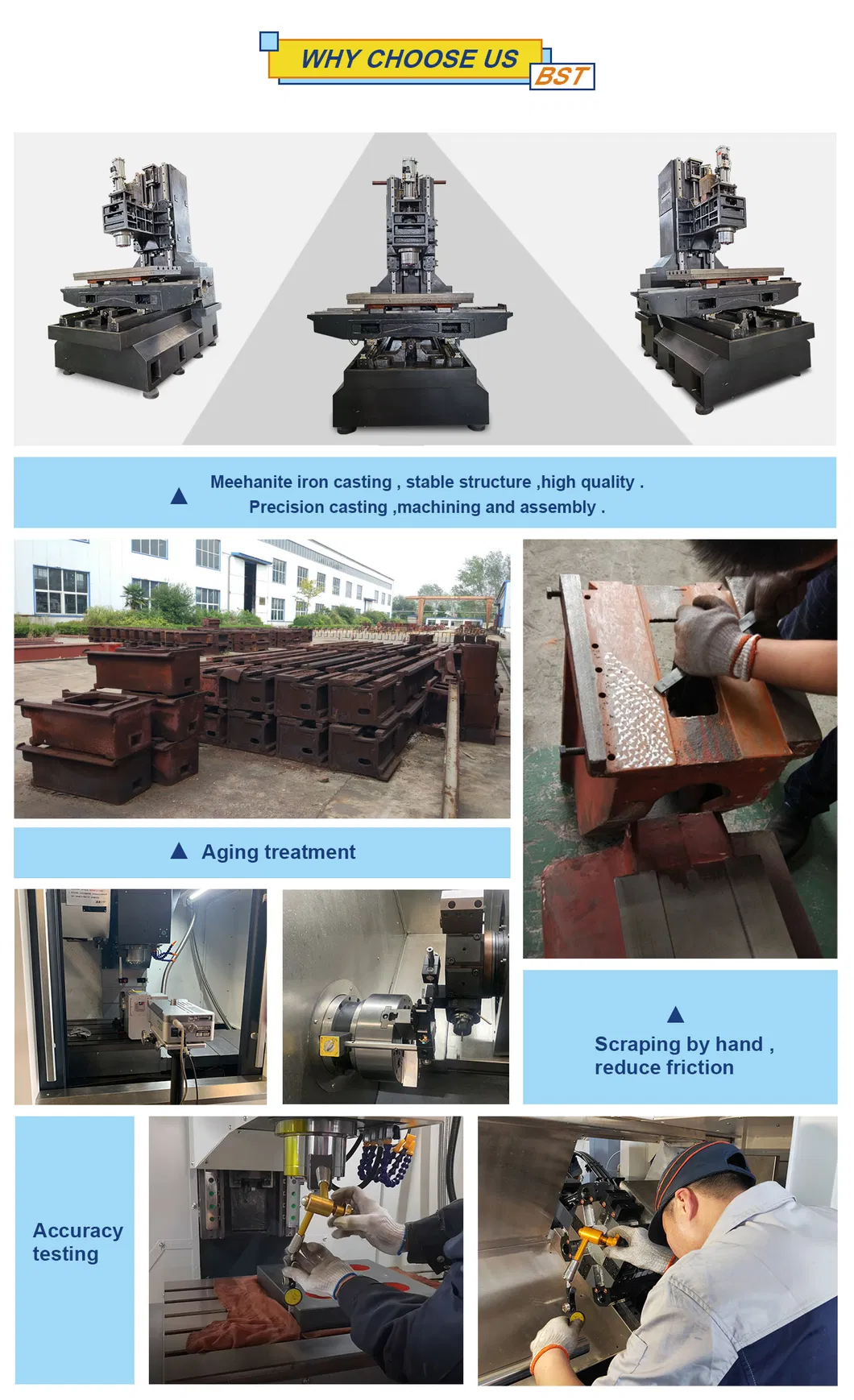

Internal Components

Packaging & Shipping

Machining Center Packaging

Manufacturing Excellence

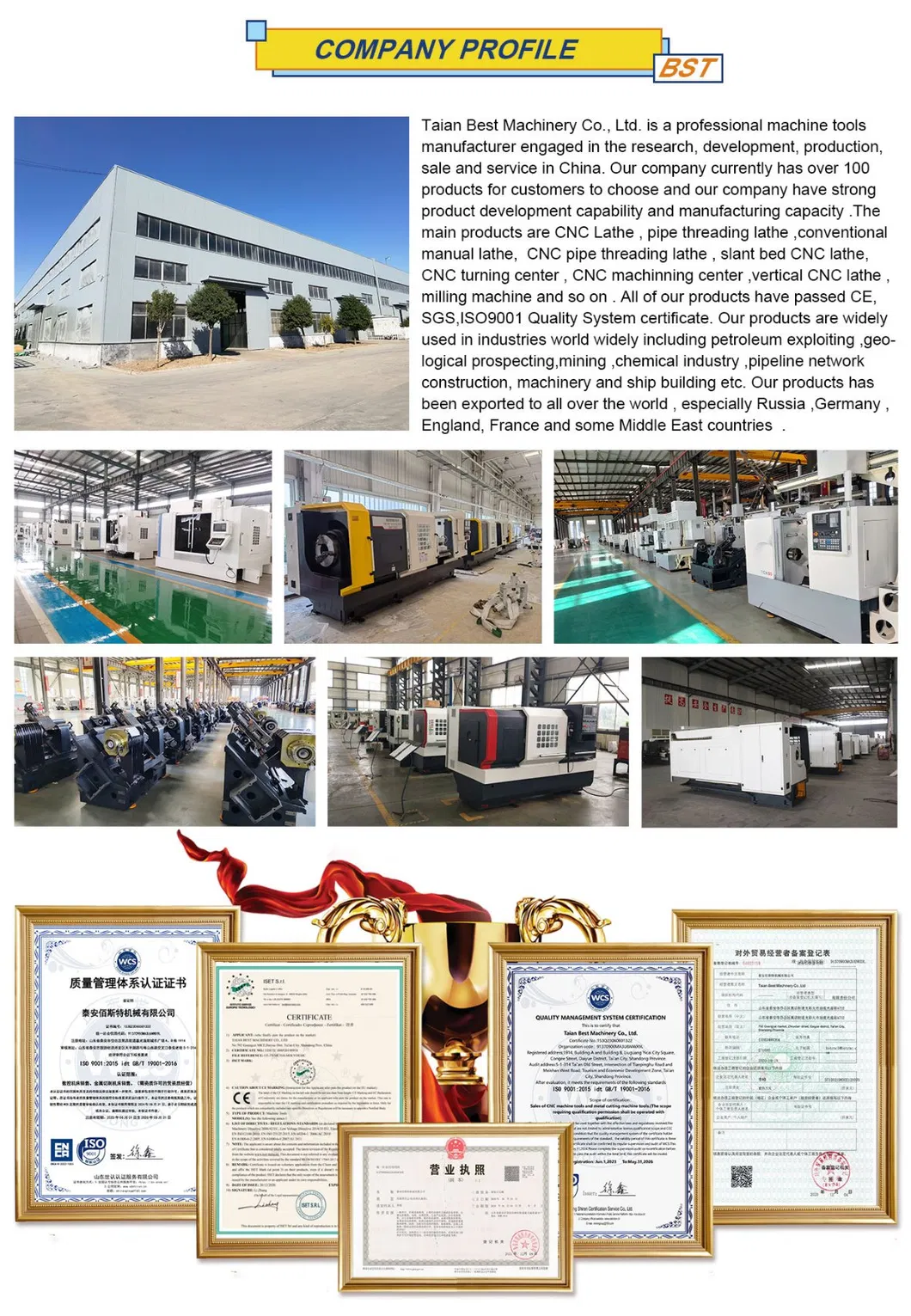

Production Facility Cooperation Network Process Workflow

Frequently Asked Questions

What materials can the VMC1060 process?
The VMC1060 is designed for metal-cutting and is highly effective for processing steel, aluminum, copper, and various alloy materials used in mechanical parts and molds.
What is the positioning accuracy of this machine?
The machine achieves a positioning accuracy of ±0.015/300mm and a repeatability of ±0.0075mm according to JIS standards.
Which CNC control systems are available?
The standard configuration includes the GSK system. However, we offer optional integration with Fanuc, Siemens, Mitsubishi, KND, and HNC systems based on customer preference.
Does the machine support complex 4-axis operations?
Yes, the VMC1060 can be equipped with an optional Taiwan TJR brand 4th axis to handle more complex multi-sided machining requirements.
What kind of maintenance does the VMC1060 require?
The machine features an Automatic Central Lubrication System that simplifies maintenance by ensuring all critical moving parts are consistently lubricated during operation.
What is the maximum workpiece weight the table can handle?
The worktable has a maximum load capacity of 800kg, making it suitable for a wide range of medium to heavy-duty machining tasks.
