| Model NO. | HMDB | Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools | Movement Method | Linear Control |
| Control Method | Open-Loop Control | Numerical Control | CNC/MNC |
| Processing Precision | 0.01~0.02(mm) | Certification | GS, CE, RoHS, ISO 9001 |
| Structure | Horizontal CNC Machining Center with Atc | Core Advantage | Double Side Spindle Drilling Milling with Atc |
| Function | Double Ends Hole Drilling, Tapping, Face Milling | Automation | Support |
For Shaft Metal Drilling, Milling, and Tapping
- Customized Production Available!
| Project | Unit | Parameter |
|---|---|---|
| Workpiece Diameter | mm | 50~200 |
| Workpiece Length | mm | 500~1000/1500/2000/2500/3000/4000 |
| Process Details | - | Heavy milling, edge hole drilling, tapping, boring, turning |
| Axis Each Side | - | 3 |
| Tool Magazine | P | 16~32 |
| CNC Controller | - | Double channel (KND, GSK, FANUC, SIEMENS Optional) |
| Overall Machine Size | mm | 6400×2100×2600 |
| Overall Machine Weight | kg | 15000 |
| Total Power | kw | 60 |

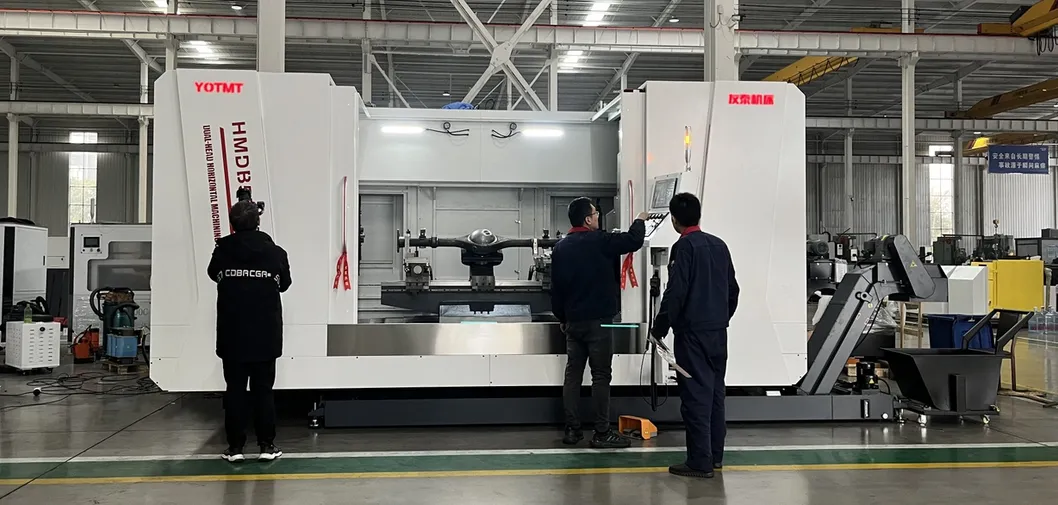

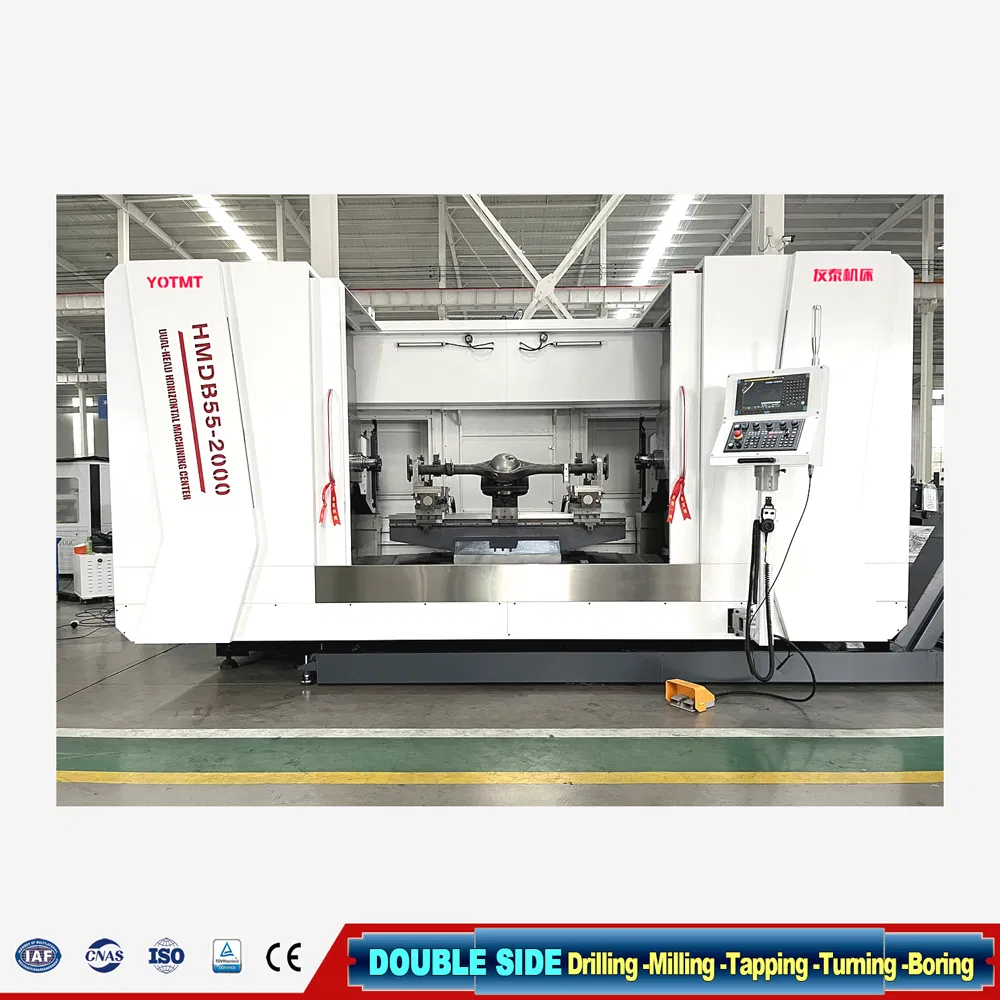

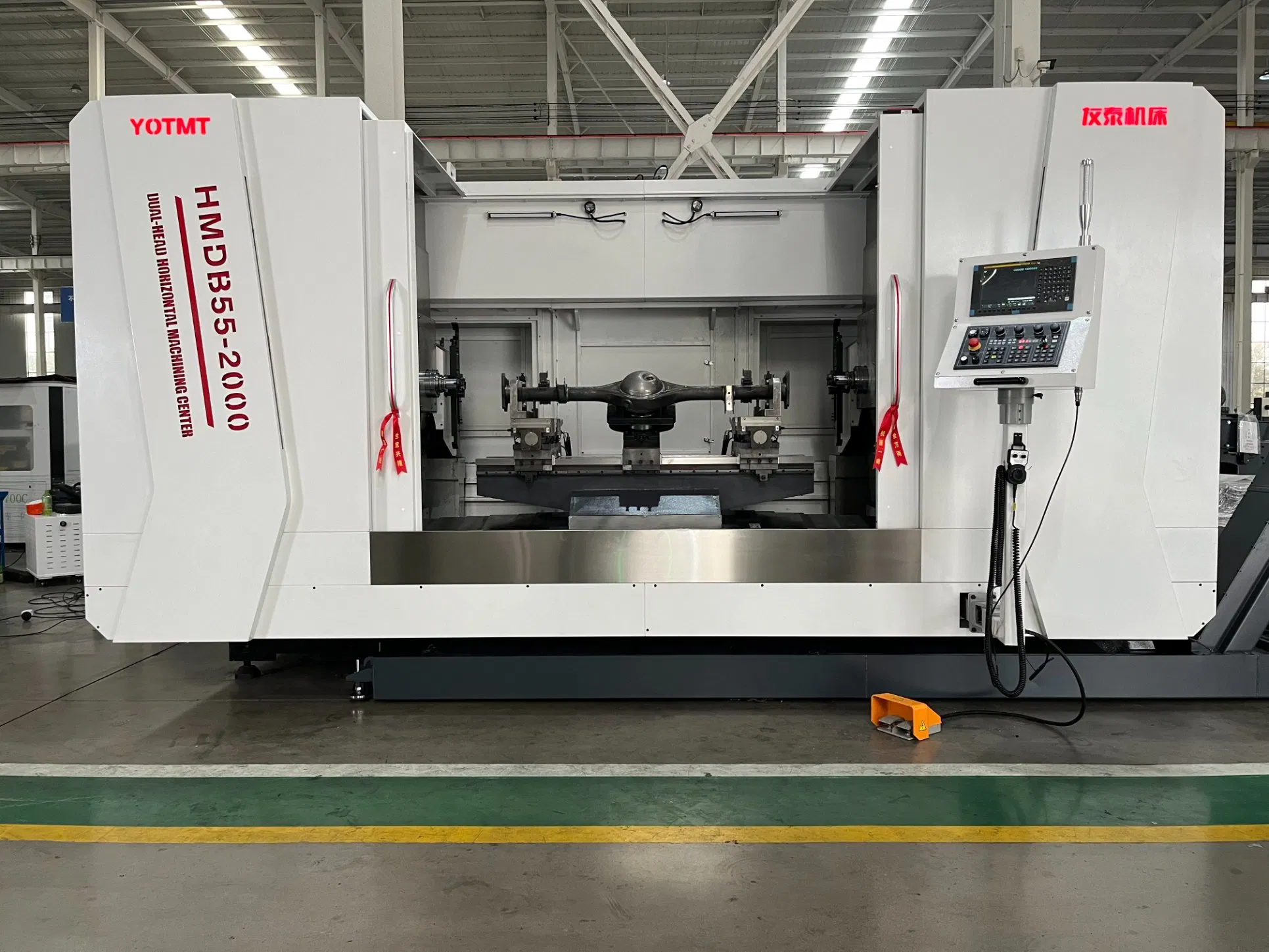

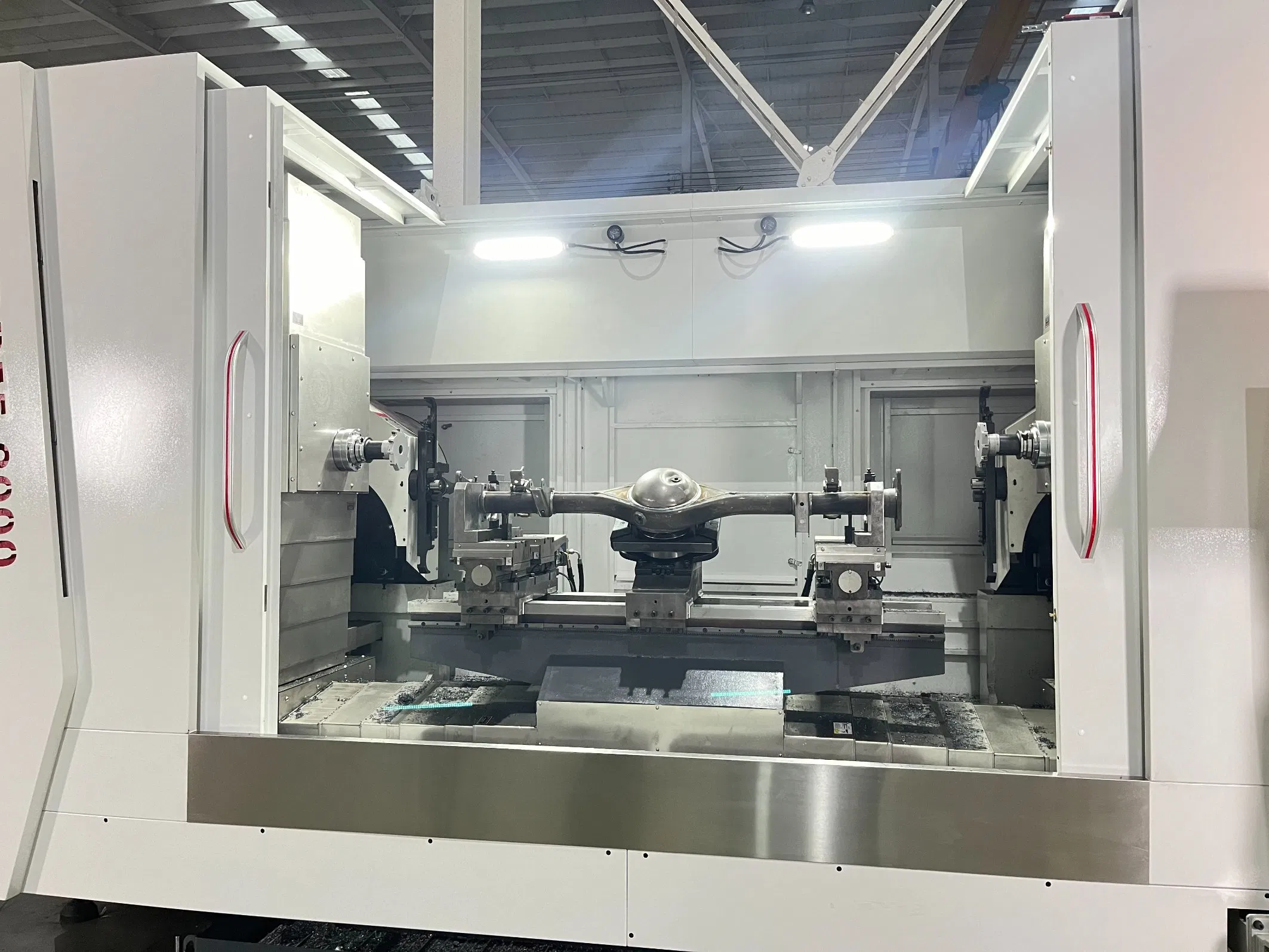

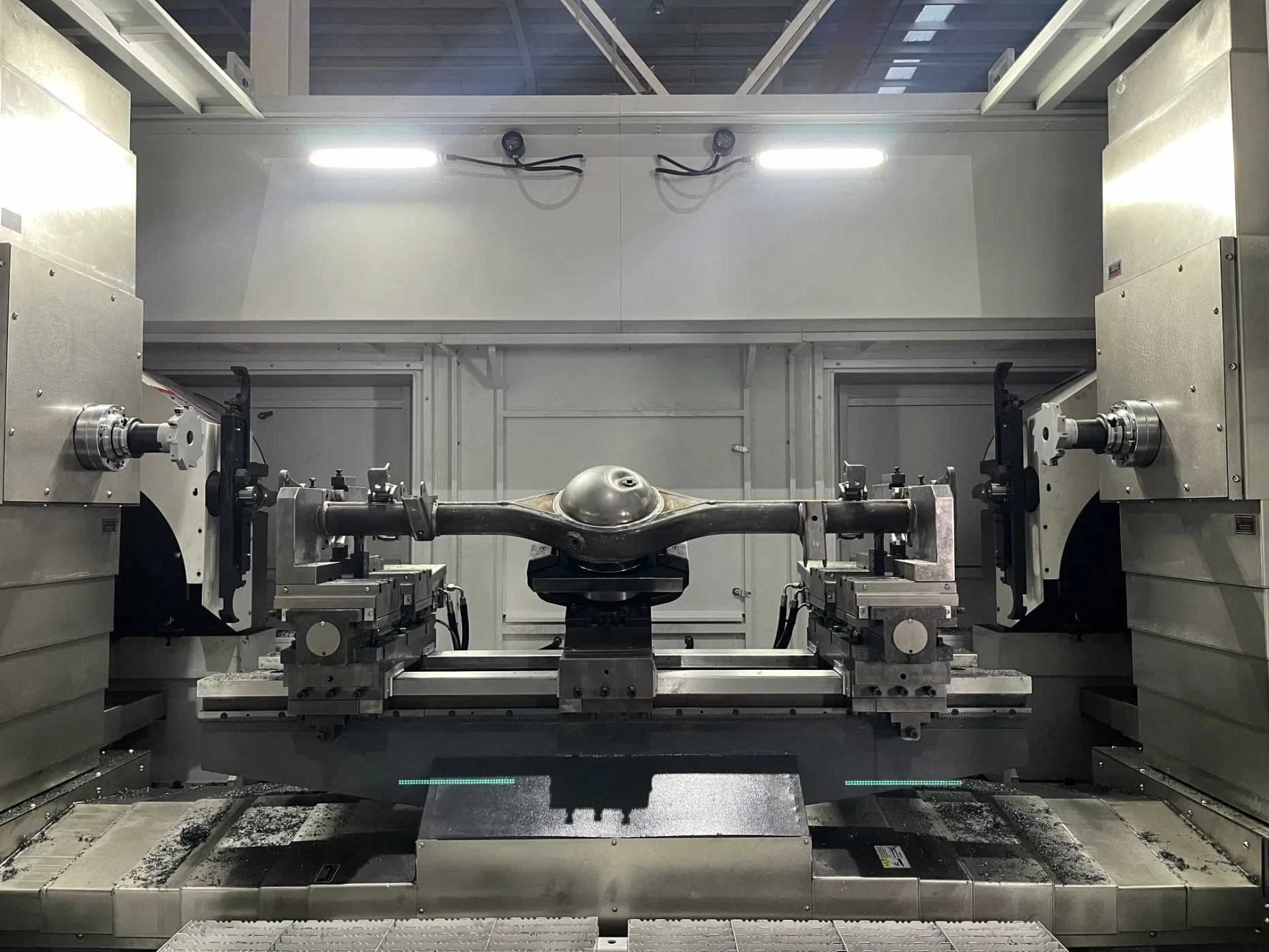

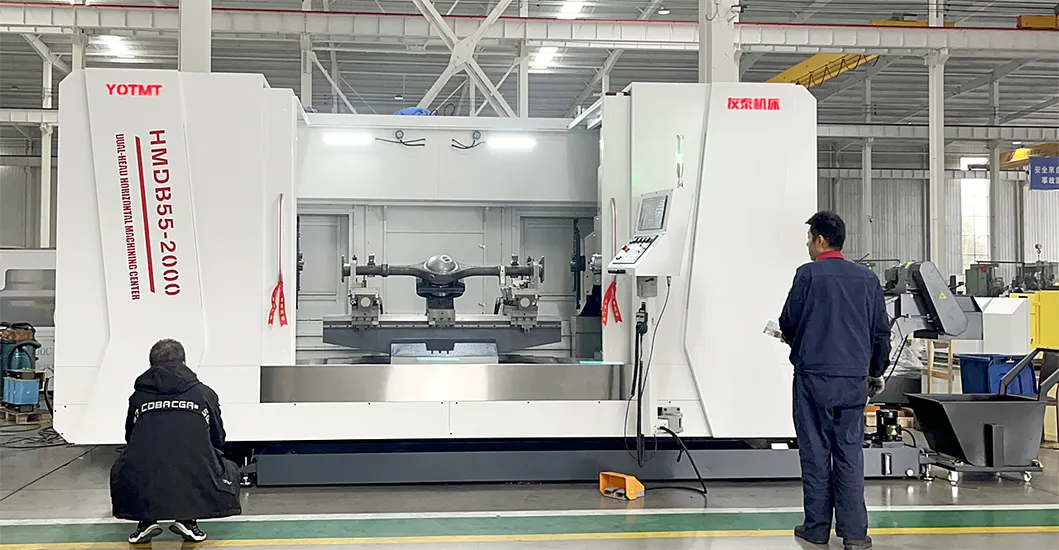

Featuring an innovative double-ended spindle design, our machine integrates a horizontal spindle box layout with three dynamic moving axes on each side, enabling the simultaneous execution of milling, drilling, and tapping on two sections of the workpiece.

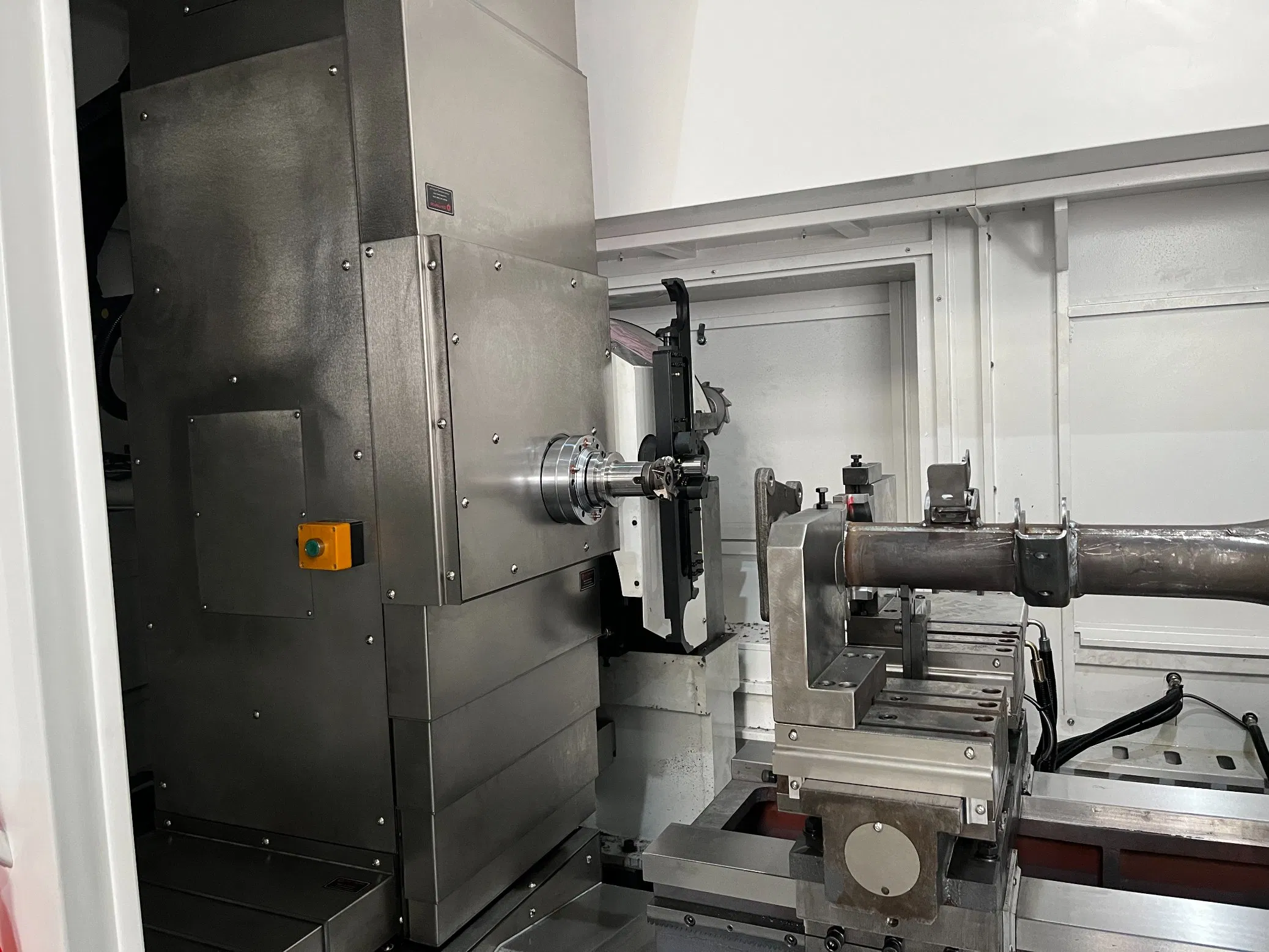

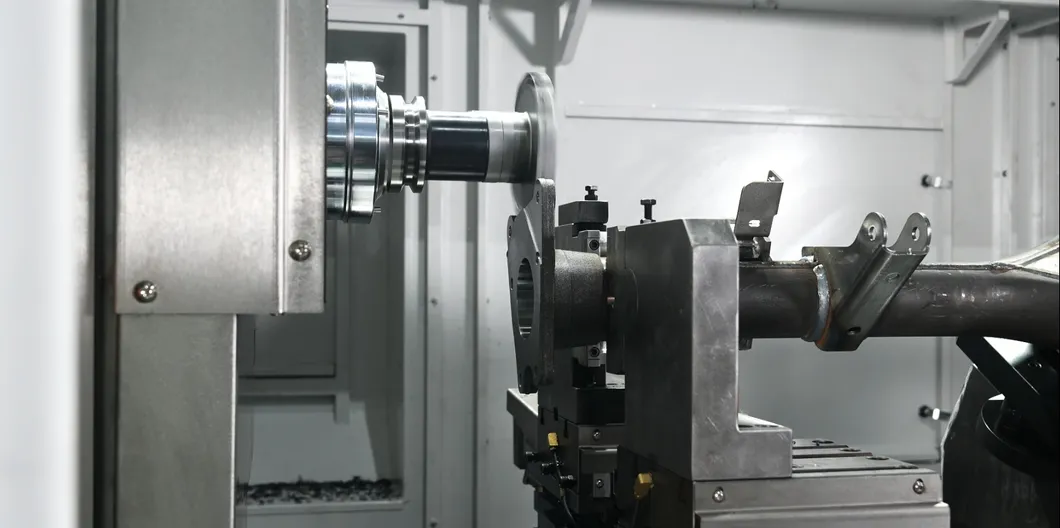

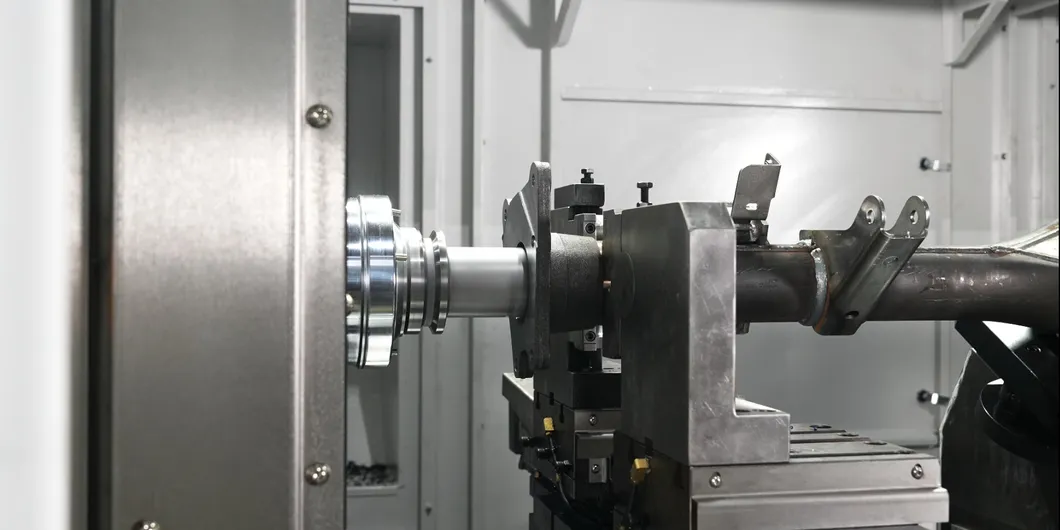

Experience precision with our dual-end face processing. Each side is equipped with a sophisticated automatic tool change (ATC) magazine, accommodating various drilling and tapping needs with ease and flexibility.

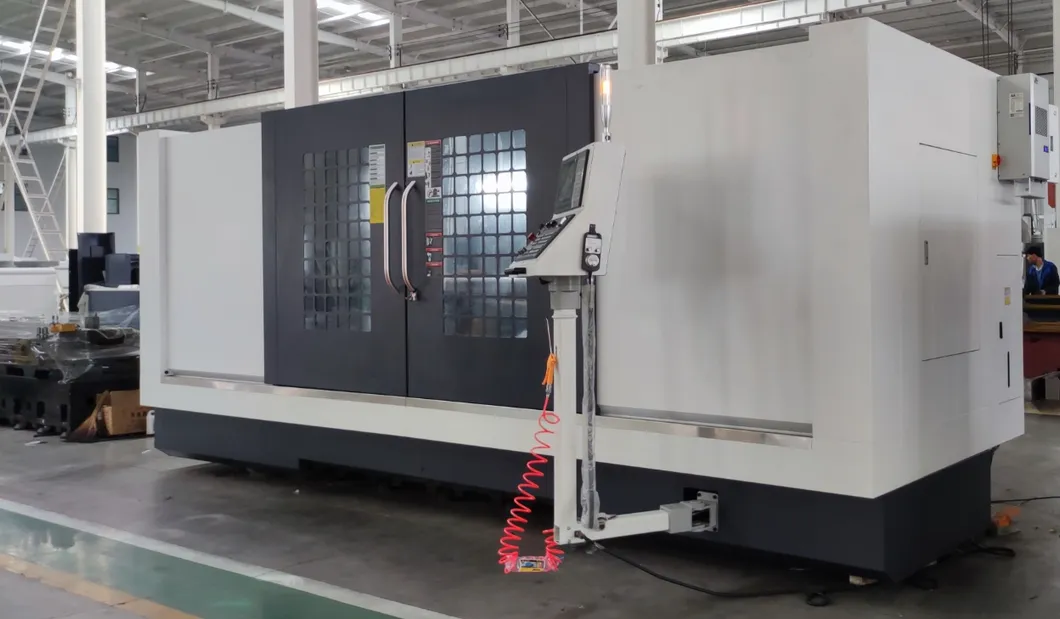

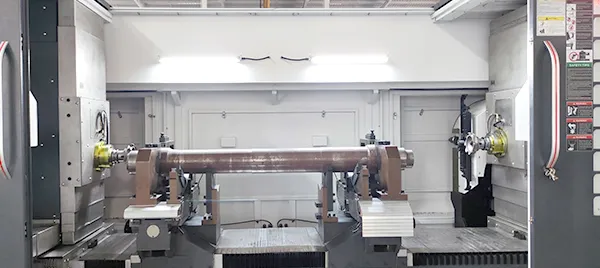

The machine boasts an integrated casting base and spindle box, complemented by an enclosed double-layer protective design. Featuring first-class quality accessories to ensure durability and reliability. Global brand accessories with customizable options available.

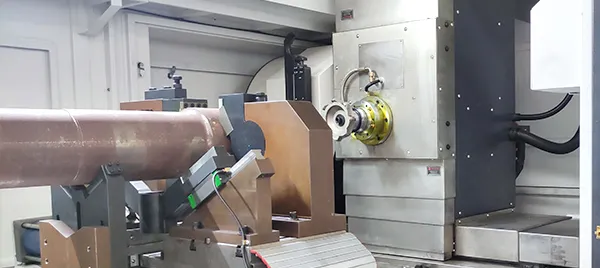

Utilize the convenient foot switch and manual trimmer, along with robust BT50 spindles. Incorporating a dual-channel CNC system for enhanced precision, coupled with an adjustable self-centering hydraulic clamp and high-pressure coolant for optimal performance.
Recognized as one of the foremost leaders in the manufacturing of CNC machine tools specifically designed for double-sided processing. Distinguished by an impressive array of hundreds of technical patents, specializing in advanced drilling, milling, and turning of shaft parts.

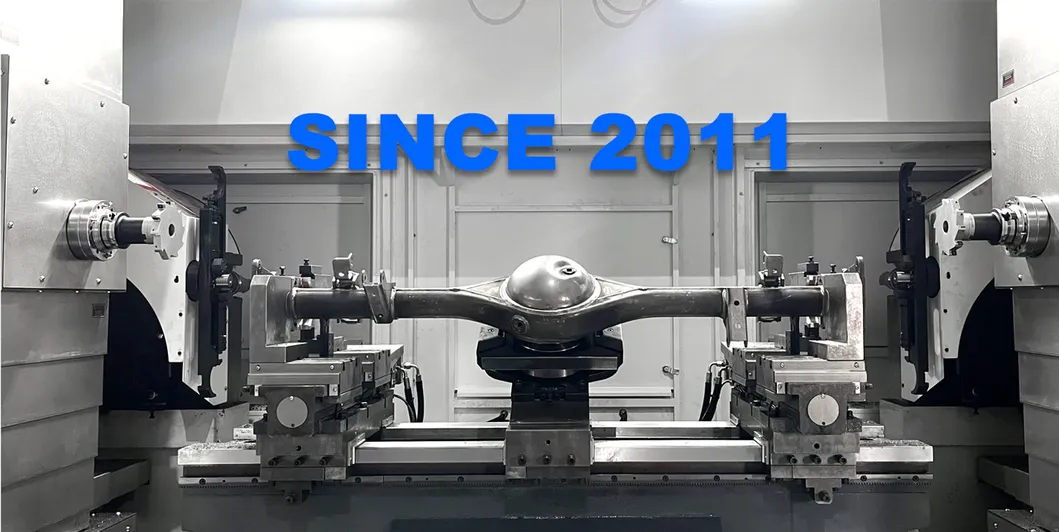

Founded in 2011, the facility has consistently led in the creation of innovative, high-efficiency machining equipment tailored for shaft parts. As a technology-centric manufacturer, we dedicate ourselves to the development of premium CNC machine tools and specialized equipment for a range of industrial applications.

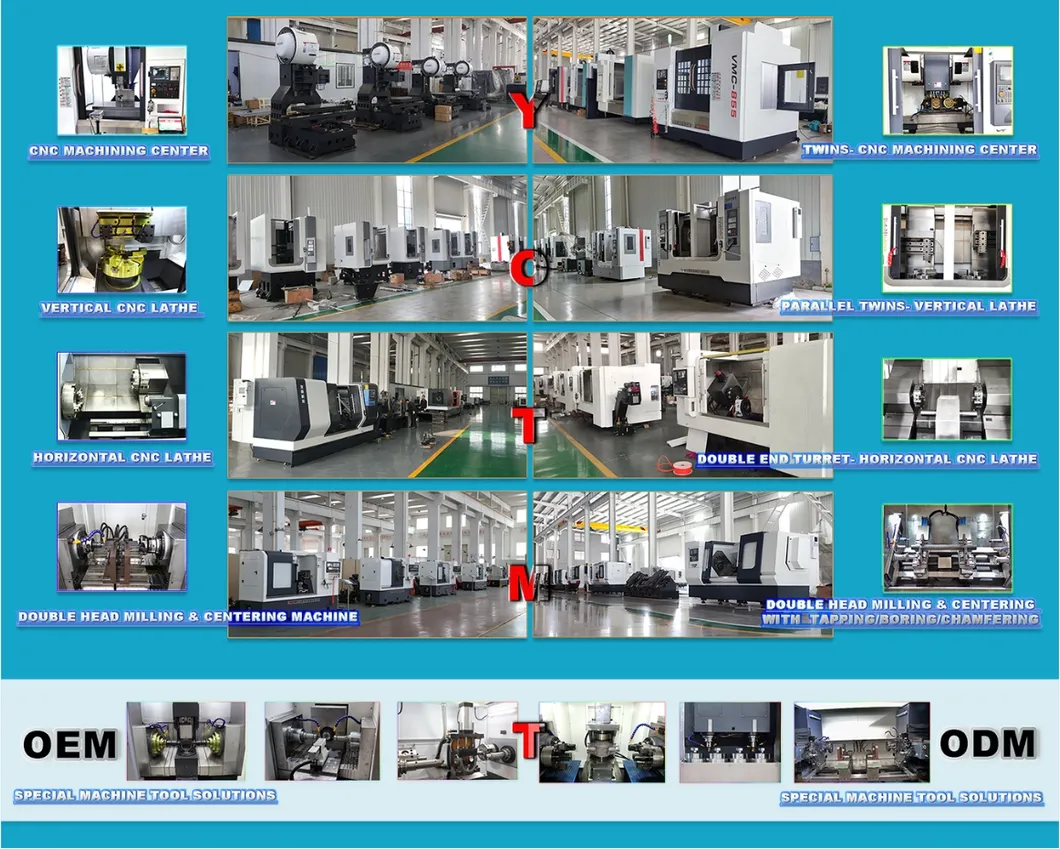

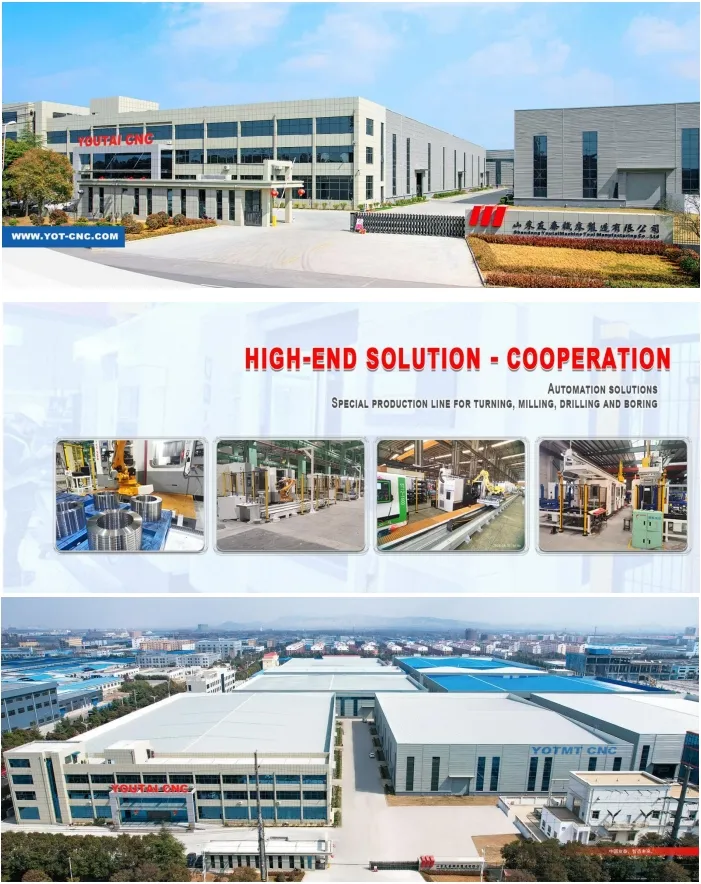

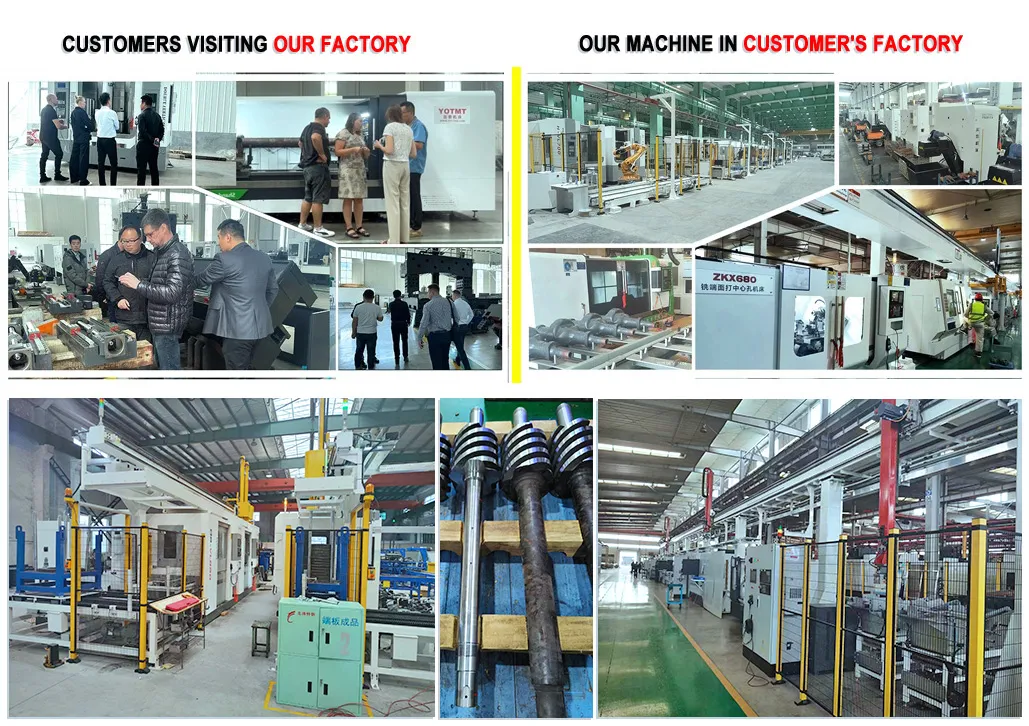

Our expansive site covers over 50 acres, featuring over 30,000 square meters of state-of-the-art workshops. With a suite of sophisticated precision machines, including advanced gantry machining centers and CNC guide rail grinders, we ensure our products meet the highest quality standards.

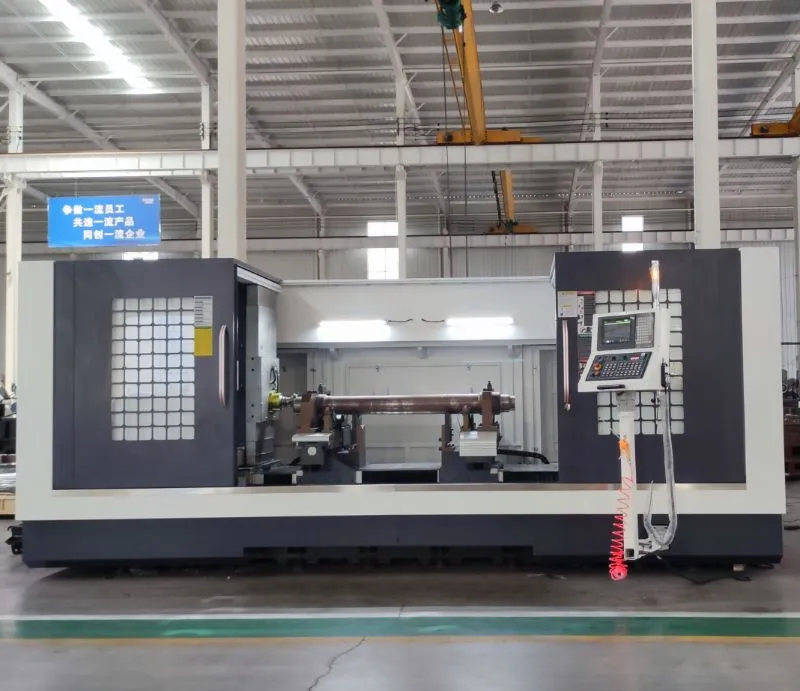

Double-Sided Machining Center

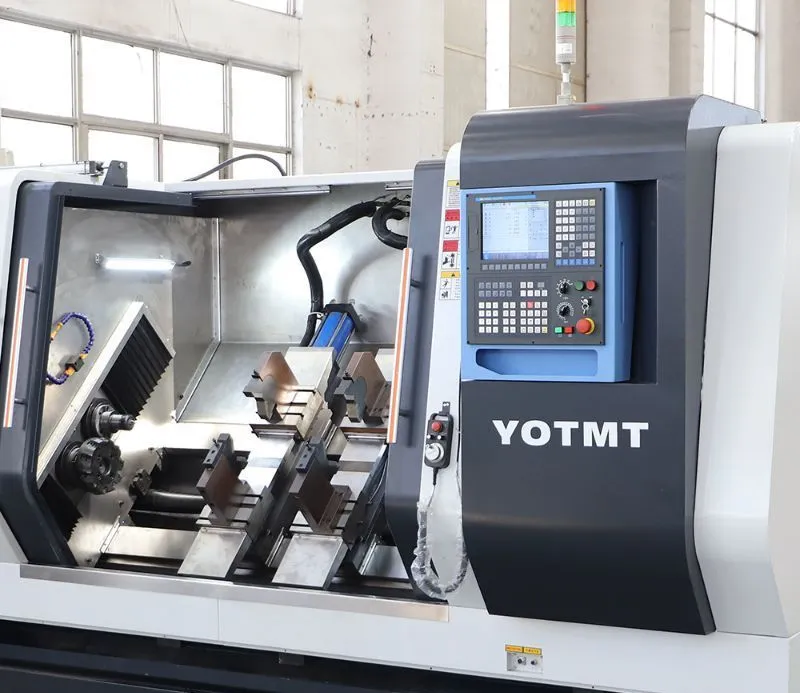

Precision Facing and Centering Machine

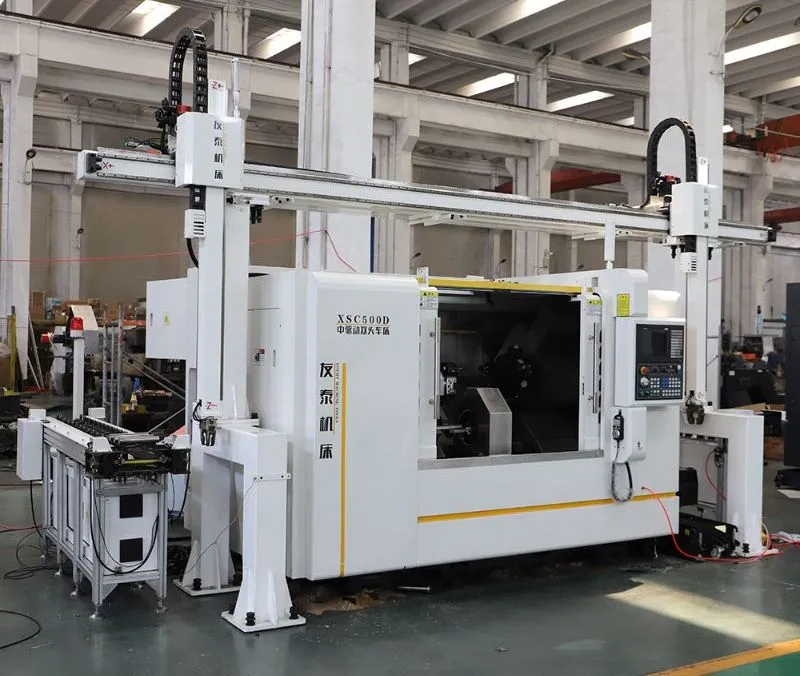

Advanced Double-Side Turning CNC Lathe
