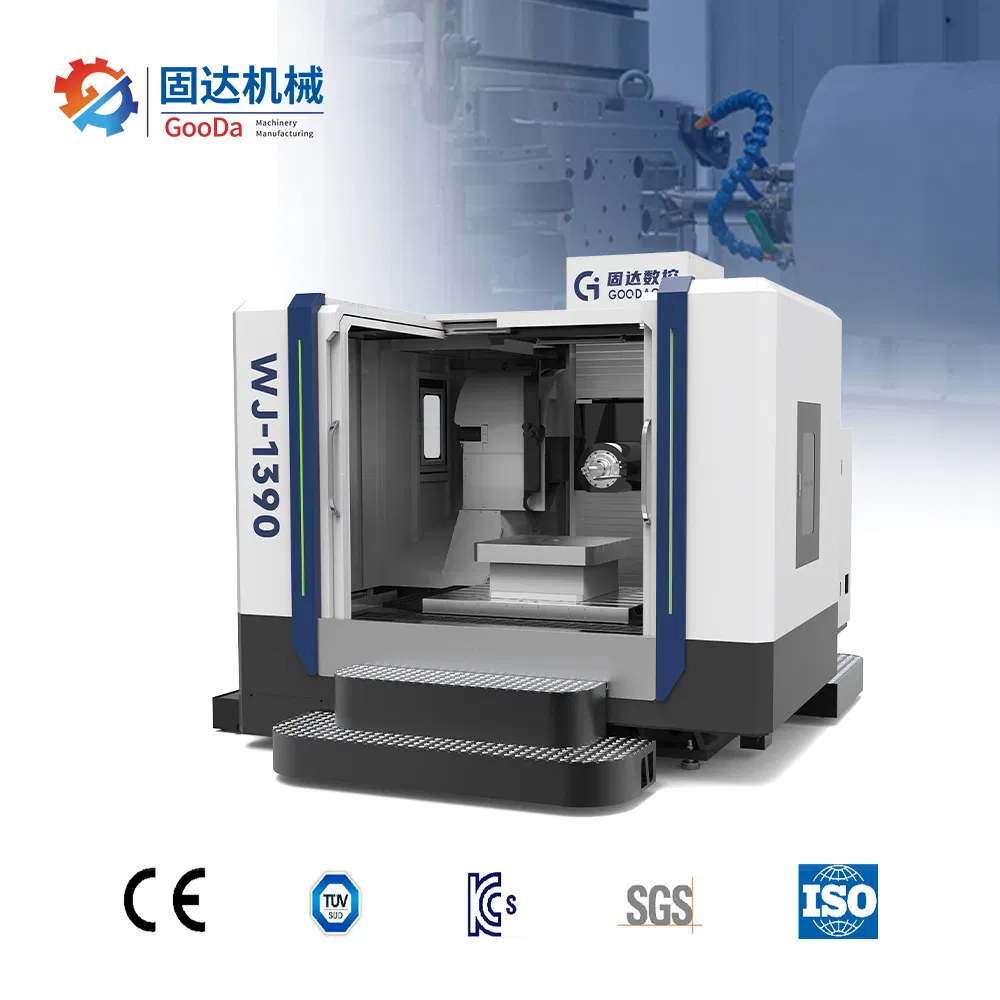

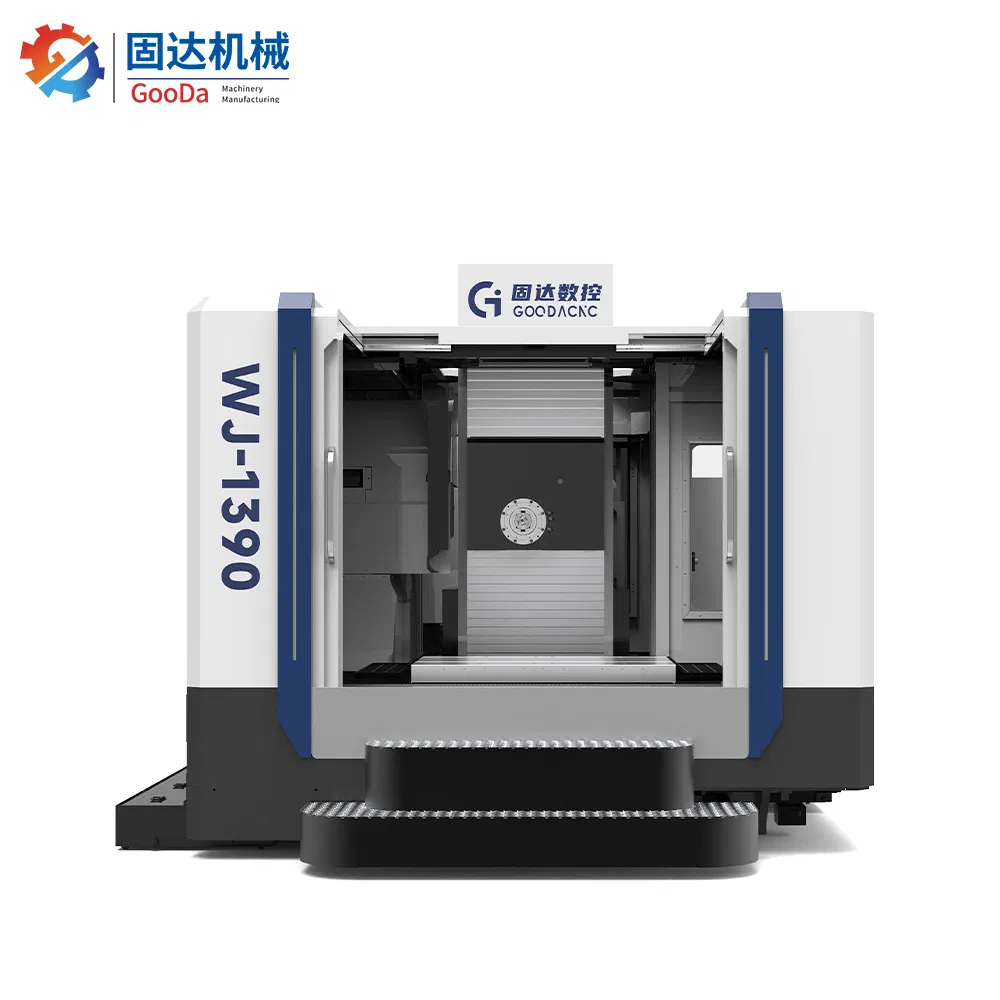

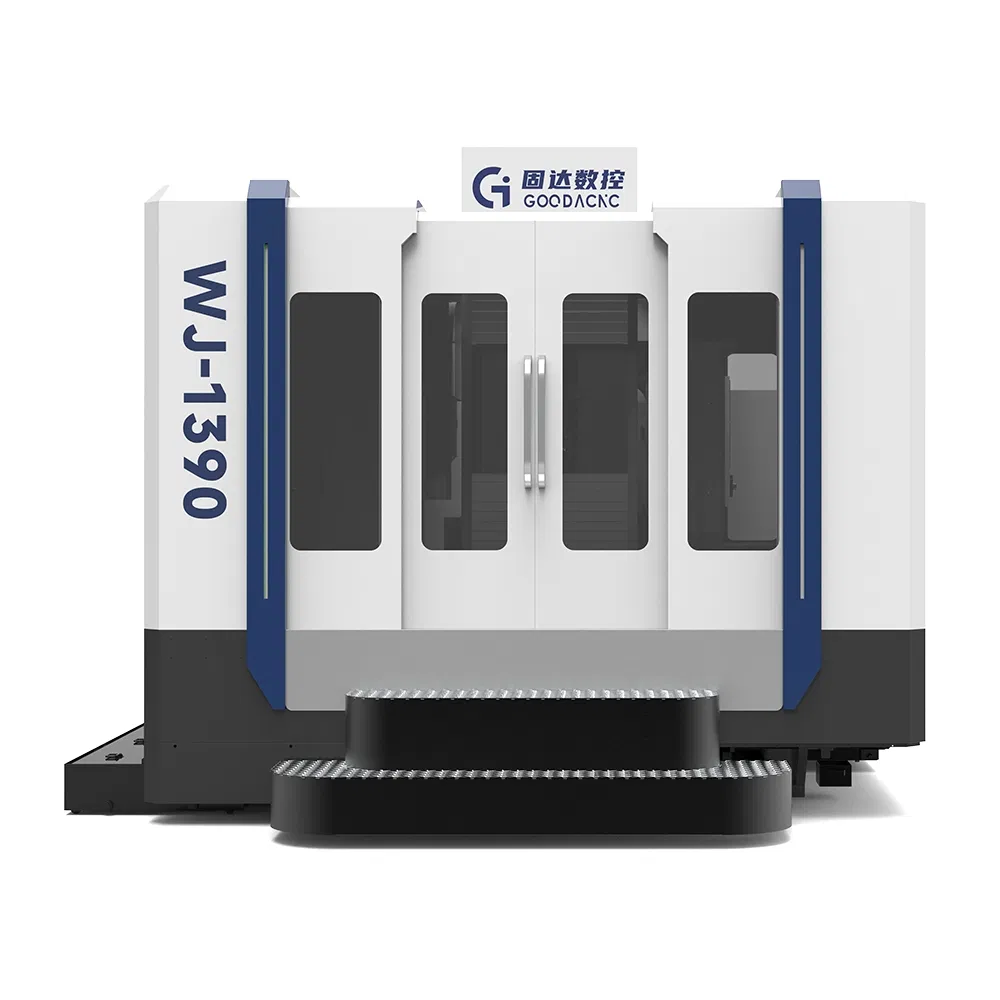

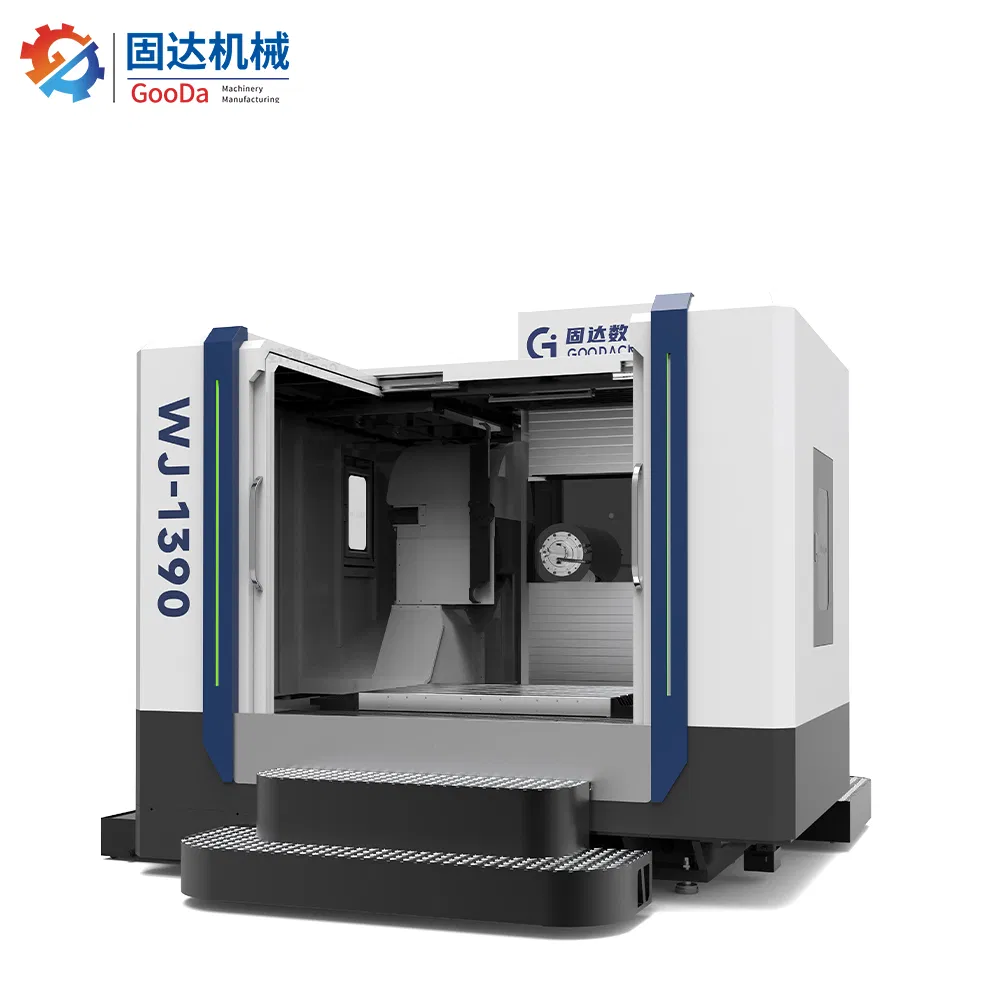

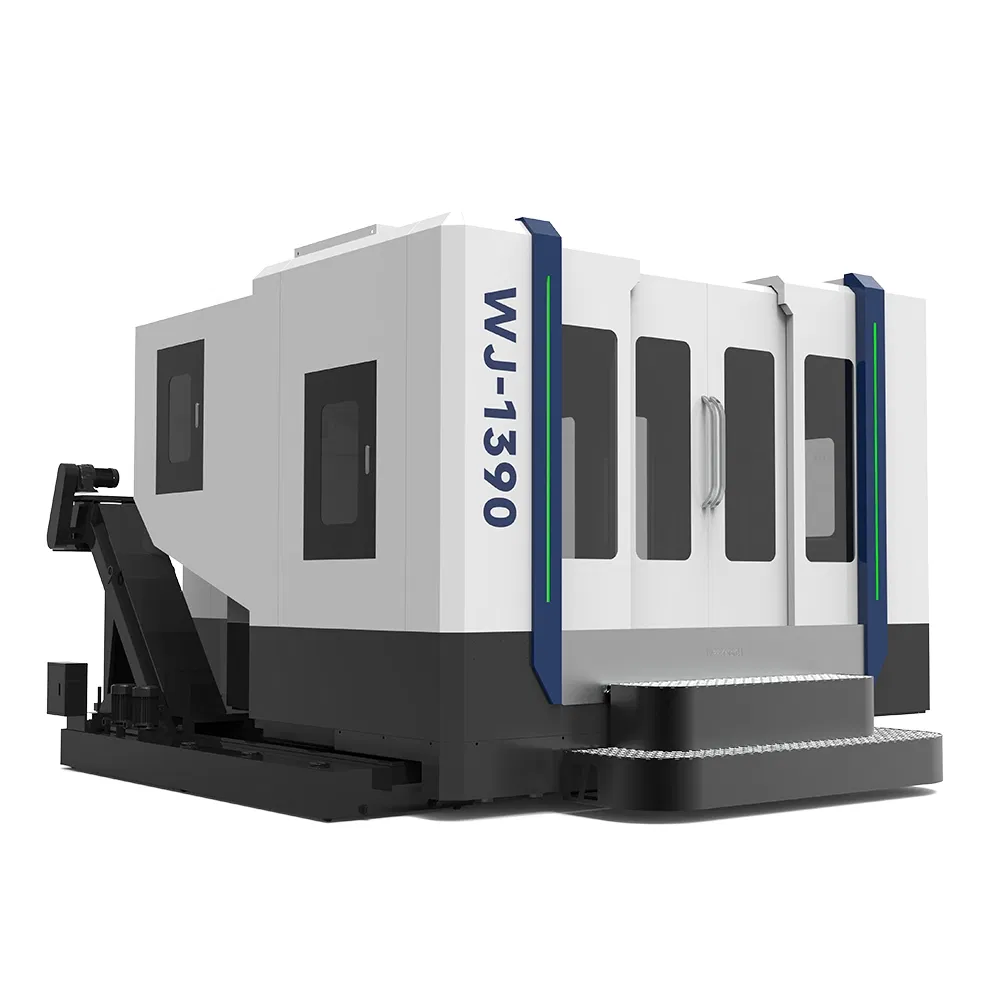

| Model NO. | WJ-1390 |
|---|---|
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools |

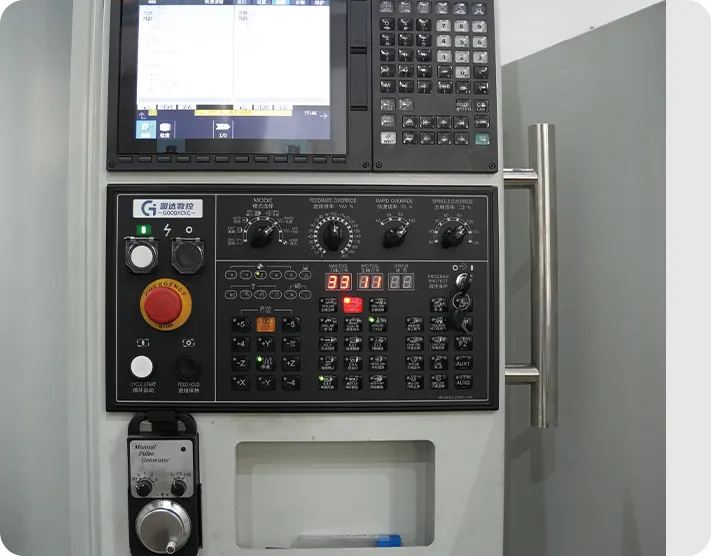

| Numerical Control | CNC/MNC |
| Performance Classification | High-End CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 |
| X/Y/Z Travel | 1300/900(or 1500)/700(or 850)mm |
| Spindle Taper | Bt50/φ220 |
| Spindle Motor Power | 15/18.5(Optional 22/26)Kw |

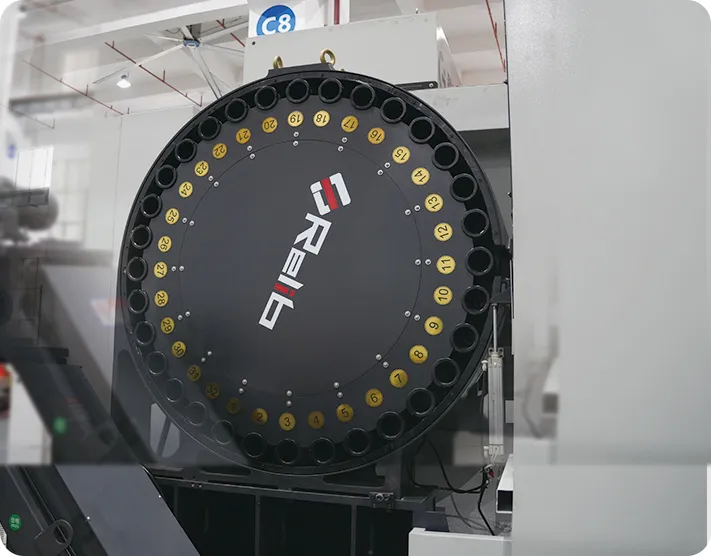

| Tool Capacity | 24t(or 32t) |
| Package Size | 390.00cm * 510.00cm * 360.00cm |
|---|---|
| Package Gross Weight | 12000.000kg |
| Transport Package | Steel Box |

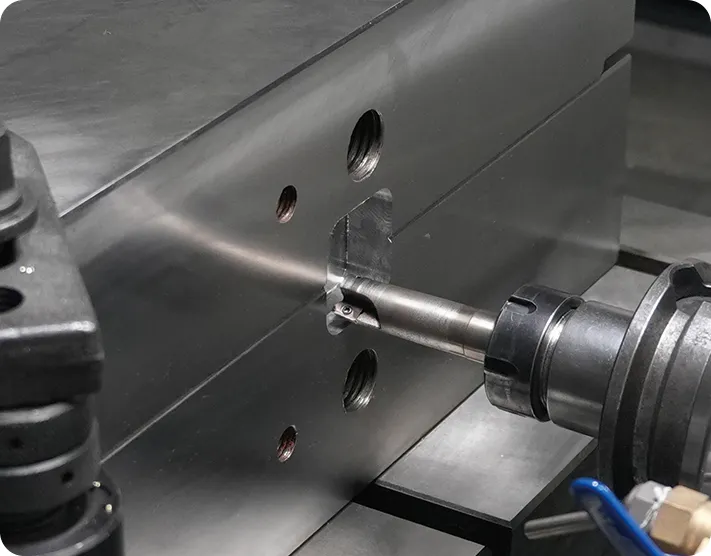

Heavy-duty Horizontal Machining Center series is a paragon of robust design centered around heavy-duty machining. This series elevates your production capabilities with enhanced functions for heavy cutting, substantial load endurance, and proficient roughing.
Experience unmatched rigidity and stability with the inverted 'T' type bed structure. It remarkably mitigates machine vibrations, prolonging tool life and ensuring smooth operation.

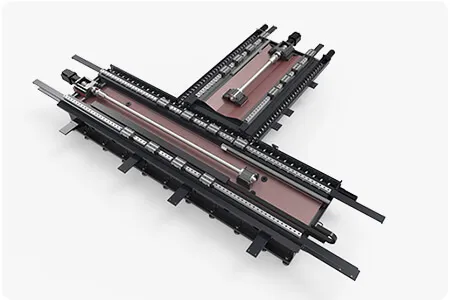

Dual extended heavy-duty 55# roller linear guides provide exceptional vibration resistance. The spindle box, enhanced with a nitrogen balance system, boosts dynamic response speed.

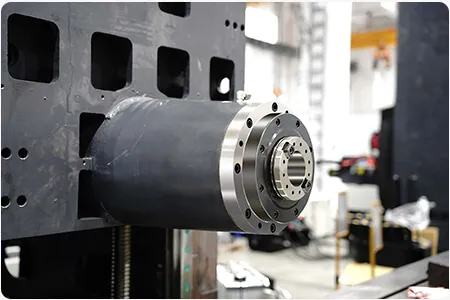

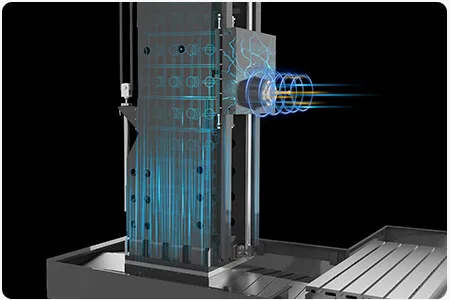

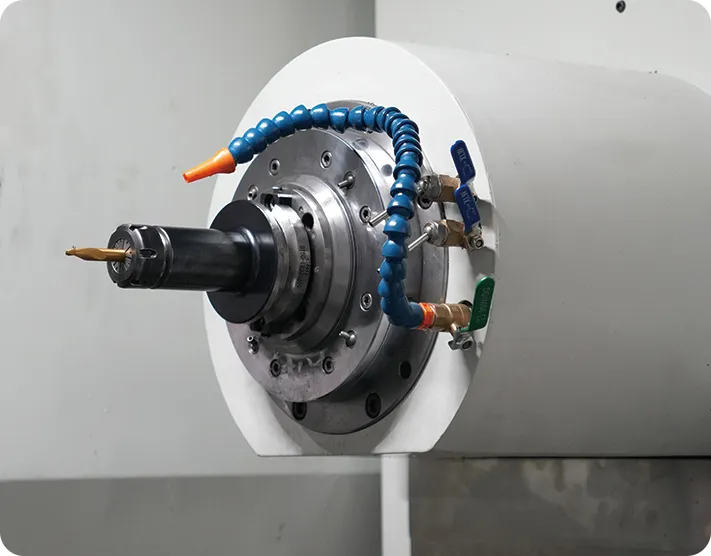

Increased spindle sleeve diameter optimizes cutting rigidity. RPMs reaching up to 3000rpm/6000rpm, supported by a cooling system for long-term stability.

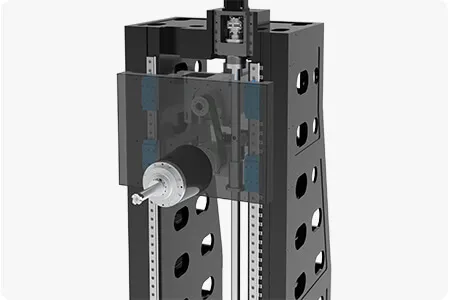

The Y-axis features a dual-layer wall moving column structure, crafted from premium HT-300 cast iron with secondary annealing, guaranteeing resistance to deformation and superior accuracy.
| Category | Attribute | Value | Unit |
|---|---|---|---|

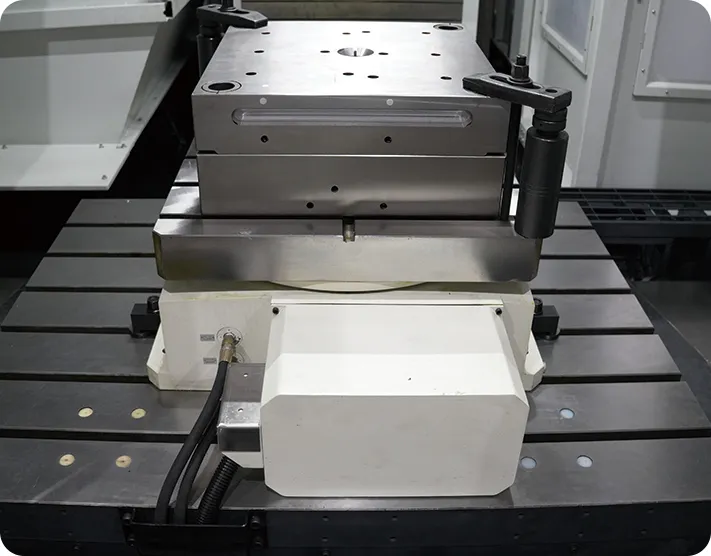

| Worktable | Size | 1000×1360 | mm |
| Max Load | 5000 | kg | |
| Travel | X axis | 1300 | mm |
| Y axis | 900(or 1500) | mm | |
| Z axis | 700(or 850) | mm | |
| Spindle | Taper | BT50/Φ220 | - |
| Max Speed | 2500/4000/6000 | rpm | |
| Feed | Rapid Move (X/Y/Z) | 12/12/12 | m/min |
| Accuracy | Positioning | 0.02/1000 | mm |
