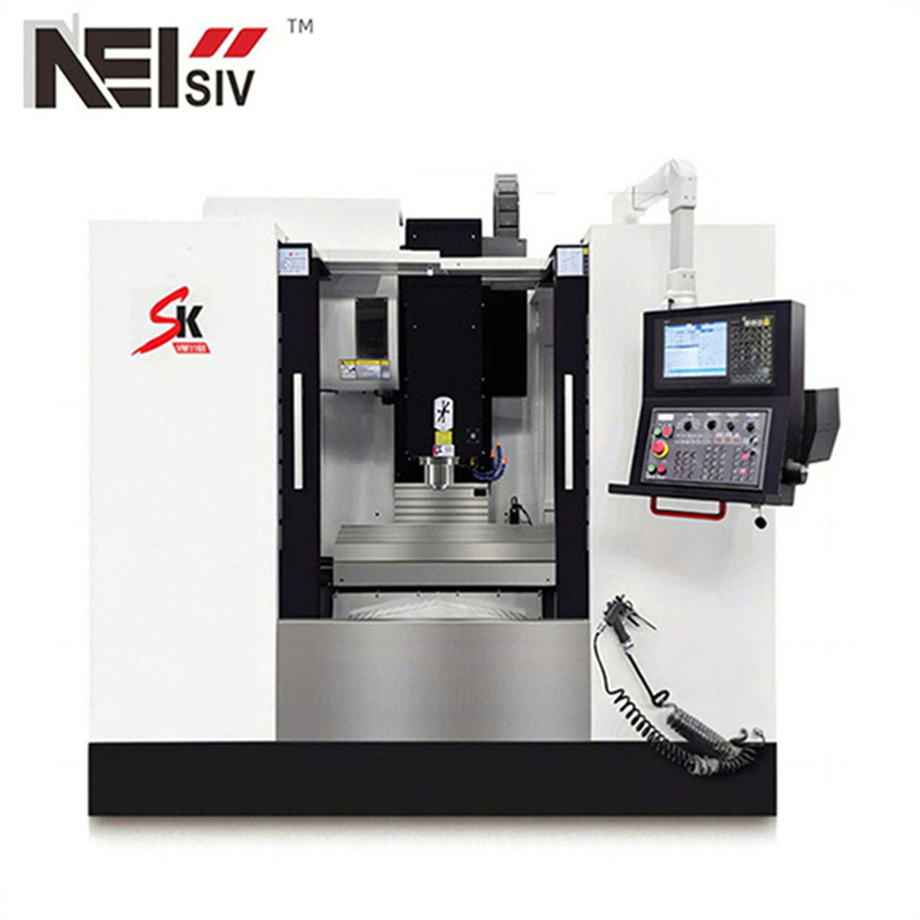

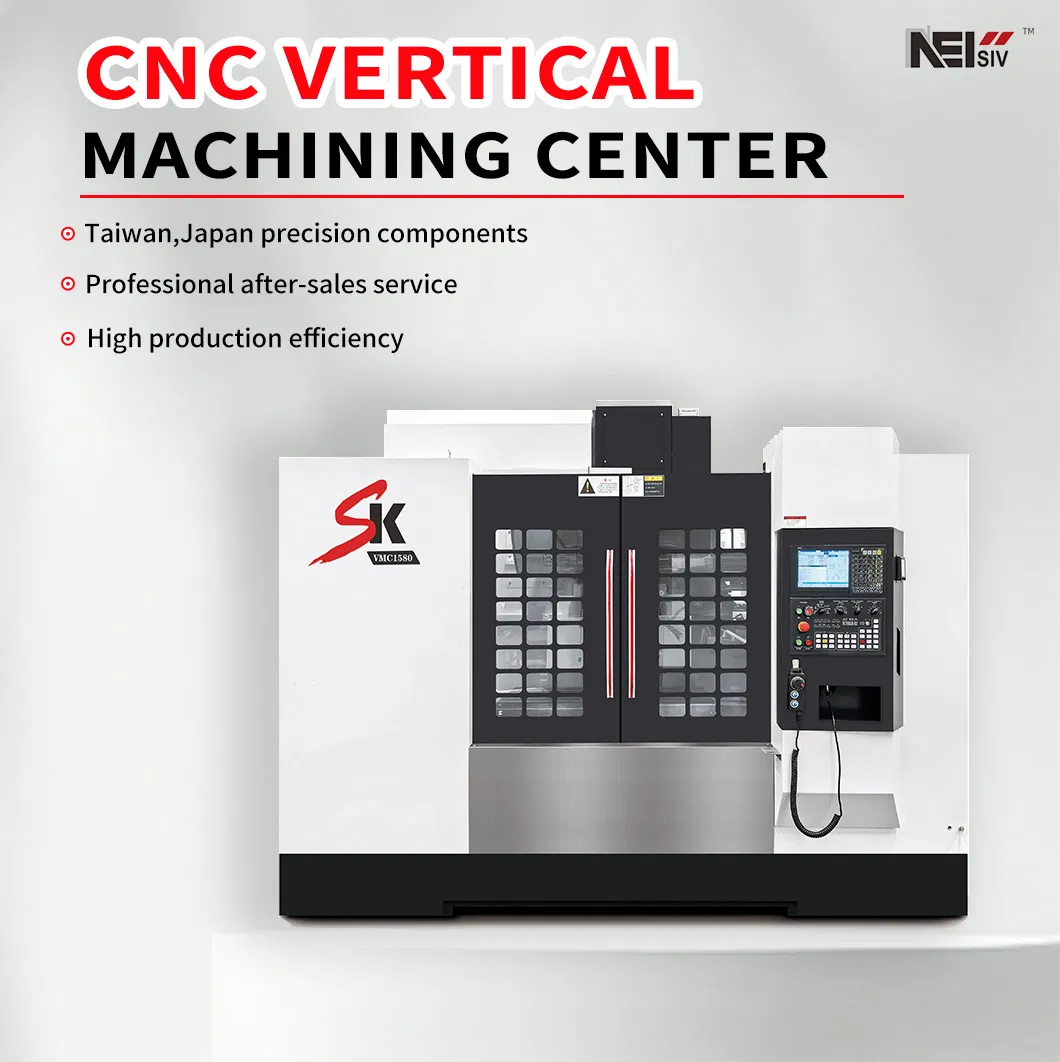

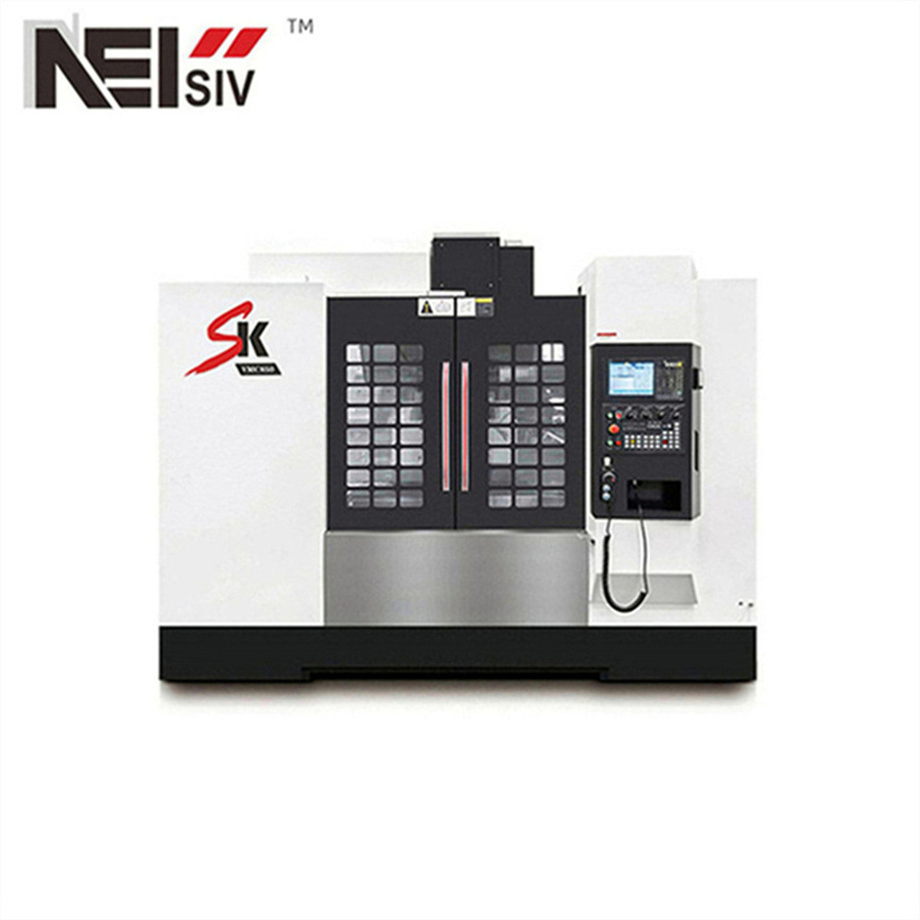

VMC CNC Machining Center Characteristics:

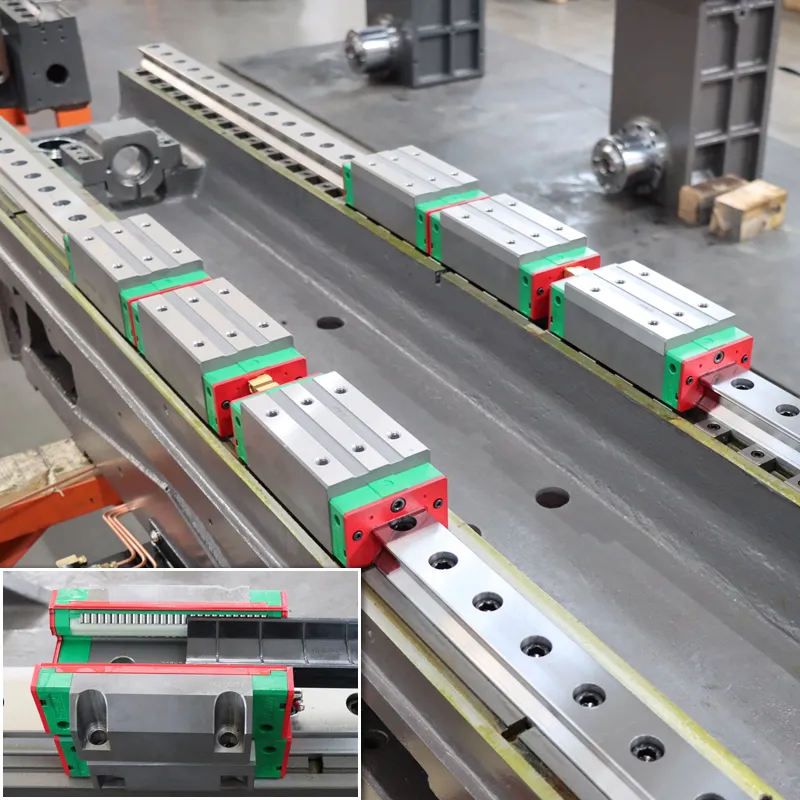

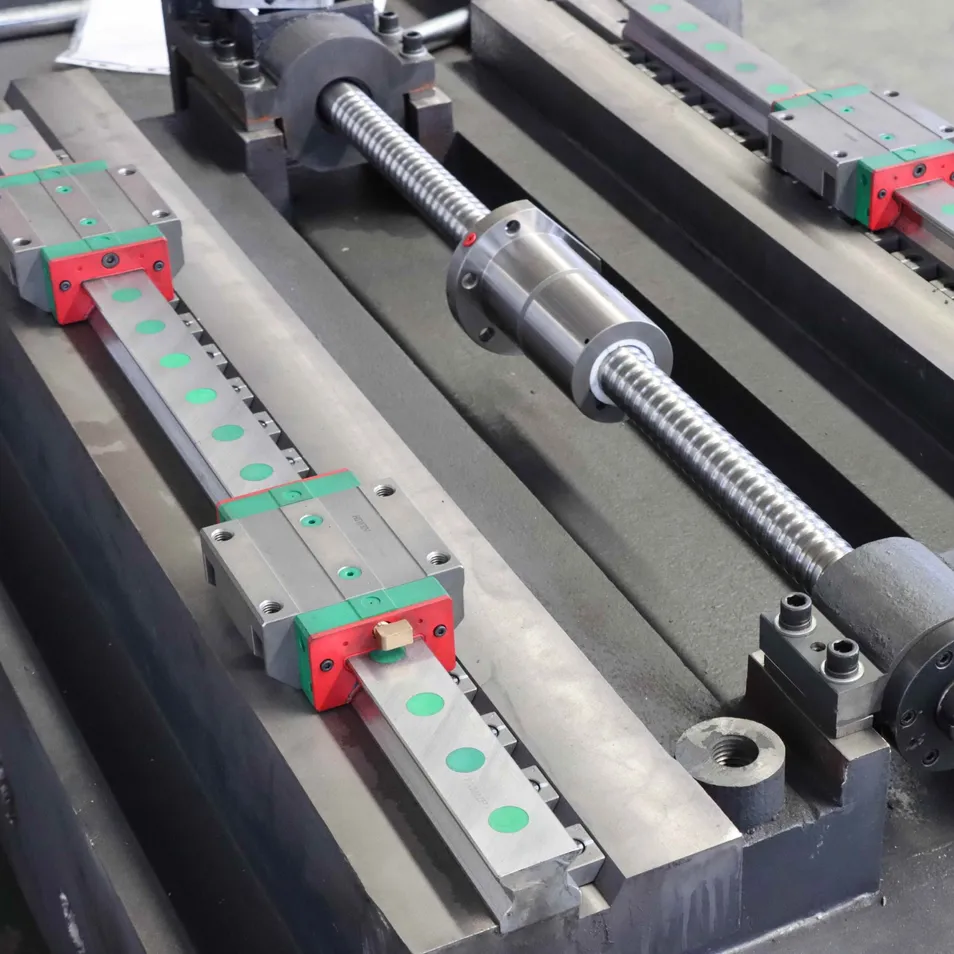

The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit. The heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.

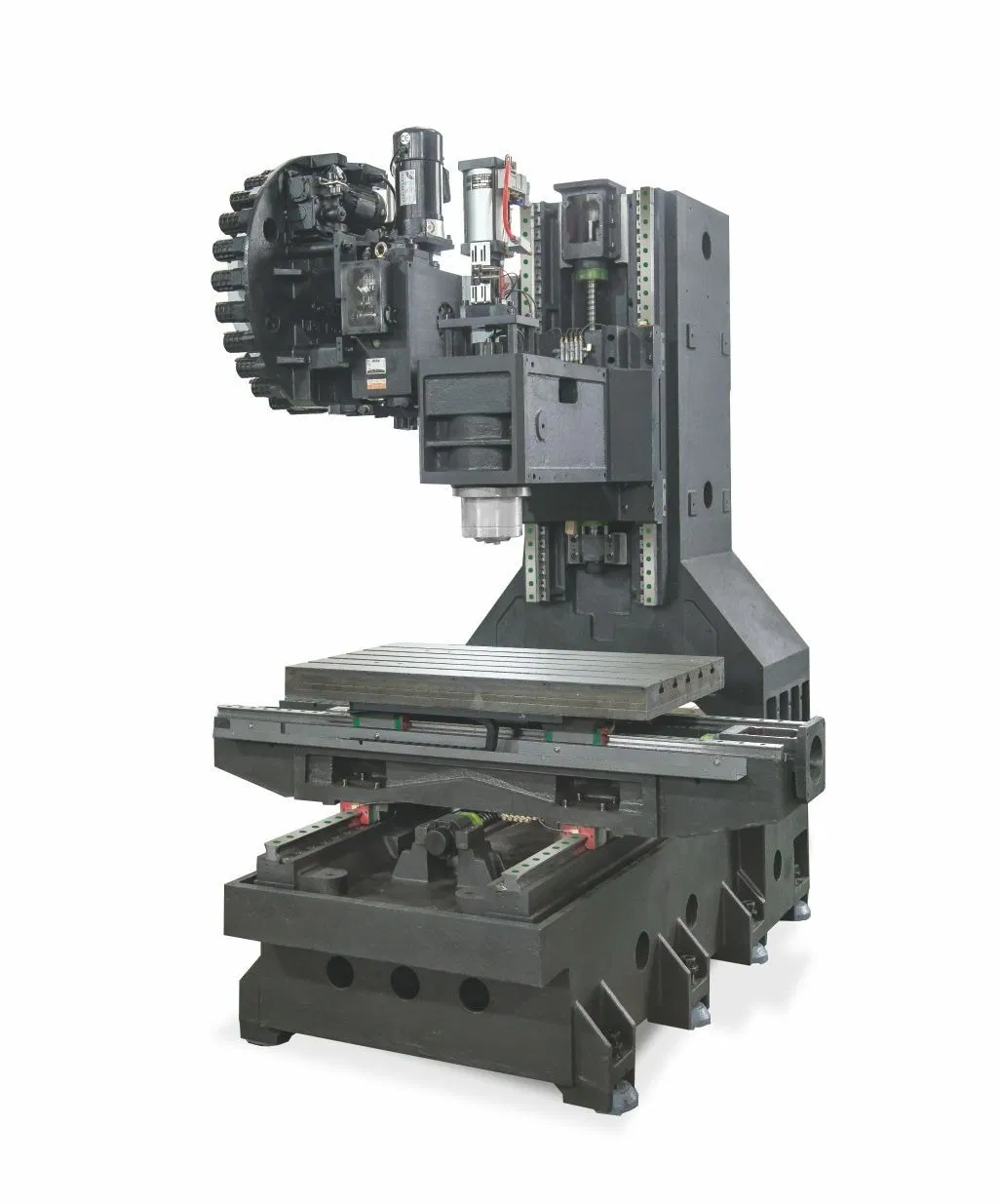

MACHINE CONSTRUCT

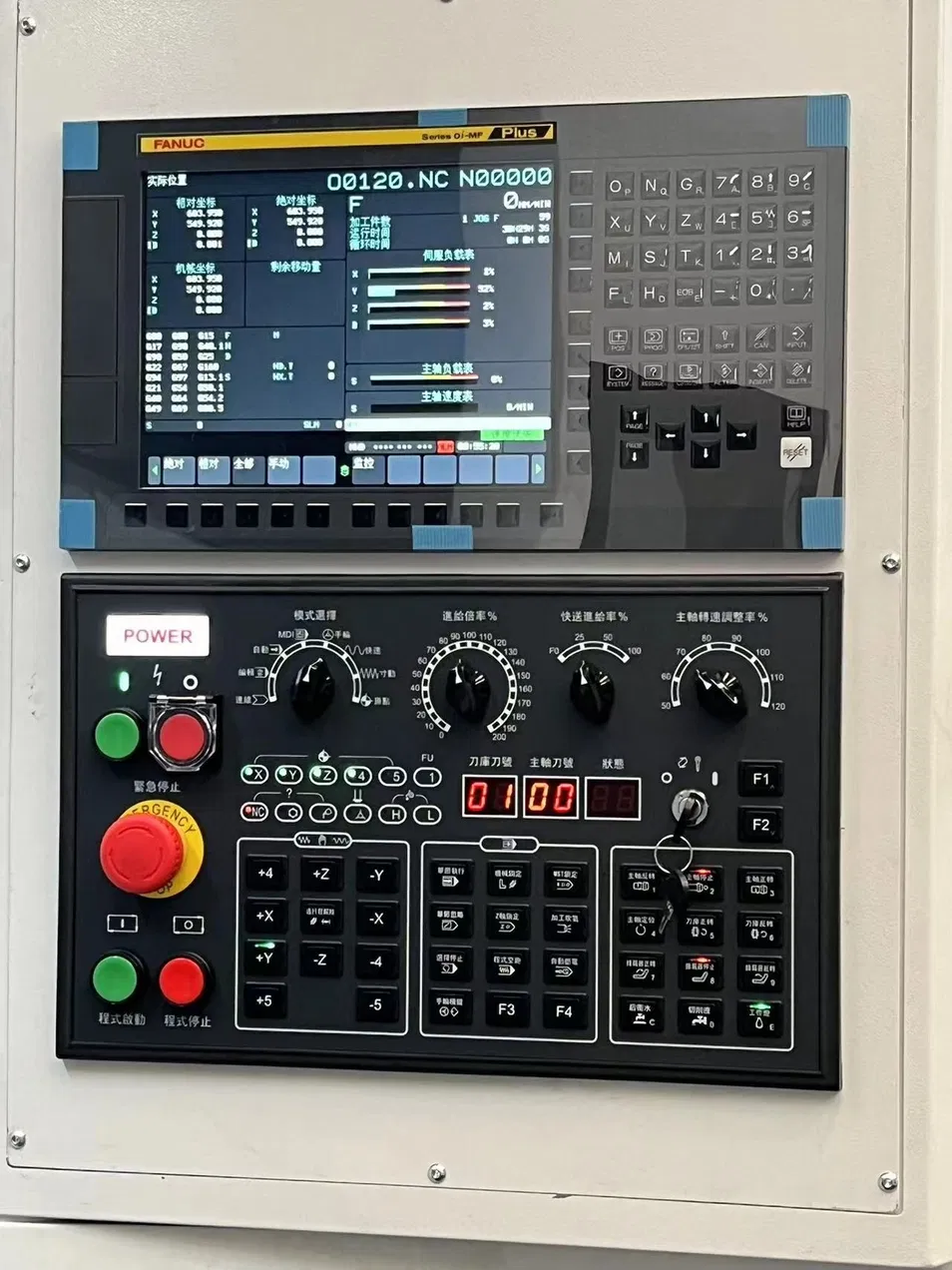

CONTROL SYSTEM

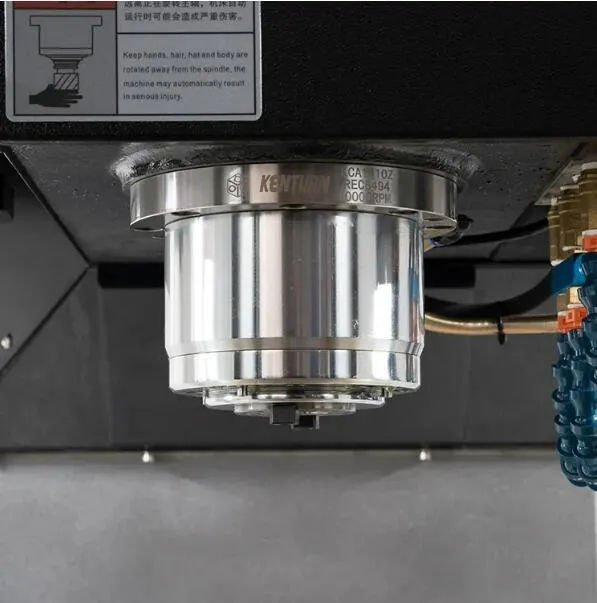

TAIWAN PRECISION SPINDLE
Taiwan spindle BT40 8000rpm with ring cooling. Passed dynamic balance ISO rating test.

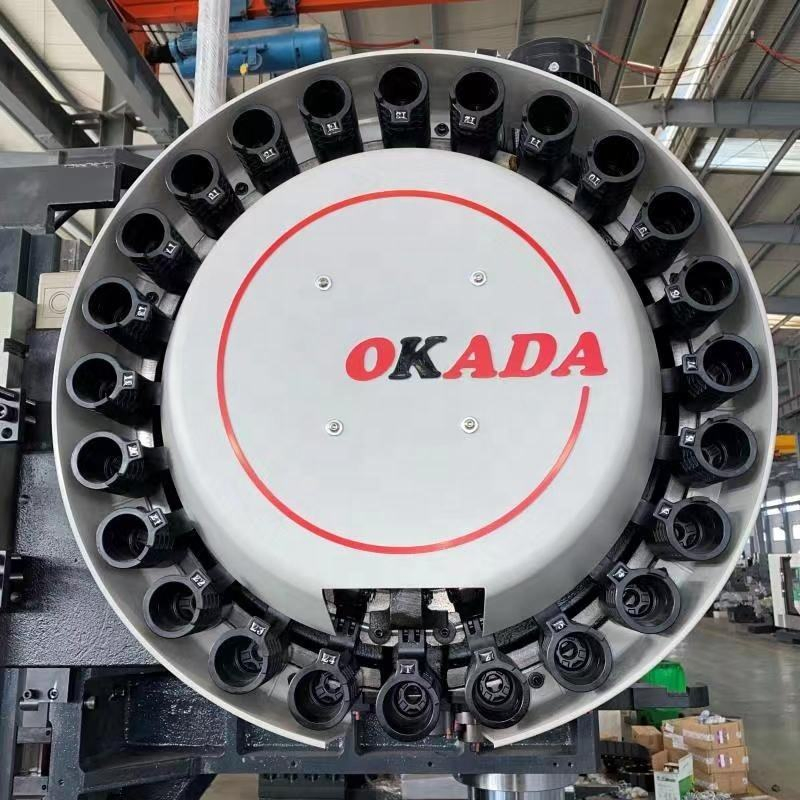

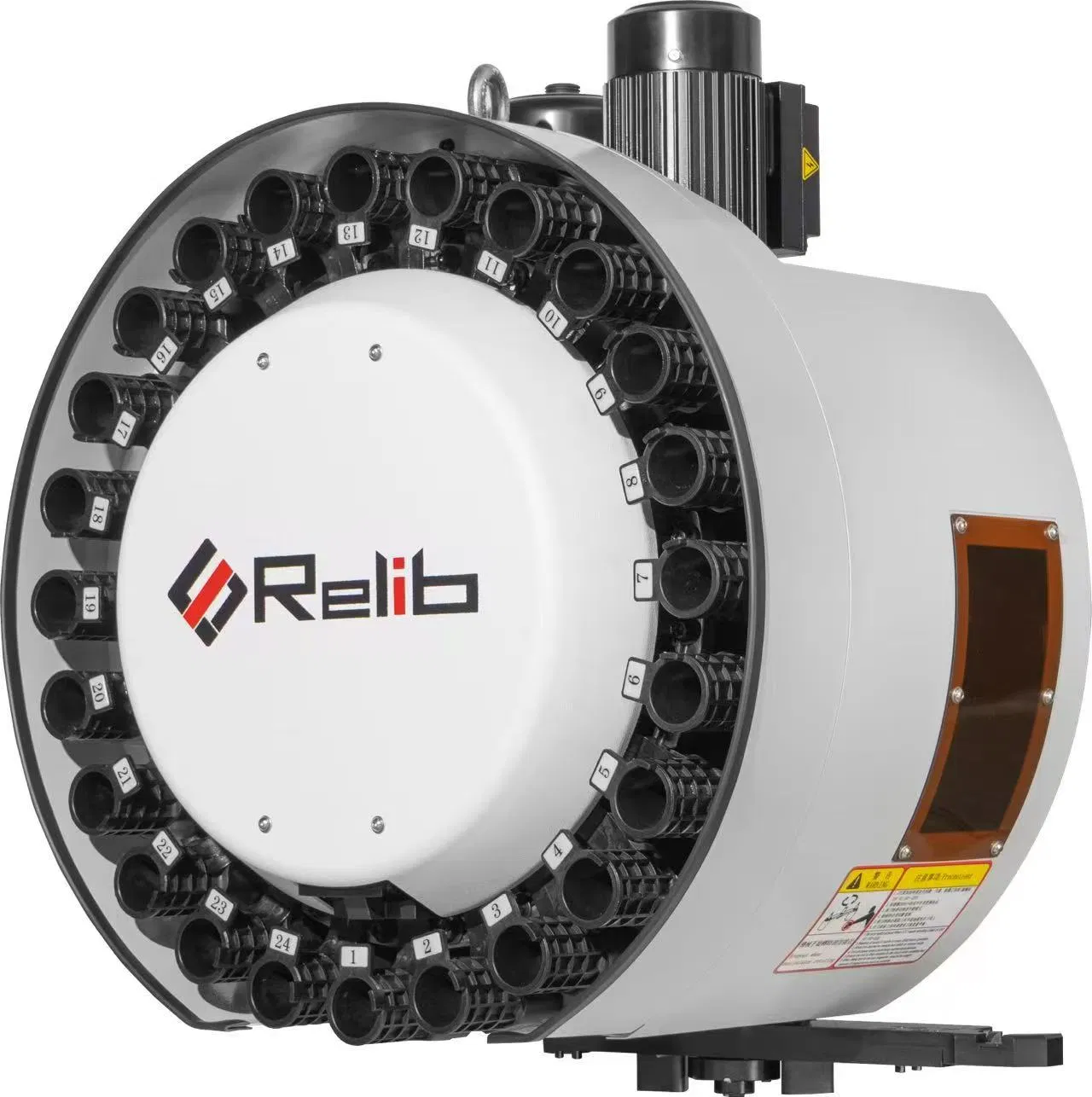

24T AUTOMATIC TOOL CHANGER
Fully Enclosed Protection for reliable tool switching.
| Specification | Unit | VMC850 | VMC855 | VMC1160 | VMC1370 | VMC1580 |
|---|---|---|---|---|---|---|
| X/Y/Z axis | mm | 800/500/500 | 800/550/550 | 1100x600x600 | 1300x700x700 | 1500/800/700 |
| Workbench size(L*W) | mm | 1000x500 | 1000x550 | 1200x600 | 1400x700 | 1700x800 |
| Spindle speed | rpm | 8000 | 8000 | 8000 | 8000 | 6000 |
| Spindle taper | - | BT40 | BT40 | BT40 | BT40 | BT50 |
| Tool Capacity | tools | 24 | 24 | 24 | 24 | 24 |
| Positioning accuracy | mm | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 |
| Weight | kg | 5000 | 5000 | 7000 | 9500 | 12000 |
WHY CHOOSE US
Professional machine tool manufacturer integrating production, sales, and after-sales service with over 30 years of R&D history.
QUALITY ASSURANCE
Every part inspected with over 100 production process controls and 72 hours trial run before delivery.
AFTER-SALES GUARANTEE
One year warranty. Response within 24 hours for any machine failures with professional technical judgment.
