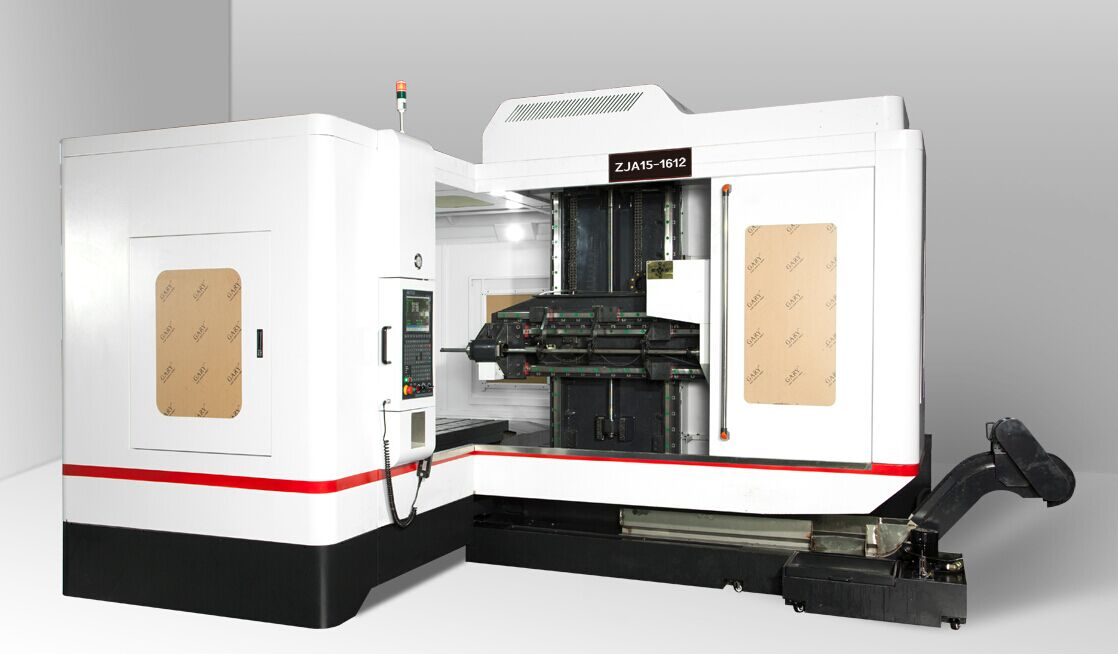

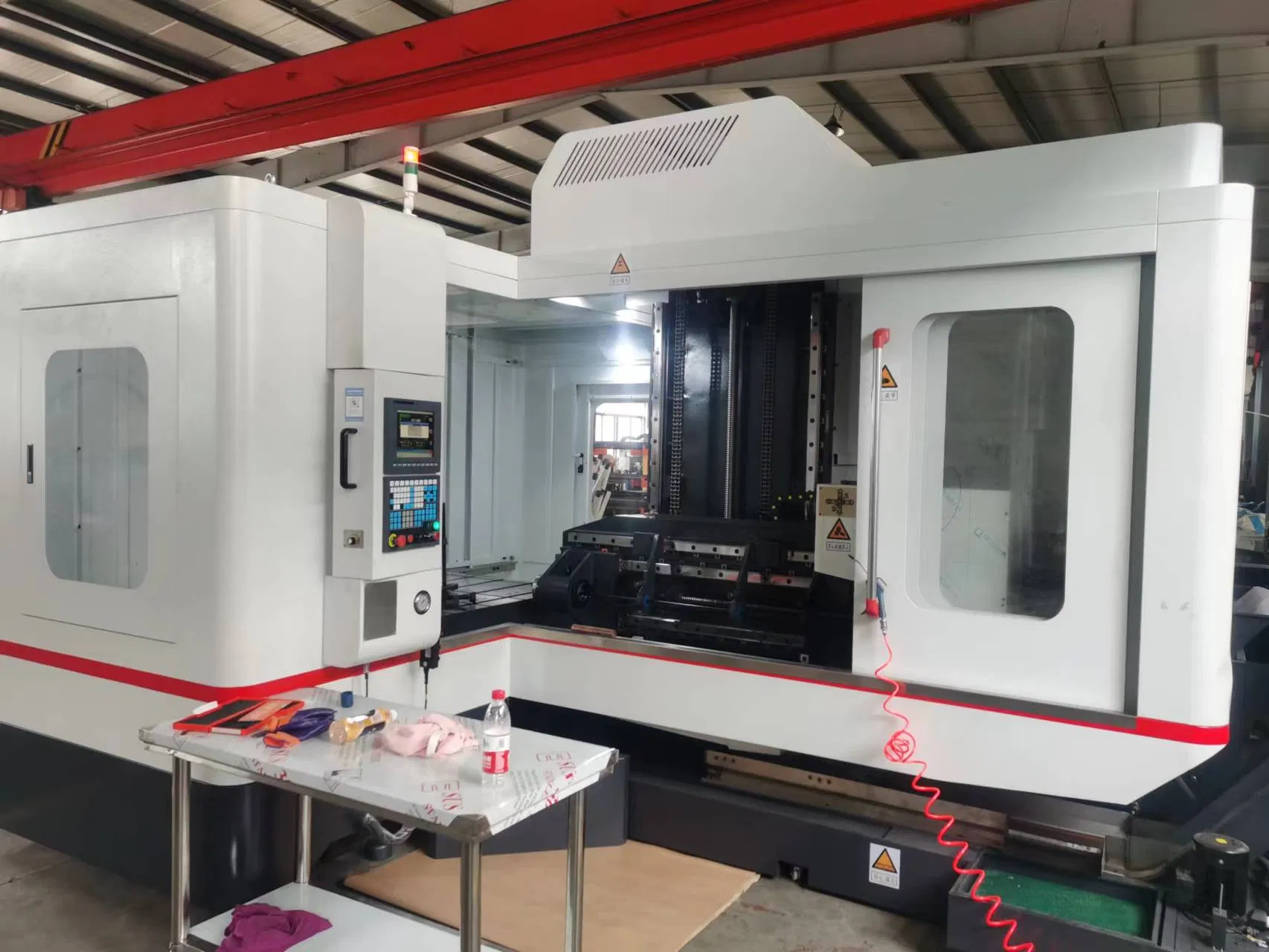

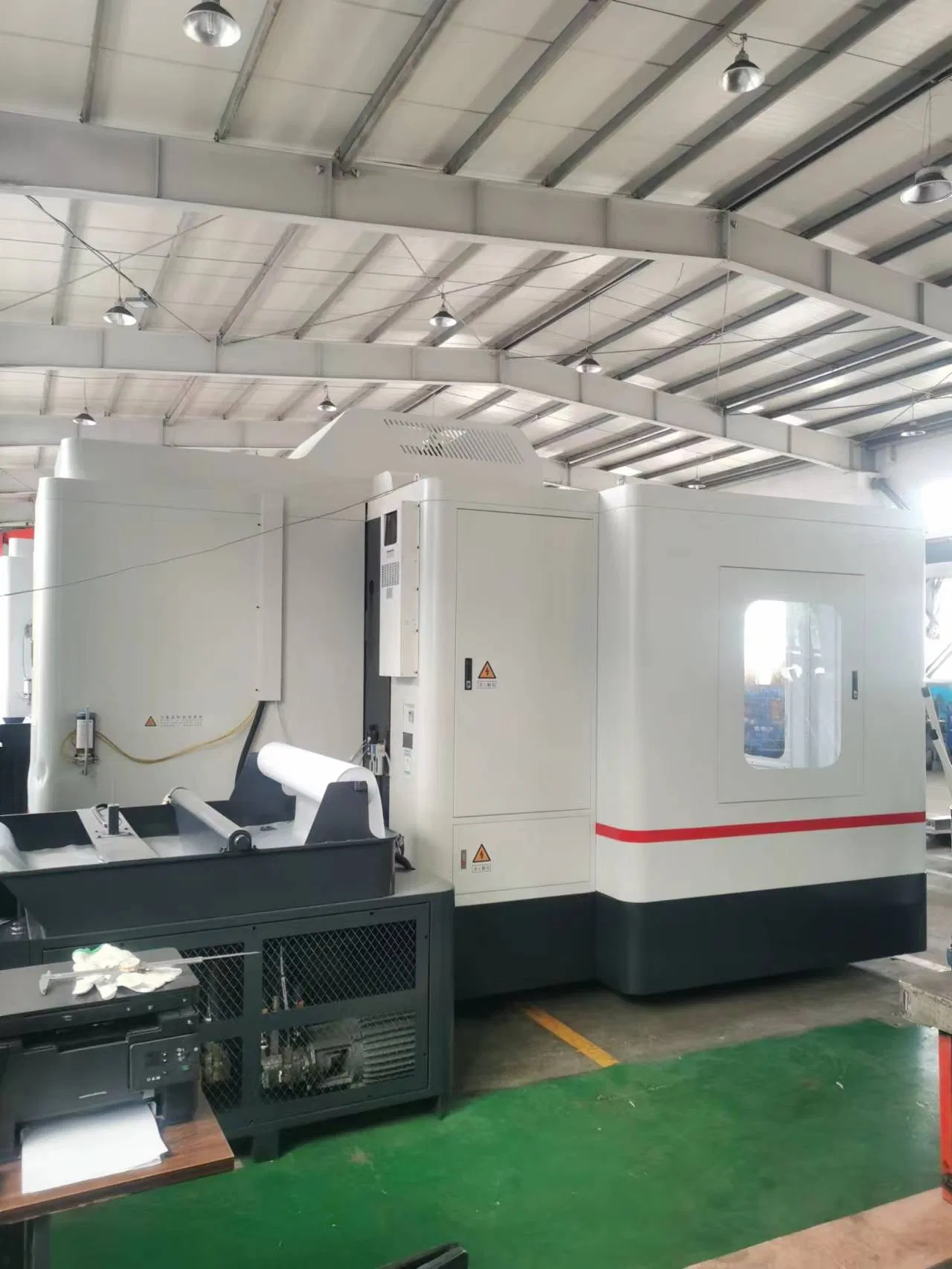

Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
1 / 5
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)
Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)

Syntec 3 Axis CNC Drilling and Milling Router with CE (ZJA20-3015)

Customization: Available
Warranty: 1 Year
Structure: Horizontal Drilling Machine
Send Inquiry

Product Description

Basic Information
Model NO.
ZJA20-3015
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Weight
21 Ton
Production Capacity
60PCS/Year
HS Code
8459210000
Product Application
ZJA SERIES - High Efficiency Deep Hole Drilling
Mould Industry: water line hole, thimble hole, ejection pin hole, etc.
Hydraulic Machinery: valve, distributor and pump, etc.
Automotive Industry: cylinder, fuel supply system and parts.
Aerospace Industry: the propeller, landing gear and parts.
Chemical & Generator: heat exchange parts.

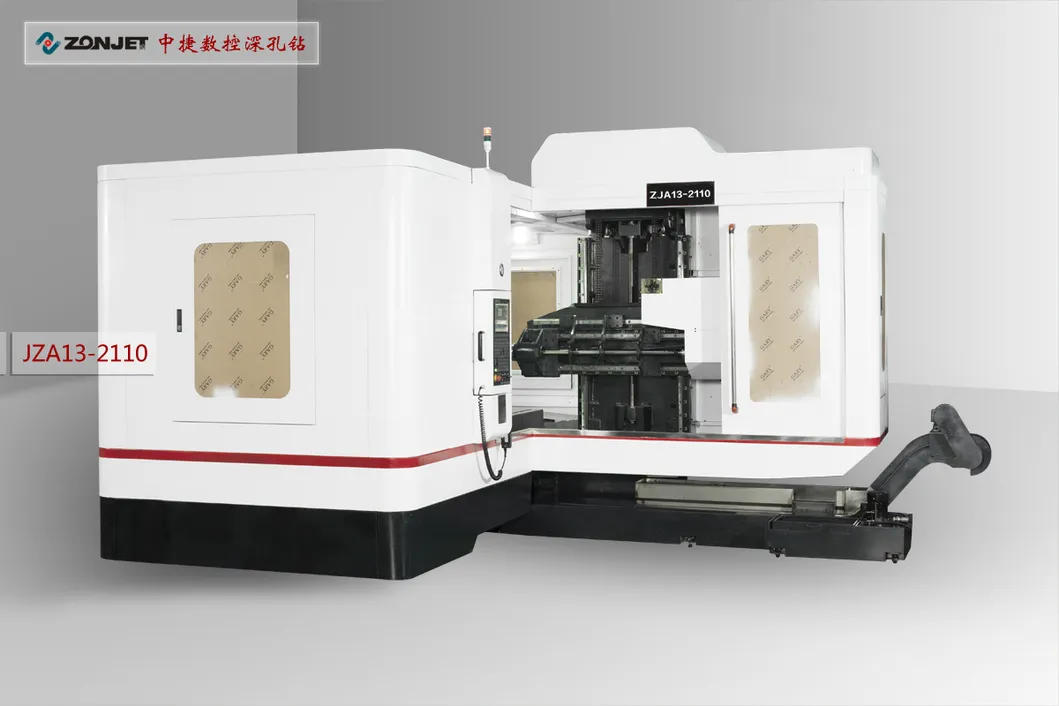

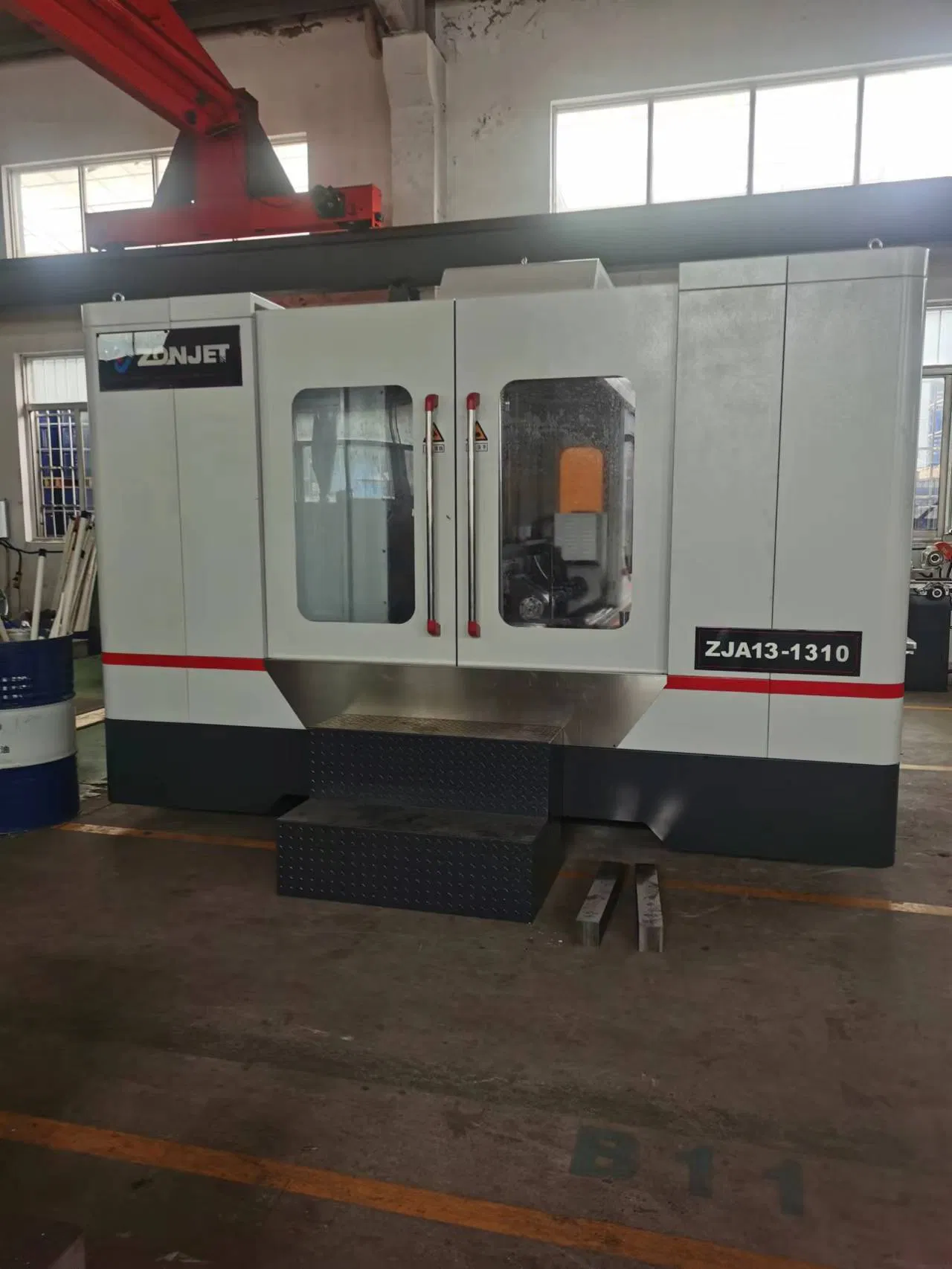

CNC Drilling Machine View 1

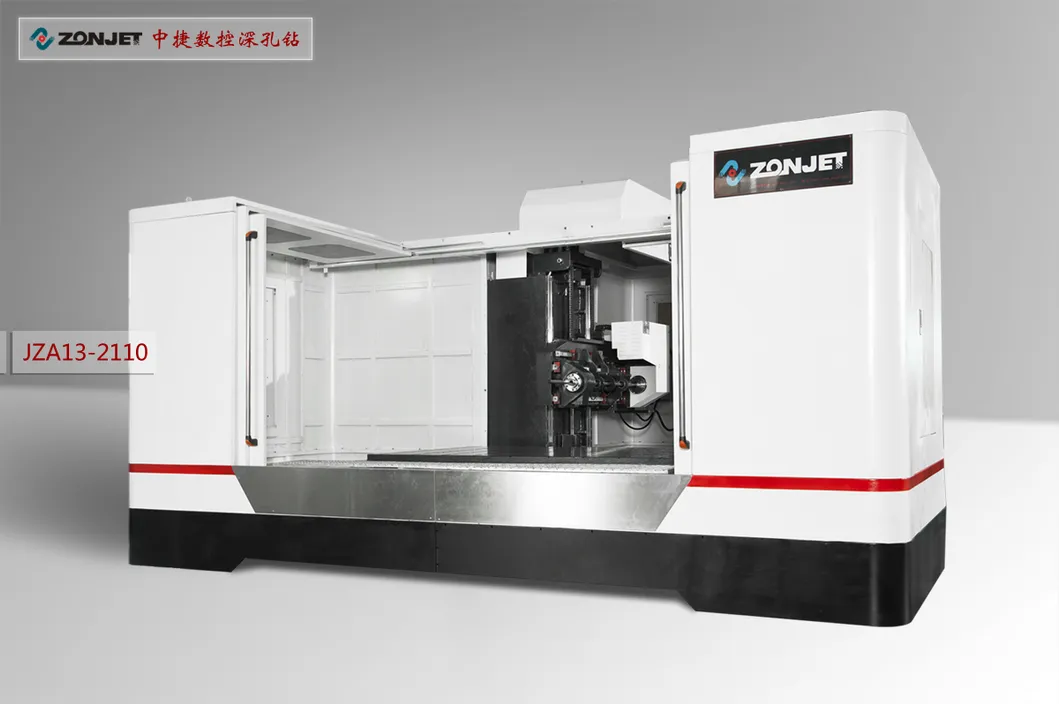

CNC Drilling Machine View 2
Technical Parameter
Items ZJA20-3015
Processing Capacity Drilling aperture range φ3~φ35mm
Max. drilling depth 2000mm
Processing Range X axis processing range 3000mm
Y axis processing range 1500mm
Working Table Dimension of working table 1600×3000mm
Max. Loading capacity 20Ton
Processing Speed Max. Speed of spindle 4500r/min
Feed speed 3000mm/min
Precision Aperture precision IT8~IT11
Harshness of Hole Surface Ra ≤3.2μm
Tolerance 0.5/500(S45#,10mm)
Others Weight 21Ton
Floor area (L*W) 7500×6500mm
Key Performance & Features
🚀 Multi-Segment Automatic Processing
The system automatically adjusts the feed rate based on the pre-set processing schedule for optimized efficiency.
🧠 Logical Control System
Real-time monitoring of processing situations with automatic adjustment if any unusual specifications are detected.
🛡️ Advanced Safety Monitoring
Highly sensitive monitoring equipment triggers alarms and stops processing immediately upon error detection.
🔧 Precision Components
Equipped with high-precision ball screw bars and rolling linear guides for accurate positioning.
Machine Detail 1
Machine Detail 2

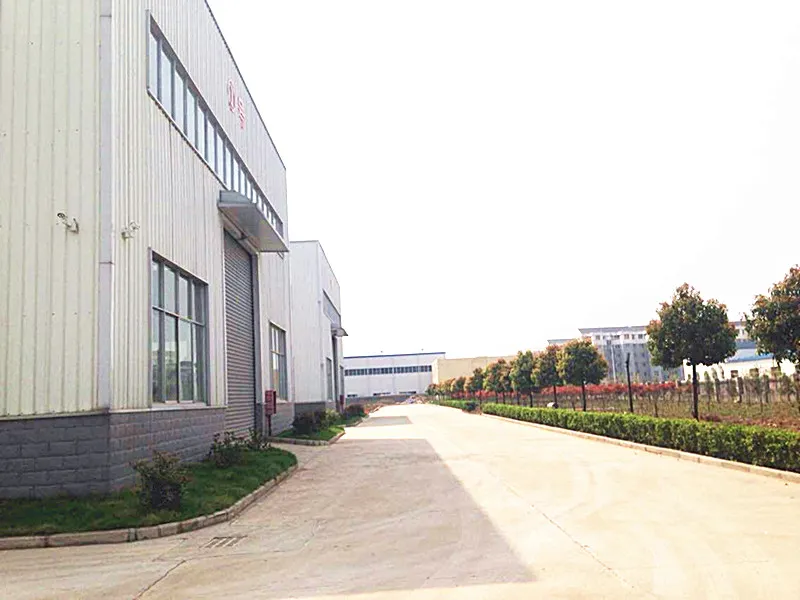

Machine Detail 3
Frequently Asked Questions (FAQ)
Q1: What is the maximum drilling depth for the ZJA20-3015?
A: This model supports a maximum drilling depth of up to 2000mm.
Q2: What materials and industries is this machine suitable for?
A: It is widely used in the mould industry (water lines), automotive (cylinders), aerospace (landing gears), and hydraulic machinery industries.
Q3: Does the machine feature an automatic alarm system?
A: Yes, it includes highly sensitive monitoring equipment that sounds an alarm and stops processing if any errors are detected.
Q4: What is the loading capacity of the working table?
A: The working table dimensions are 1600×3000mm with a maximum loading capacity of 20 Tons.
Q5: Which CNC system is utilized in this equipment?
A: The machine is integrated with the Taiwan SYNTEC CNC system, known for its stable performance and convenient operation.
Q6: What is the drilling aperture precision?
A: The machine achieves a high aperture precision level of IT8 to IT11.
