✔ 1. Max. punching force: 1000kN
✔ 2. Max. size of workpiece: 775×1500mm
✔ 3. Thickness of workpiece: 5 ~ 25mm
✔ 4. Max. punching diameter: φ25.5mm (16Mn, 20mm thickness Q235, 25mm thickness)

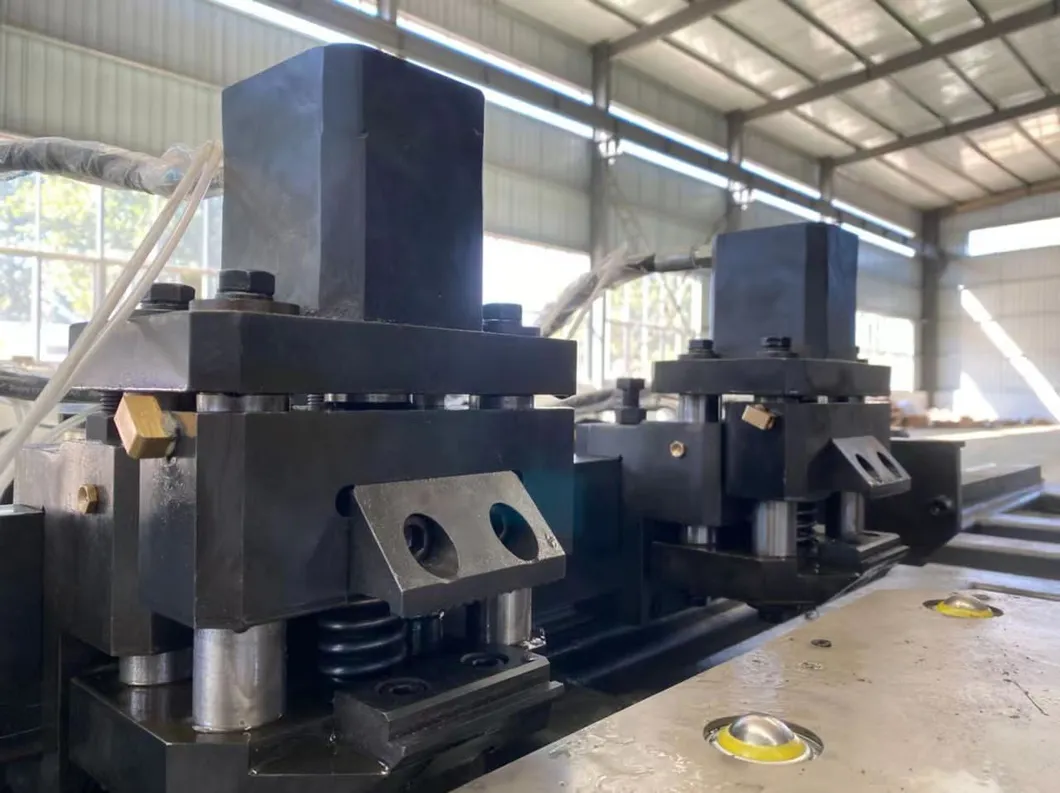

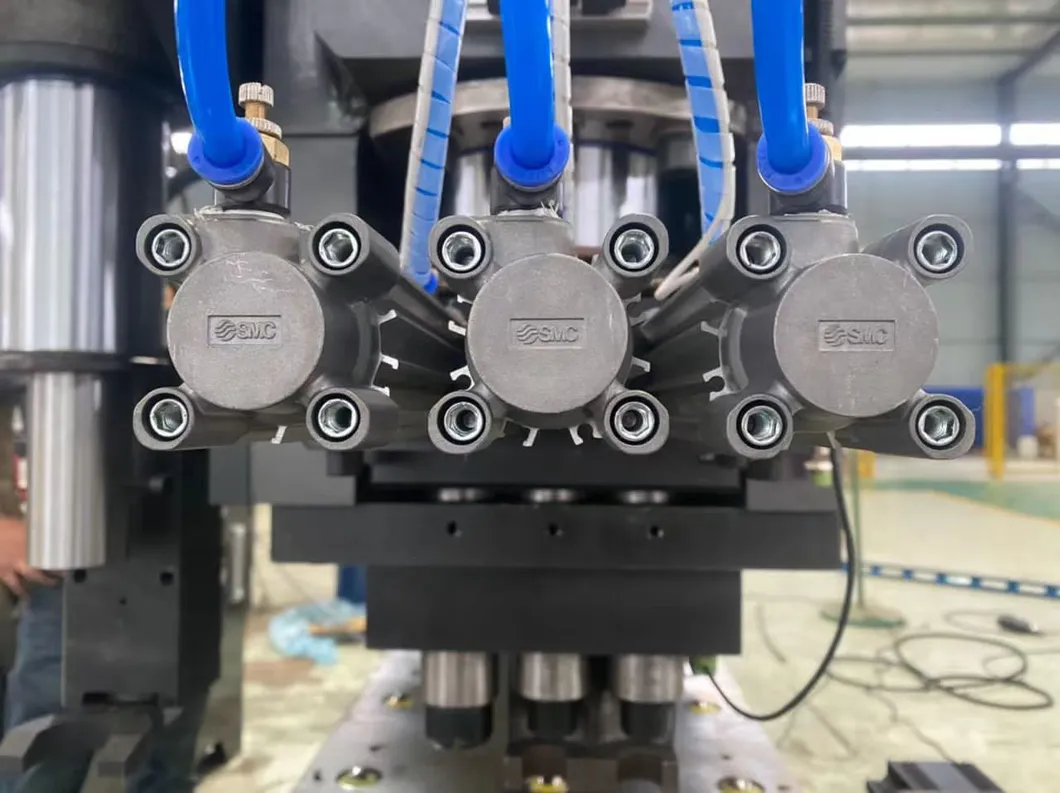

✔ 5. No. of die station: 3 (one for stamping die)
✔ 6. Min. distance between hole and plate edge: Punching 25mm / Drilling depends on diameter
✔ 7. Max. marking force: 800kN
✔ 8. No. and size of character: 10 (14×10mm)
✔ 9. Drilling diameter (high-speed steel twist drill): φ16 ~ φ50mm
✔ 10. Rotation speed of drilling spindle: 120~560r/min, 5.5kW
✔ 11. Max. stroke of drilling spindle: 180mm
✔ 12. Feeding speed: 20~200mm/min (hydraulic adjustment)
✔ 13. Processing precision: Fits stipulations of first-rate products in Classifying Standard of Steel Tower
✔ 14. Space between arbitrary holes: longitudinal: ±0.5mm transverse: ±0.5mm
✔ 15. Node plate: space between group holes: ±1.0mm; hole to side: ±1.0mm
✔ 16. Vertical degree: ≤ 0.03t and ≤ 2mm (t=thickness)

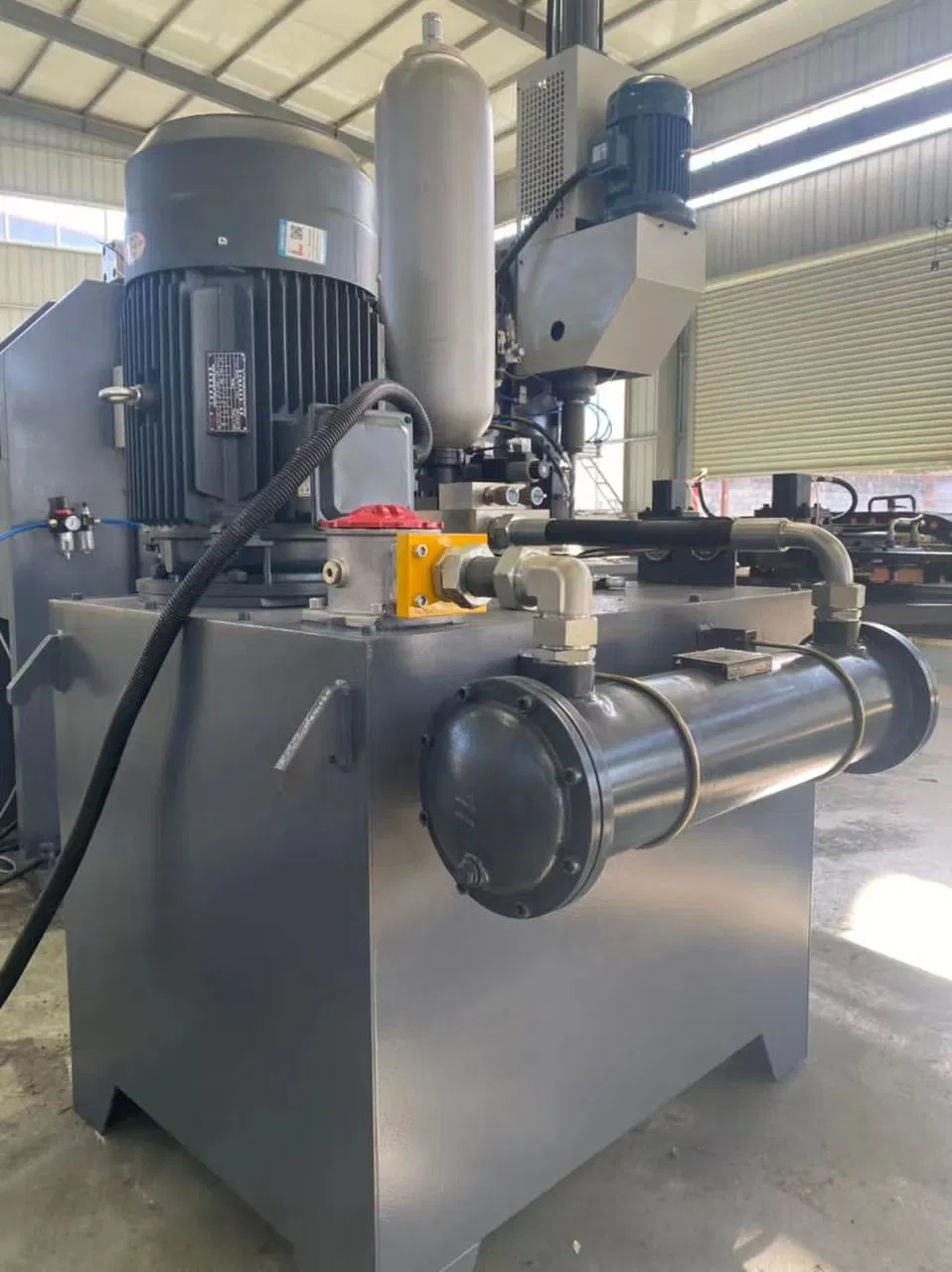

✔ 17. Motor power of hydraulic pump: 15kW

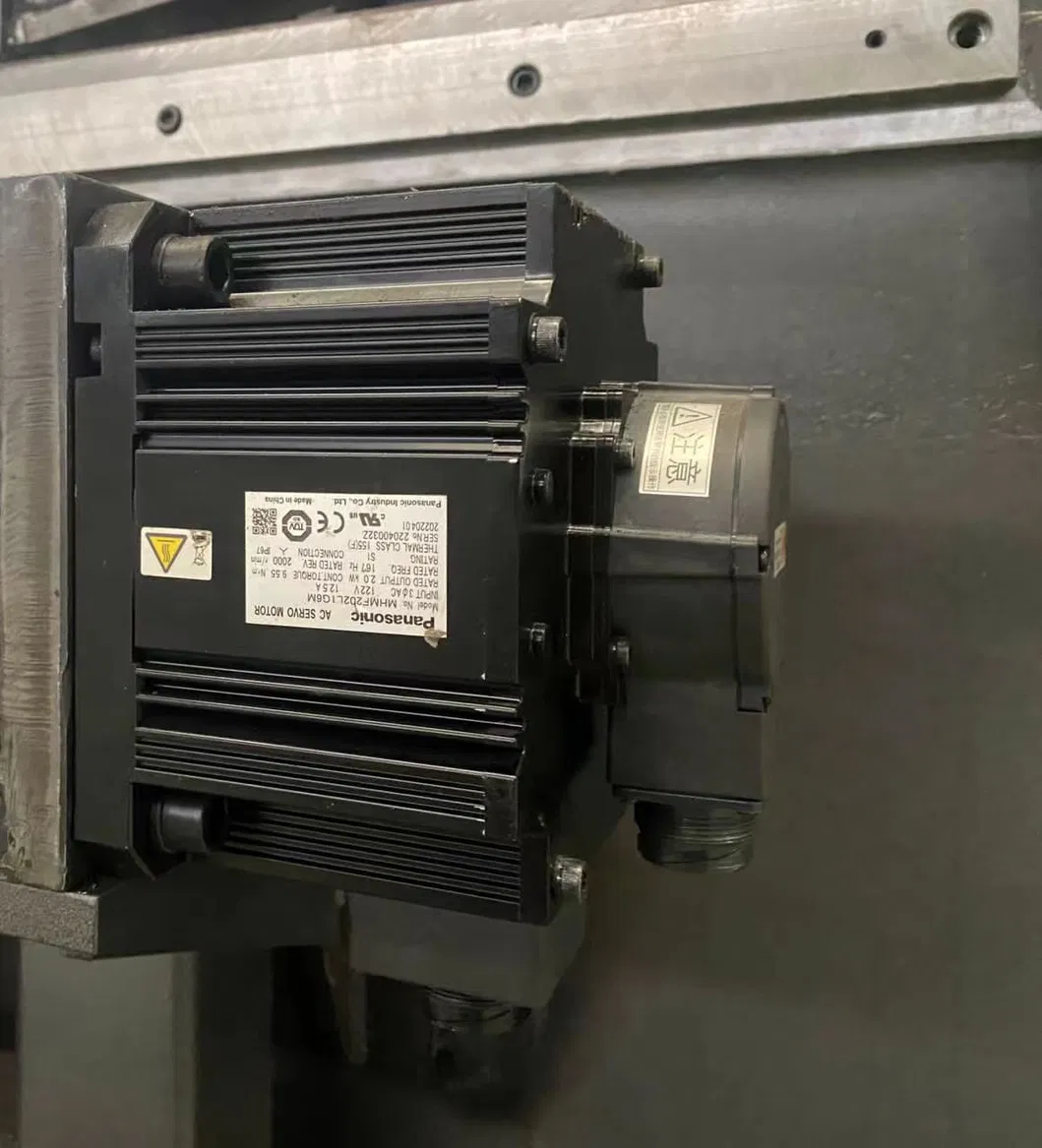

✔ 18. Power of servo motor (X and Y axes): 2×2kW
✔ 19. Compressed air force: 0.5MPa×0.1m³/min
✔ 20. Overall dimension: 3100×2988×2720mm
✔ 21. Weight: Approx. 6500kg

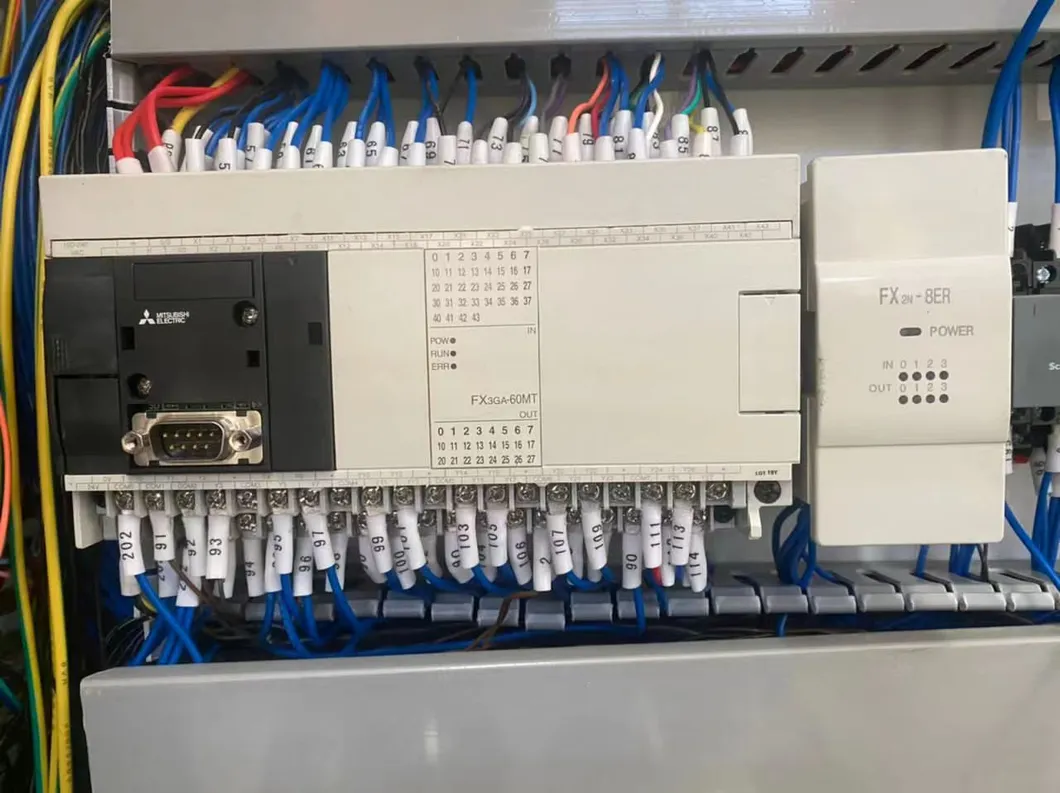

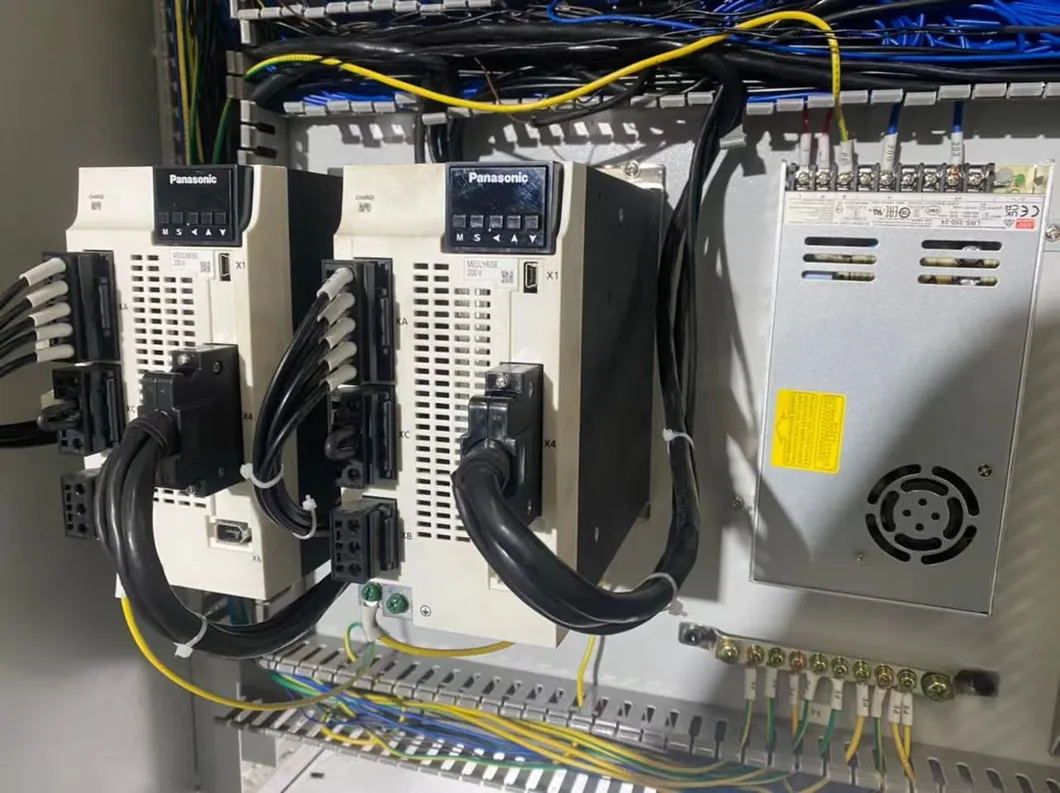

✔ 22. Control: AC servo motors, PLC and CNC orientation system from world-famous brands
✔ 23. Environment: 0ºC~ 40ºC; AC 380V; 50 Hz
