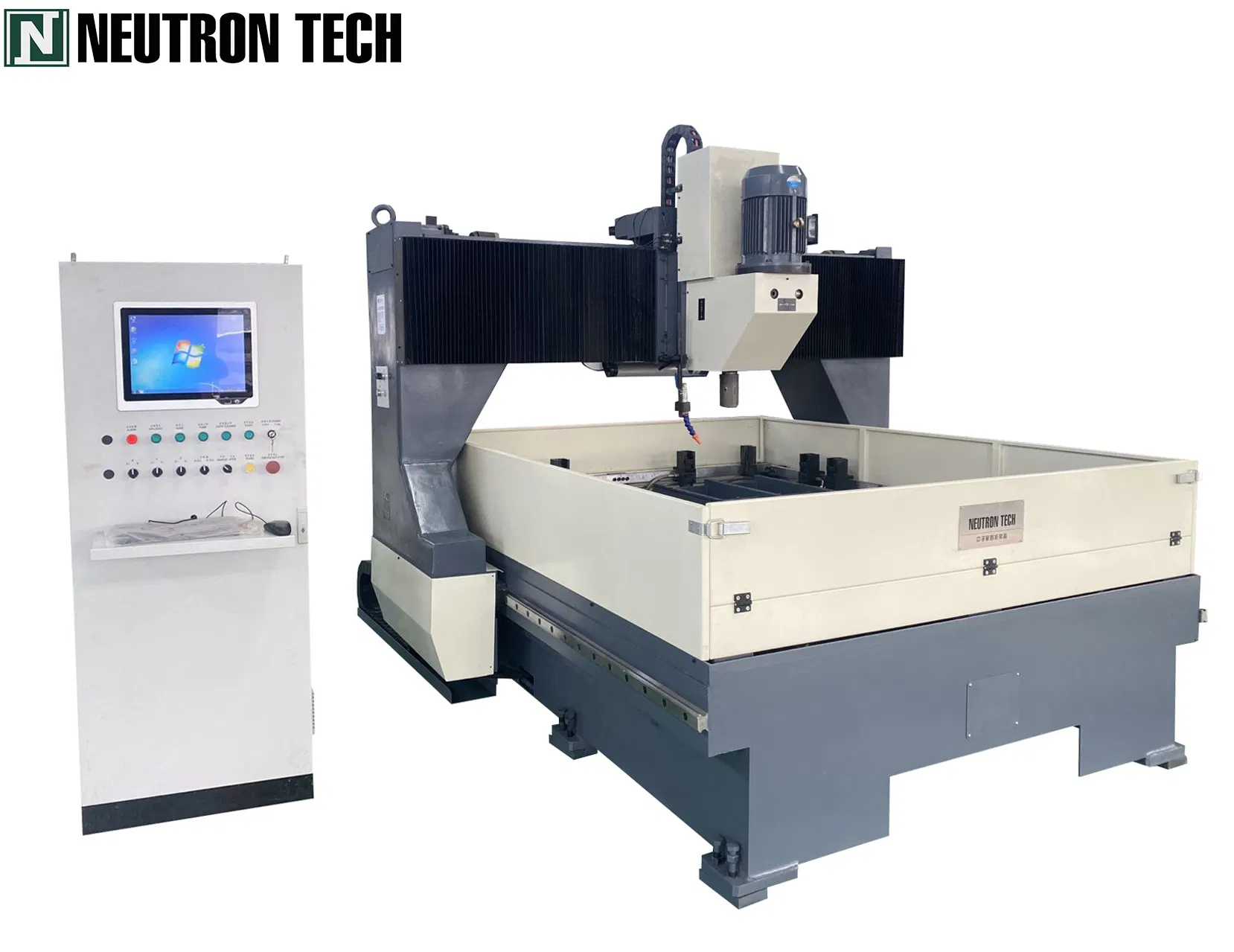

Gantry Moveable CNC Plate Drilling Millingmachine Tool Worktable Drilling Equipment Tube Sheet Steel Structure Heat Exchanger Vertical Drilling

1 / 5

Gantry Moveable CNC Plate Drilling Millingmachine Tool Worktable Drilling Equipment Tube Sheet Steel Structure Heat Exchanger Vertical Drilling

Structure:	CNC Drilling Machine
Layout:	Vertical
Controlling Mode:	CNC

Send Inquiry

Product Description

⚙️ Basic Info.

Model NO.

PLD3016

Automatic Grade

Automatic

Condition

New

Processing

Drilling Machine

Processing Types

Metal Drillig Machine

Workpiece

Large Machine Tool

Industry

Steel Structure

Type

CNC Machine

Transport Package

Wooden Box

HS Code

8465920000

Production Capacity

50 Set/Sets Per

📋 Product Description

📊 Product Parameters

Name	Detail	Specification
Size of work piece	Thickness	Max. 80mm
	Width × length	1600mm×3000mm (1 pc)
Axis	Quick change chuck	Morse Taper 3# 4#
	Diameter of Drilling head	Φ12mm-Φ50mm
	Variable speed mode	Stepless speed adjustment
	Rotation speed	120-560r/min
Clamping	Clamping thickness	15-80mm
	Number of clamps	12 pieces
Hydraulic	Clamping	6MPa(60kgf/cm2)
Servo Motor	Axis	5.5KW
Size	L×W×H	About 5560×4272×2449mm
Weight	Machine	7600kg
Stroke	X Axis / Y Axis	3000mm / 1600mm
Positioning speed	Max. 8000mm/min

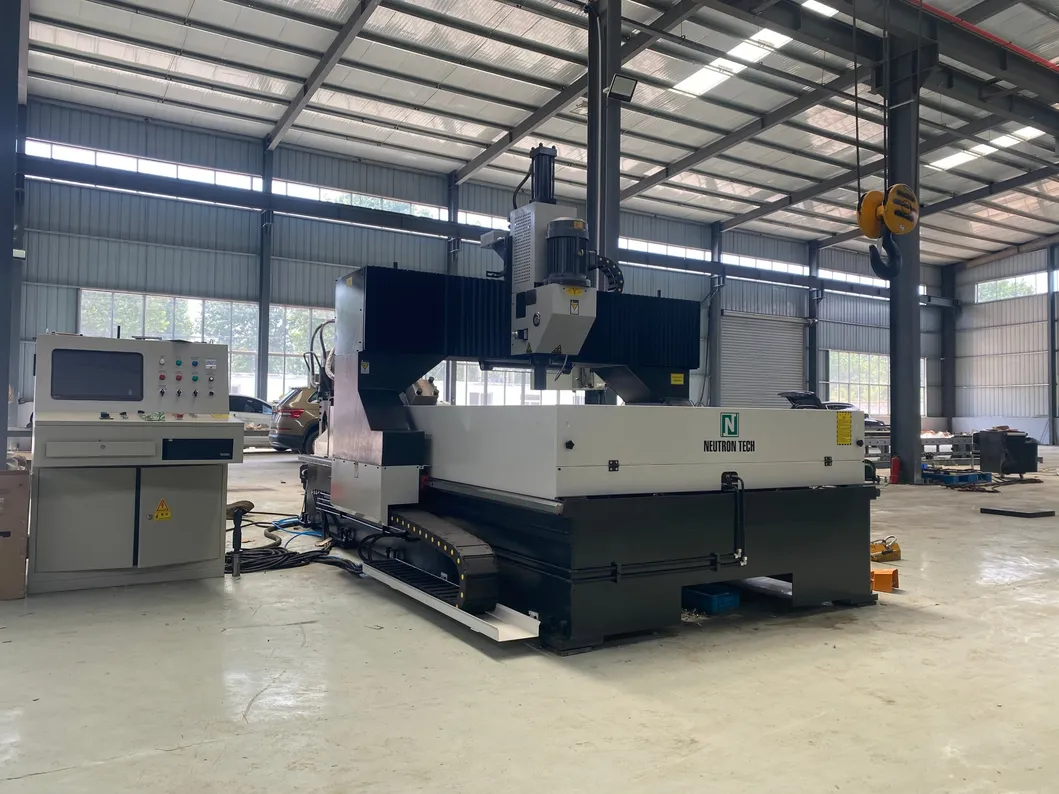

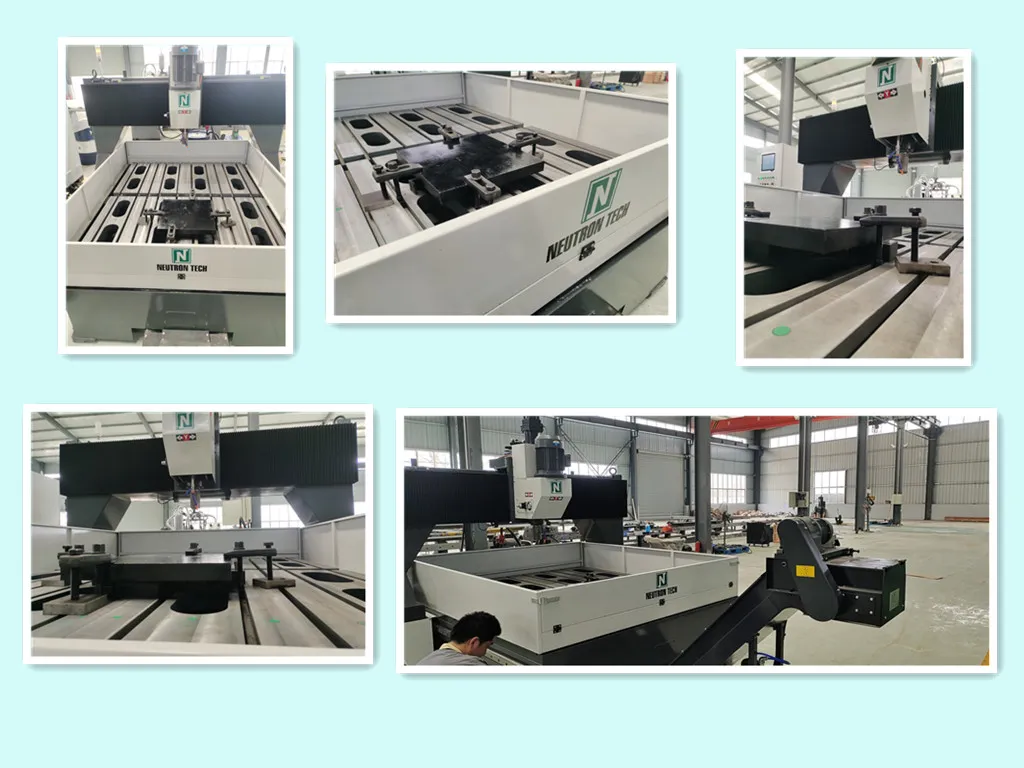

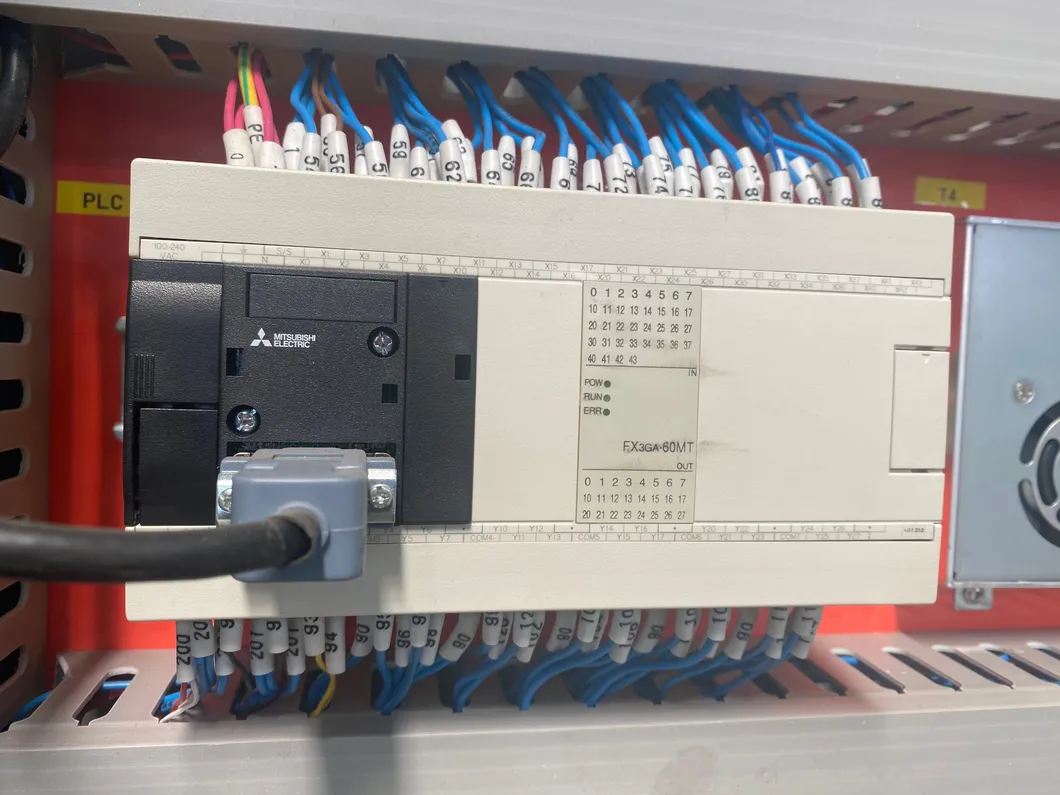

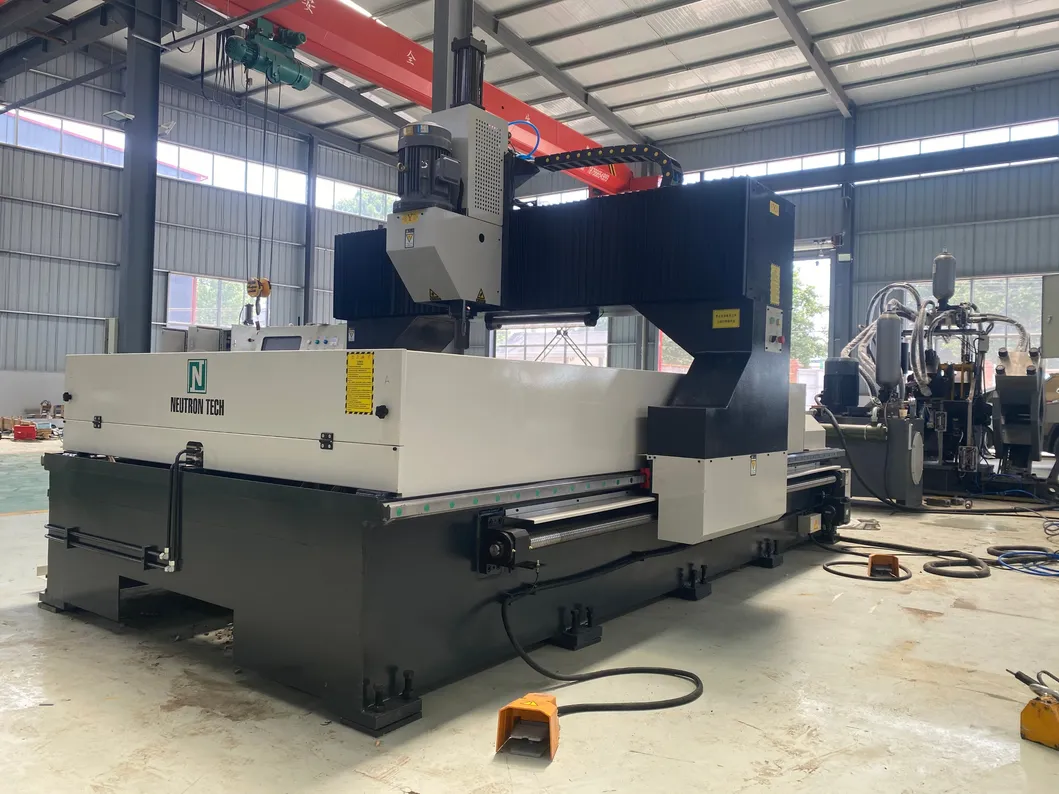

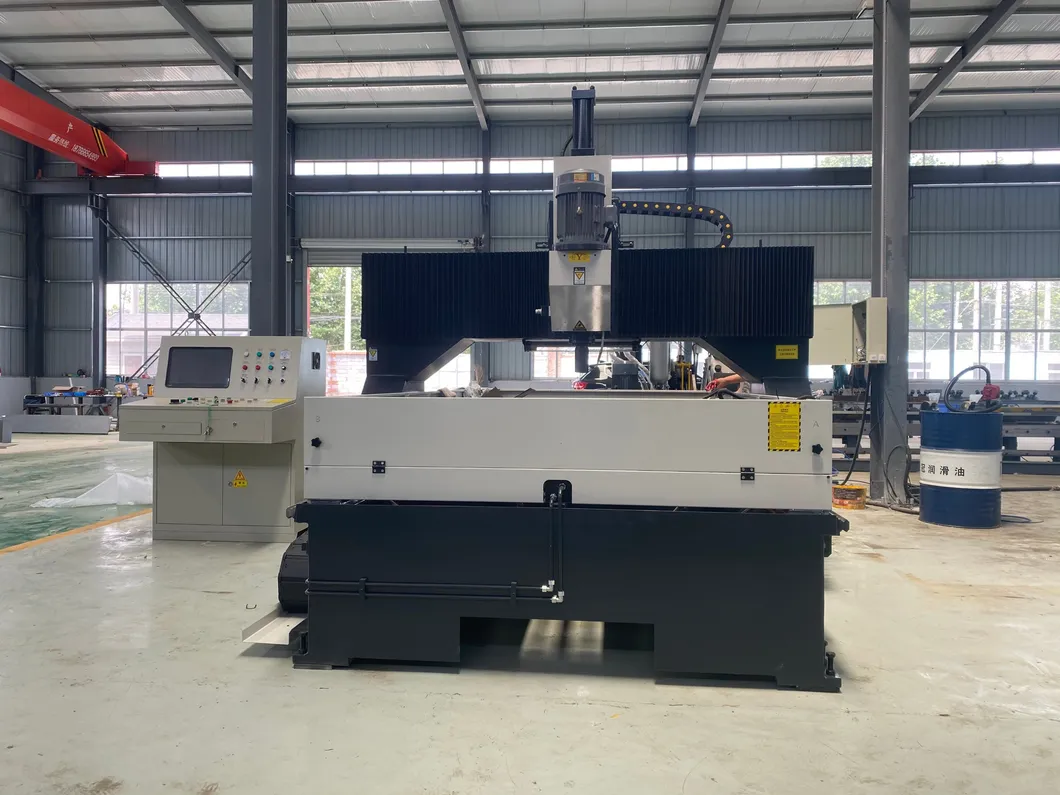

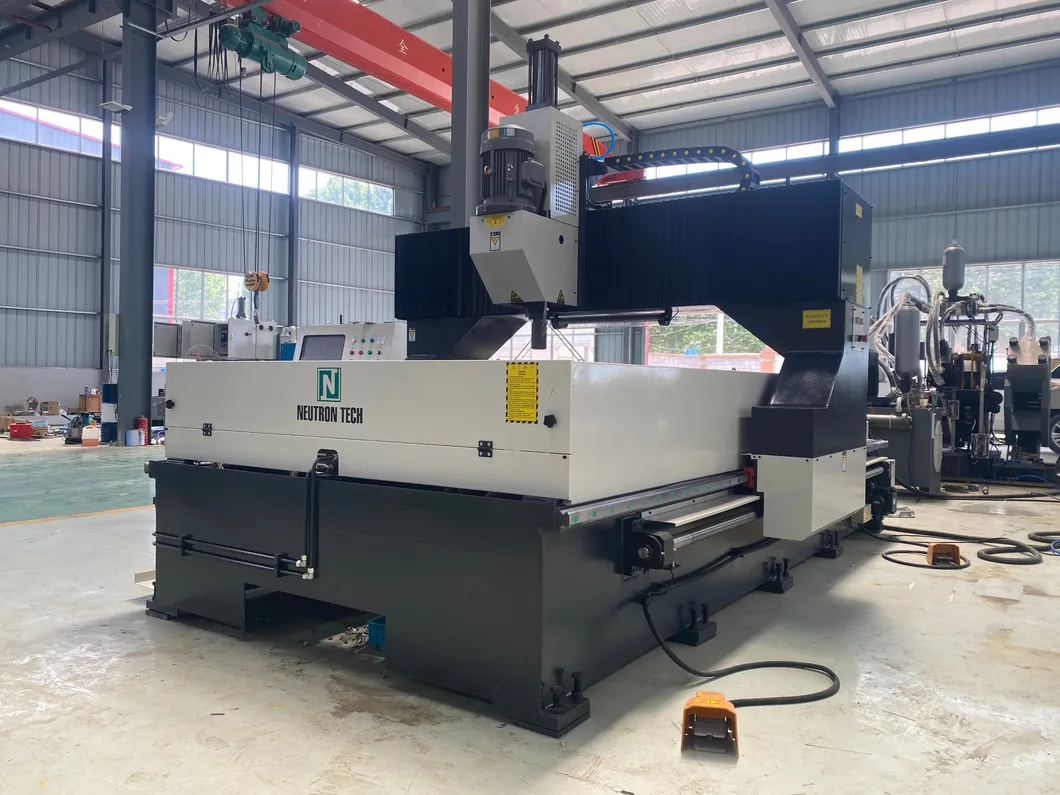

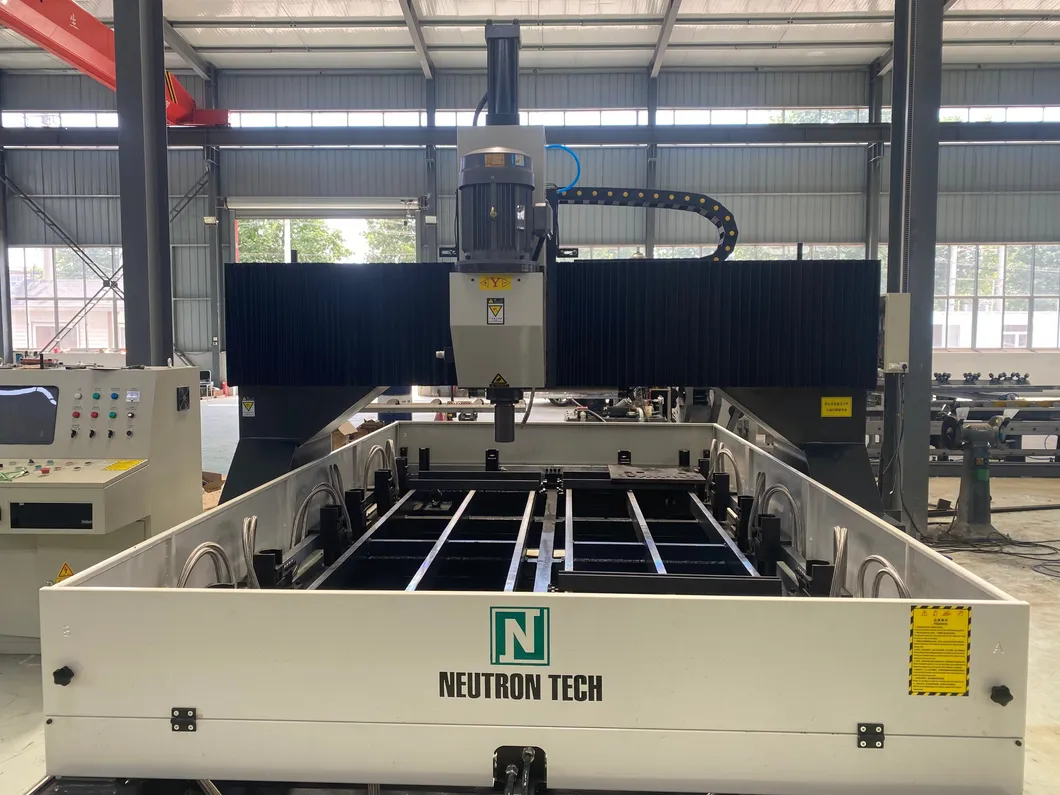

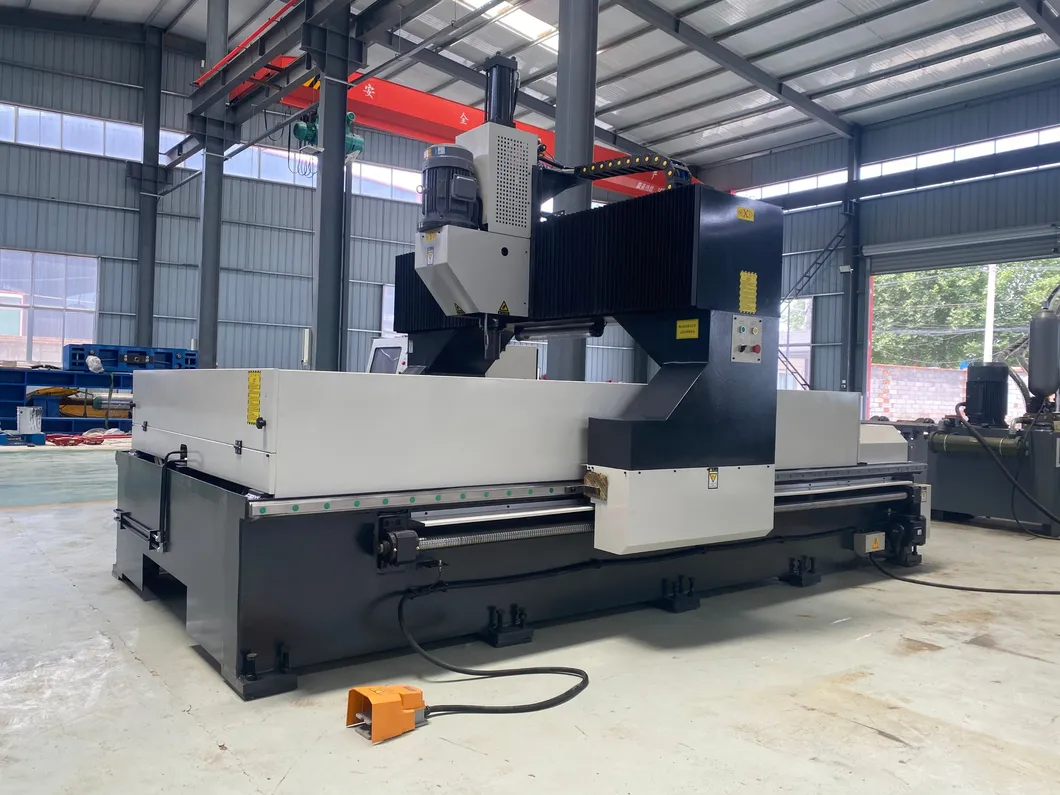

🖼️ Product Display

🏆 Client Feedback & Certifications

💎 Why Choose Us?

Cost-effective shipping solutions and transparent invoicing.
Rigorous quality inspection before dispatch within 1-7 working days.
Full tracking support until the parcel arrives.
Professional after-sale service based on customer feedback.

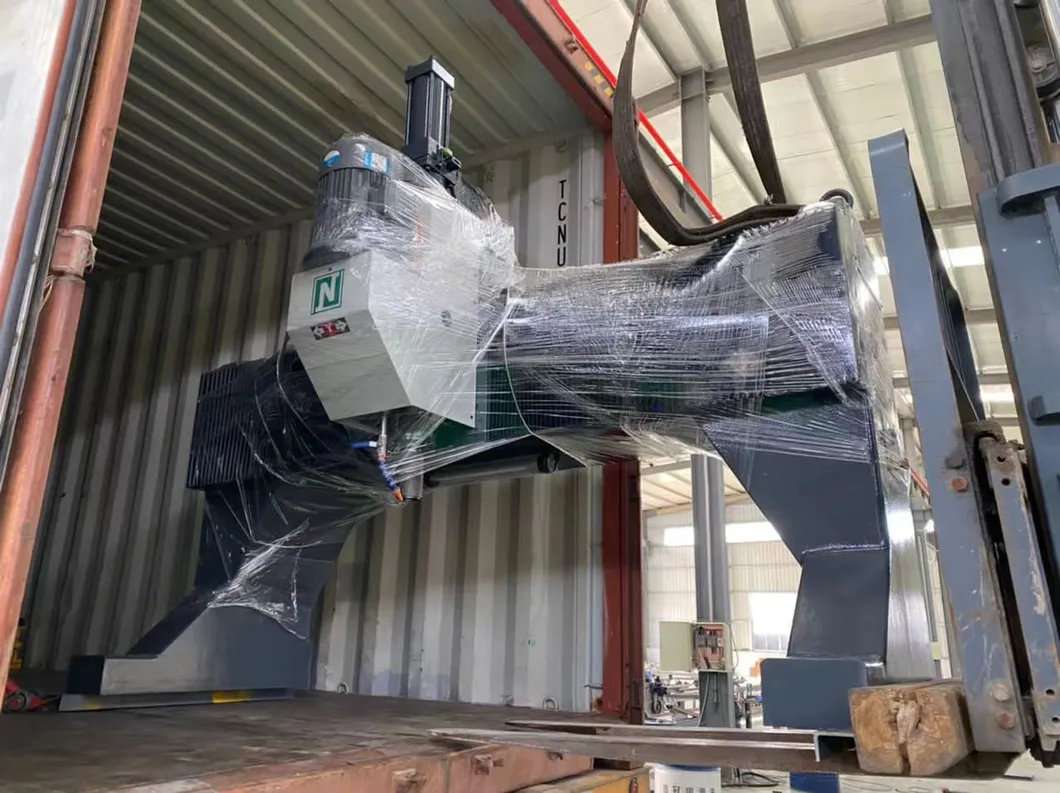

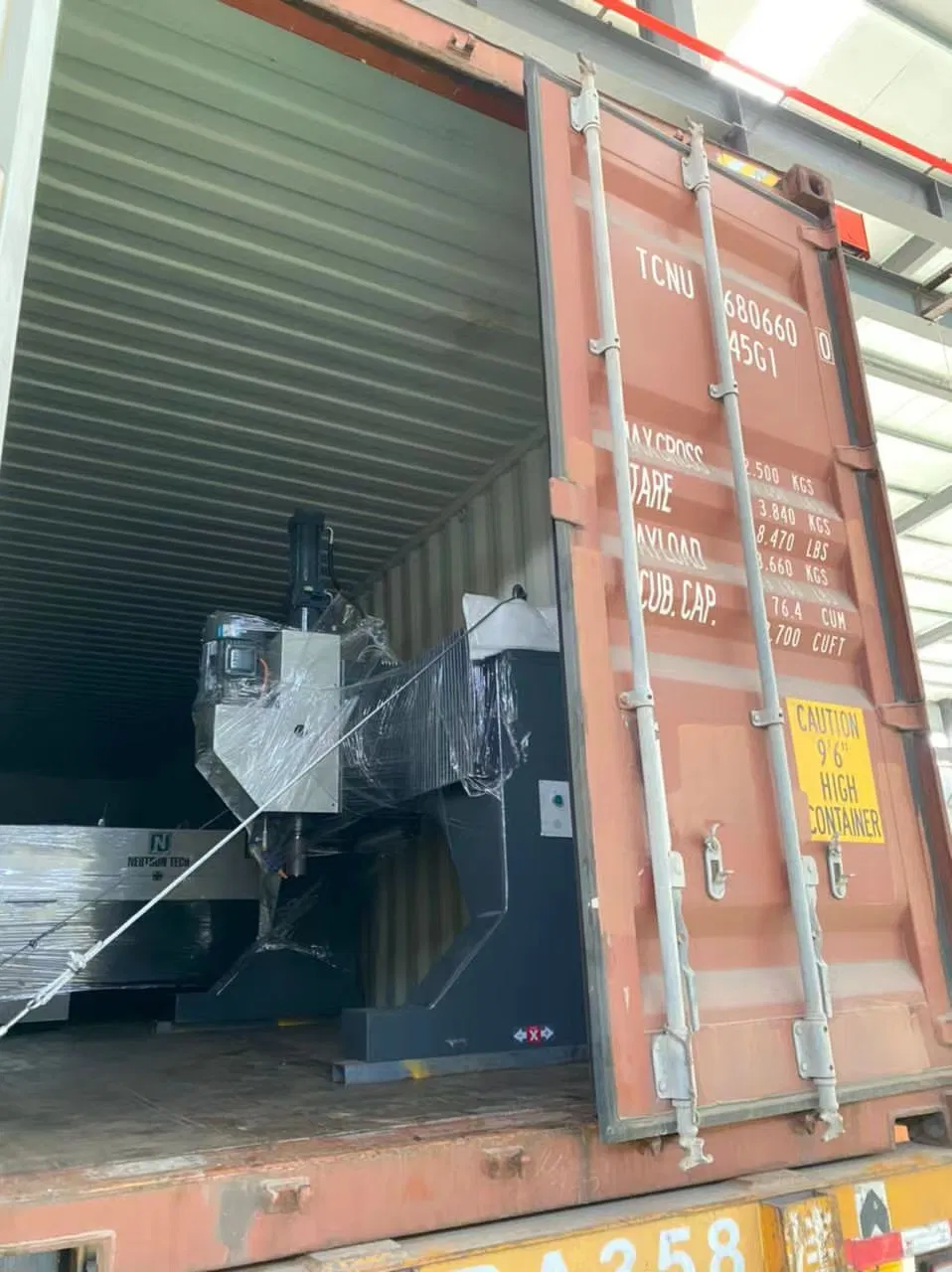

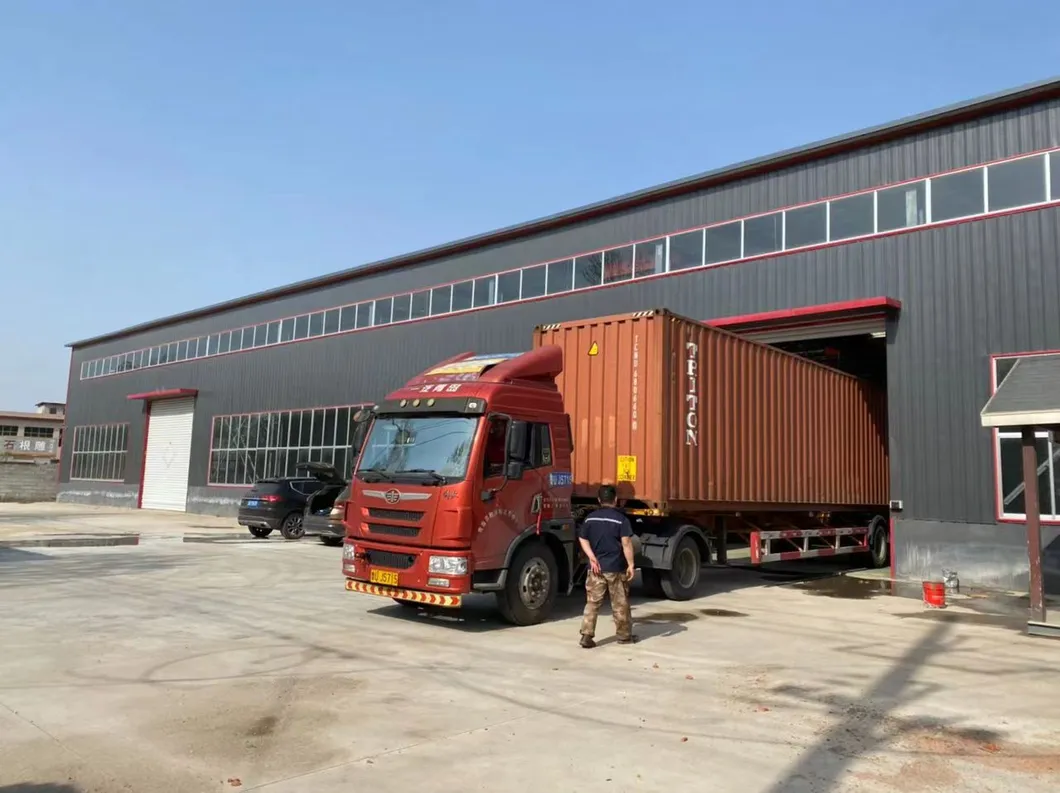

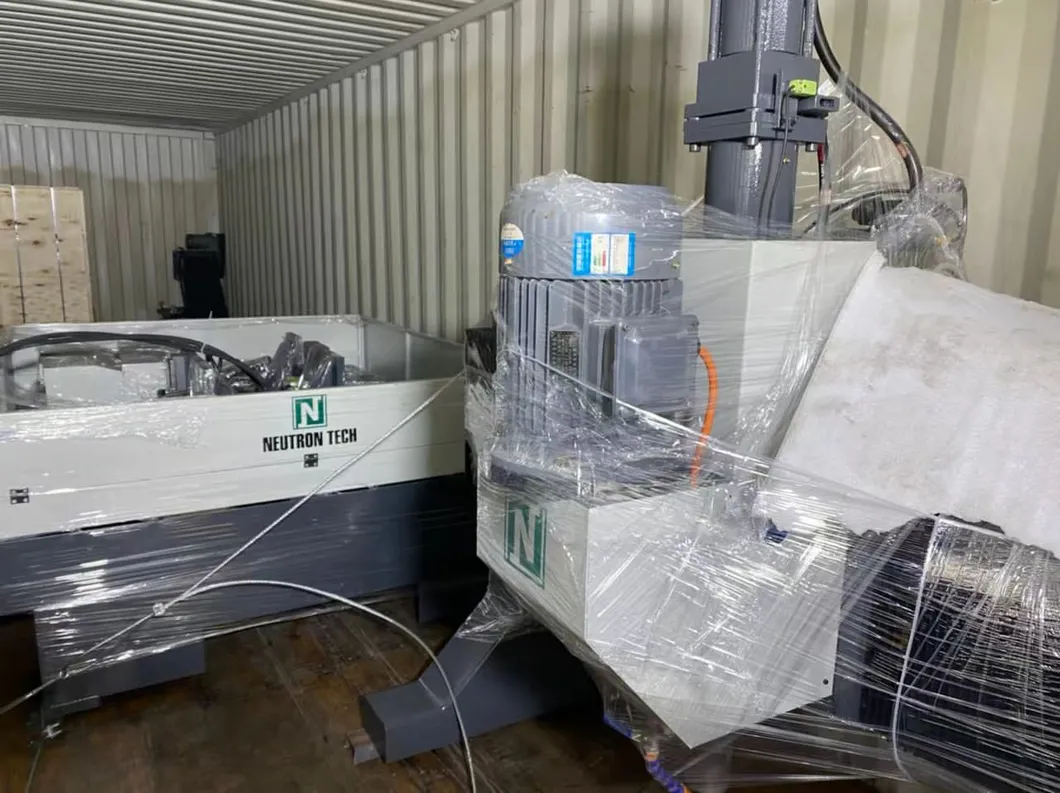

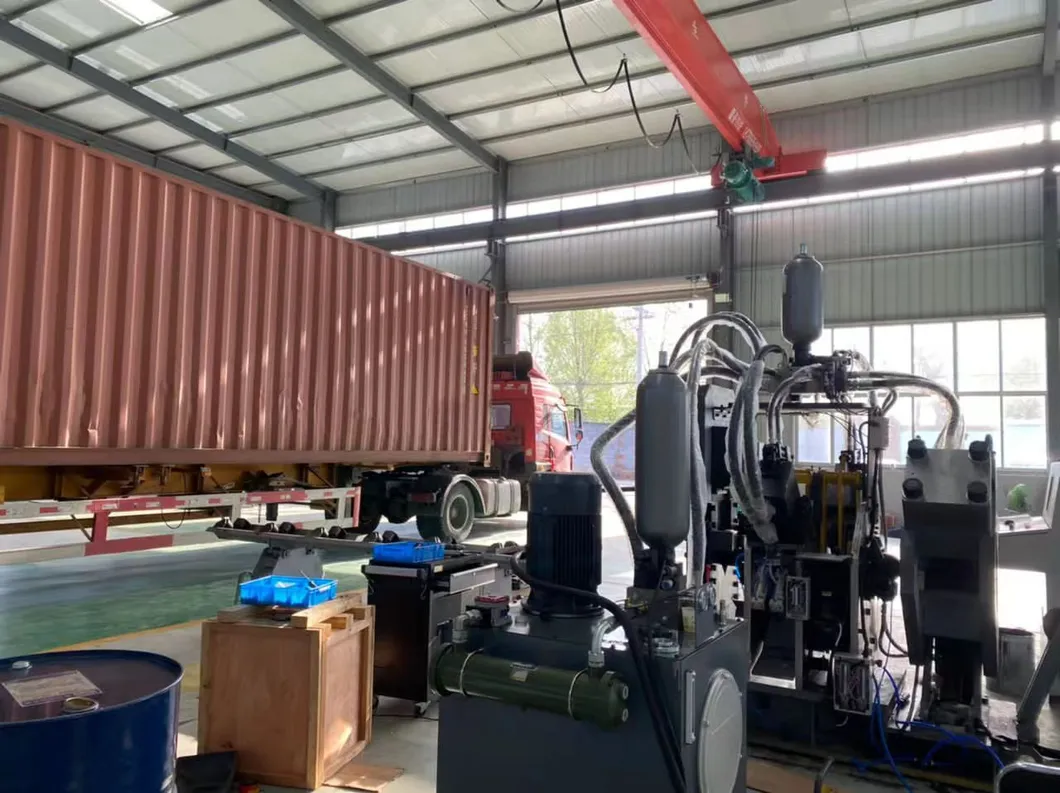

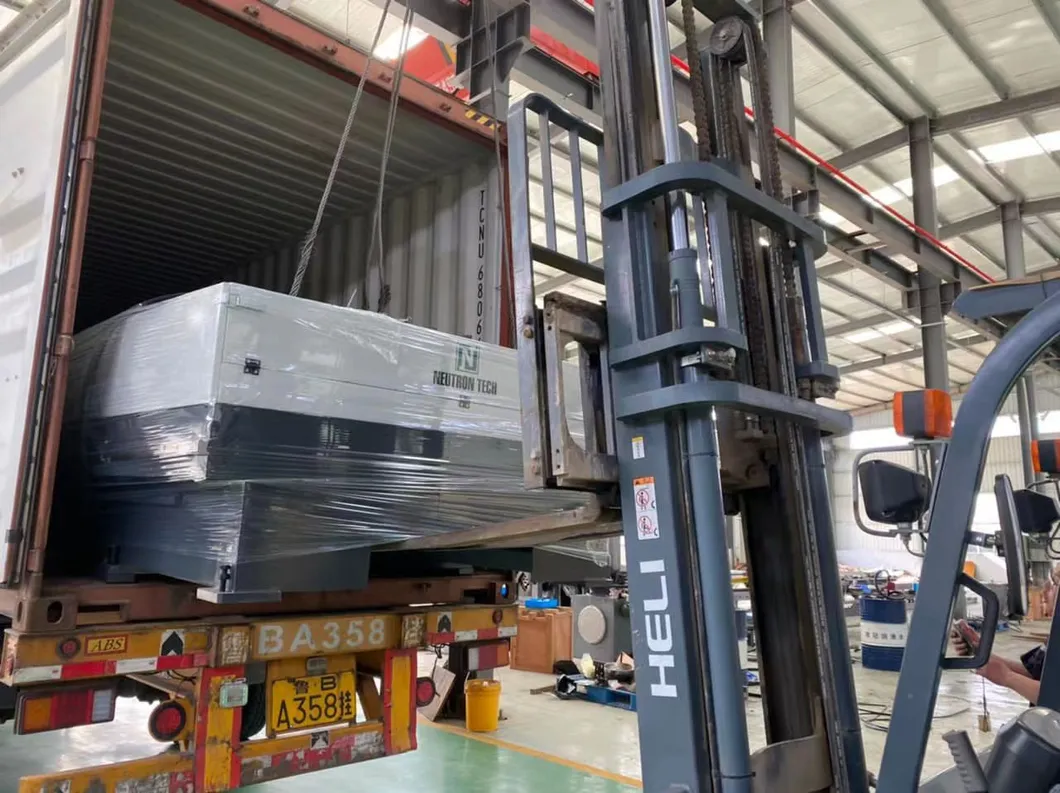

📦 Packaging & Shipping

❓ FAQ

Q: What is the maximum processing thickness of the CNC Plate Drilling Machine? A: The machine can process workpieces with a maximum thickness of up to 80mm.

Q: Can you provide training for operating these CNC machines? A: Yes, free training is available at the factory to ensure smooth operation of the equipment.

Q: What is the typical delivery time for a custom order? A: Normally, the delivery time ranges from 30 to 45 days, depending on specific requirements.

Q: What are the warranty terms for the drilling machine? A: We provide an 18-month warranty starting from the bill of lading date, covering replacement for defective parts.

Q: How do you handle machine problems during the guarantee period? A: We can send free components for replacement or dispatch engineers to repair the machines if necessary.

Q: What kind of packaging is used for international shipping? A: All CNC machines are packed in sea-worthy wooden boxes to ensure safety during long-distance transit.
