| Model NO. | TSS-JX02-110-110 |
| Structure | Vertical Drilling Machine |
| Layout | Vertical |
| Controlling Mode | CNC |
| Automatic Grade | Semiautomatic |
| Precision | High Precision |
| Certification | CE, ISO 9001 |
| Condition | New |
| Drilling Diameter Range | 1.8~6.5mm |
| Drilling Pipe Wall Thickness | Thickest 15mm |
| Processing Workpiece Length | 1000~1300mm |
| Processing Workpiece Width | 350~500mm |
| Max Placement Height | 50mm |
| X-Axis Power Servo Motor | Ms1h3~13c15CD~T331r~1.3kw * 2 |
| Y-Axis Power Servo Motor | Ms1h3~18c15CD~T331r~1.8kw * 1 |
| Z-Axis Power Brake Motor | Ms1h3~13c15CD~T334r~1.3kw * 2 |
| Power Head Motor Power | Ys71~1500~0.75kw * 10 Pieces |
| Power Head Motor Speed | Adjustable 1500-3000r/Min |
| Rated Voltage | Three-Phase 380V |
| Air Pressure | 0.6~0.8MPa |

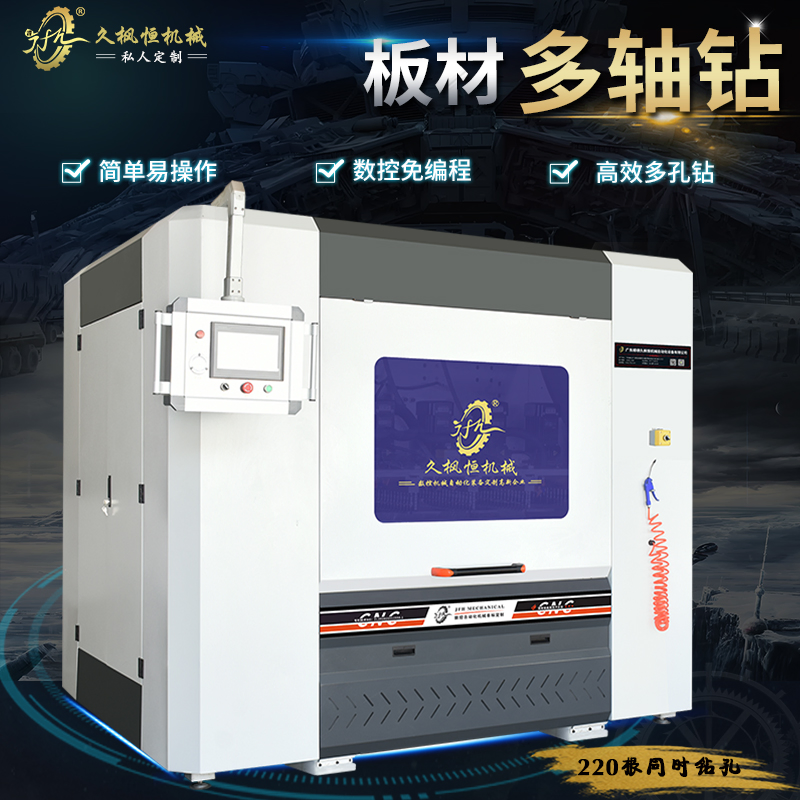

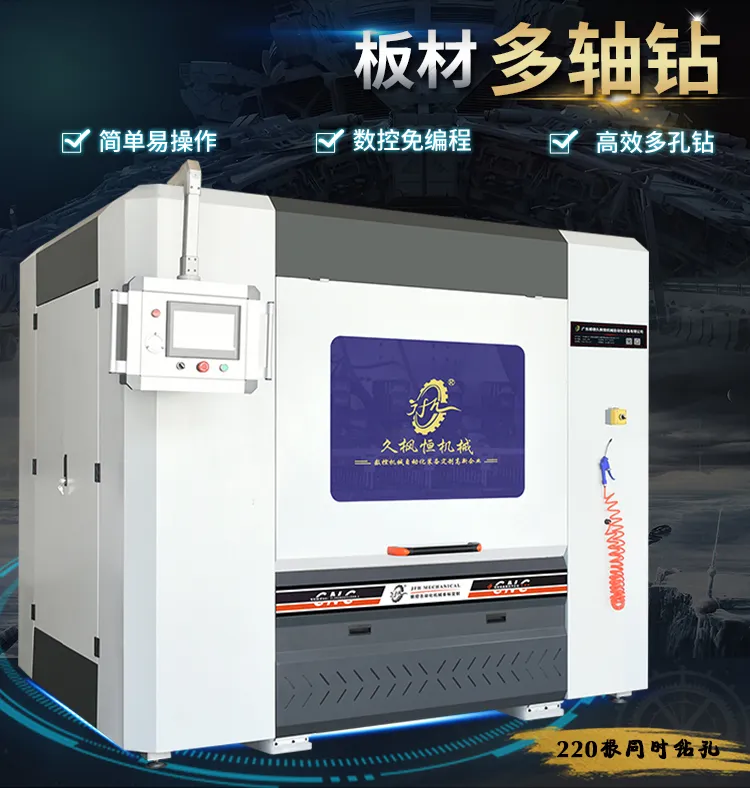

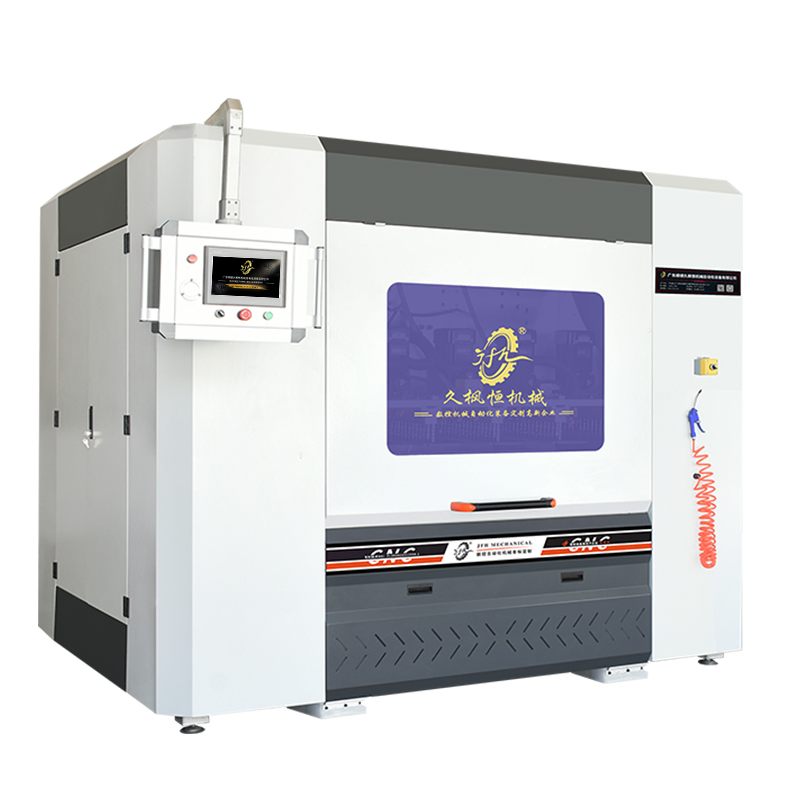

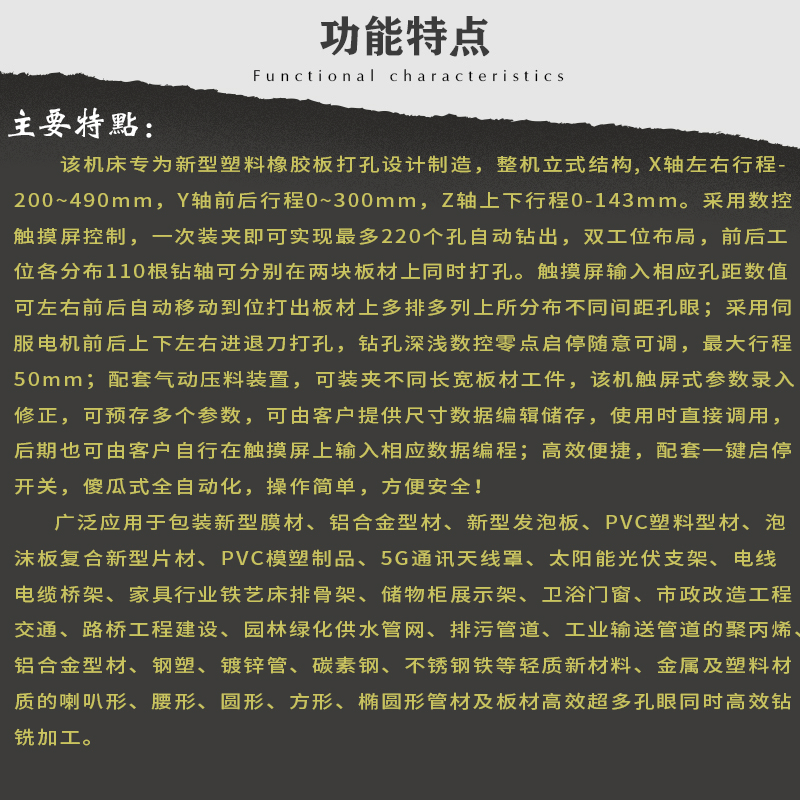

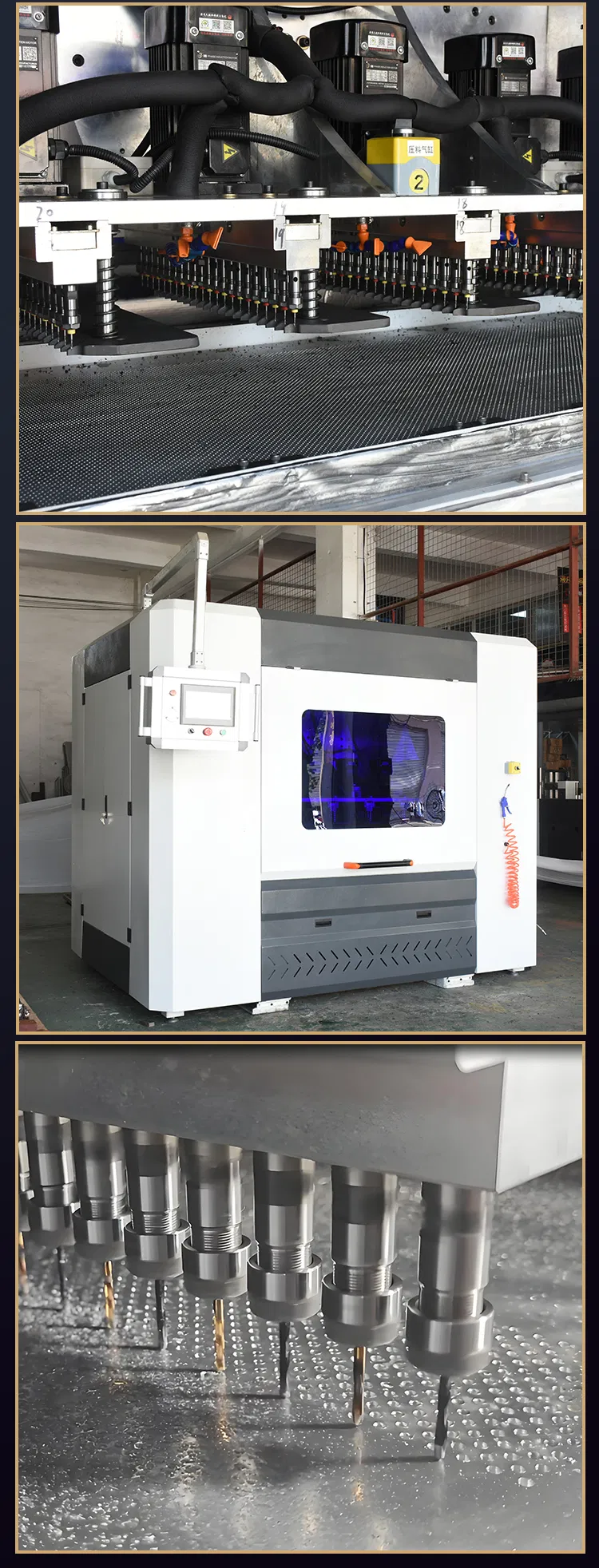

This machine tool is designed and manufactured specifically for punching new types of plastic rubber sheets. Featuring a vertical structure, it provides precise control over the X, Y, and Z axes. Controlled by a CNC touch screen, it can automatically drill up to 220 holes in one clamping.

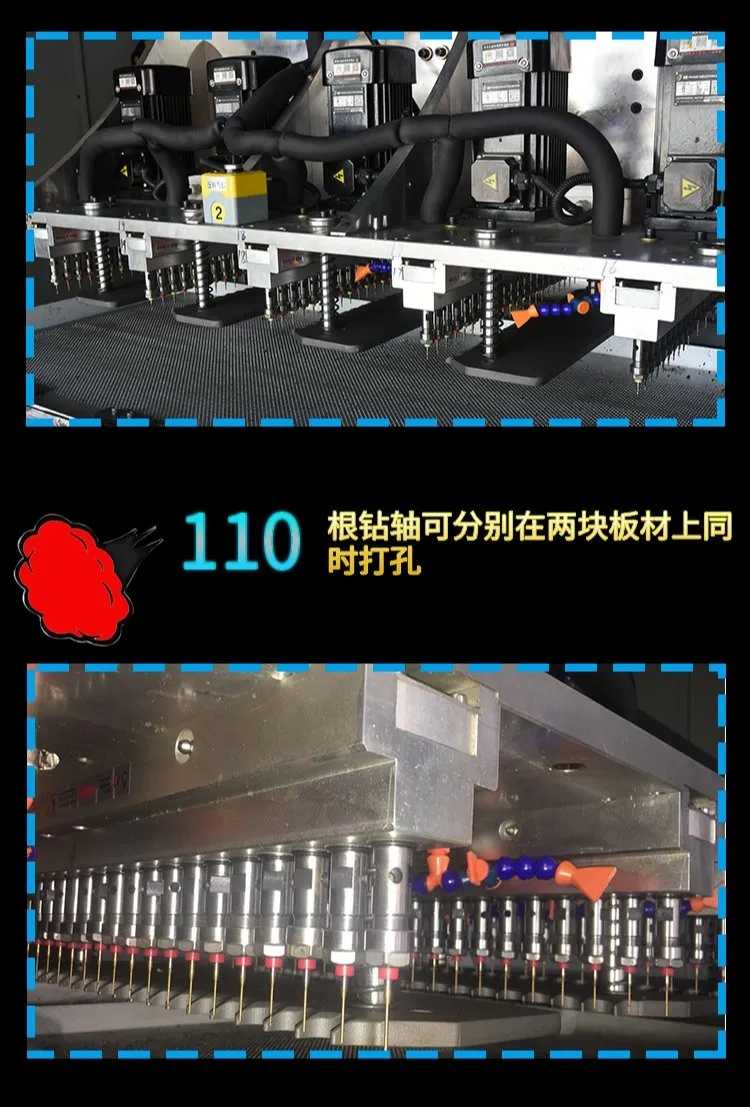

Equipped with a dual station layout, the 110 drill shafts per station allow for simultaneous operation on two boards. Users can simply input hole spacing values on the touch screen, and the machine moves automatically to the desired positions. It is foolproof, fully automated, and highly efficient for industrial production.
| Drilling diameter range | 1.8~6.5mm |
| Drilling pipe wall thickness | thickest 15mm |
| X-axis power servo motor | MS1H3~13C15CD~T331R~1.3KW * 2 |
| Y-axis power servo motor | MS1H3~18C15CD~T331R~1.8KW * 1 |
| Z-axis power brake motor | MS1H3~13C15CD~T334R~1.3KW * 2 |
| Drilling power head motor speed | adjustable 1500-3000r/min |
| X-axis idle travel speed | 0~3600mm/min |
| Y-axis idle travel speed | 0~2400mm/min |
| Z-axis idle transition speed | 0~1200mm/min |
| Mechanical weight (Host) | 3000kg |
| Main mechanical dimensions | 2800 * 2600 * 2500mm |
| Chiller Dimensions | 1300 * 600 * 1250mm |

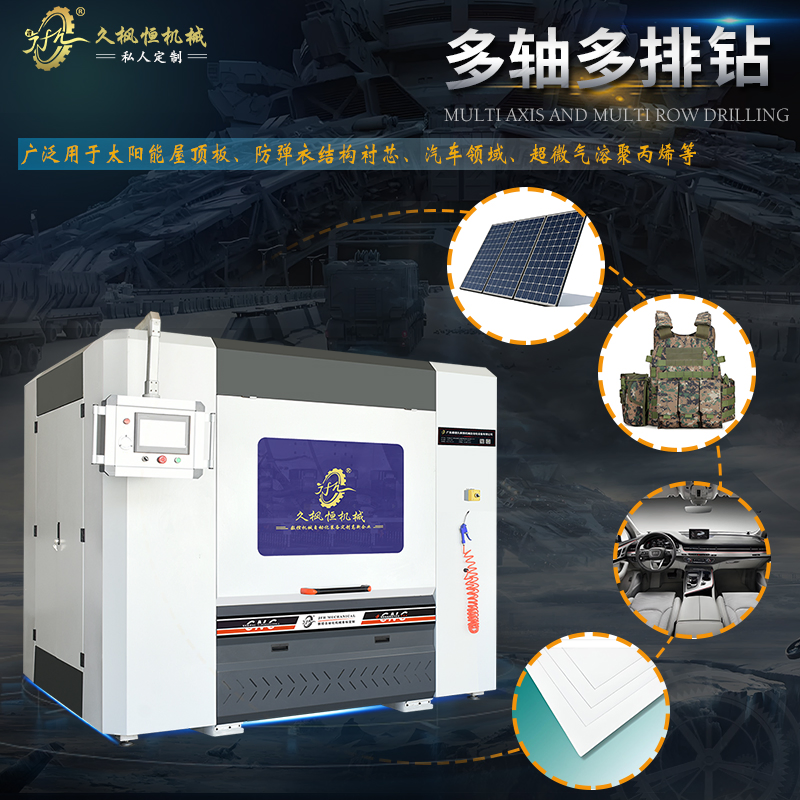

The dual station layout with multiple drill shafts achieves efficient multi-axis and multi-row drilling, significantly increasing throughput for large orders.

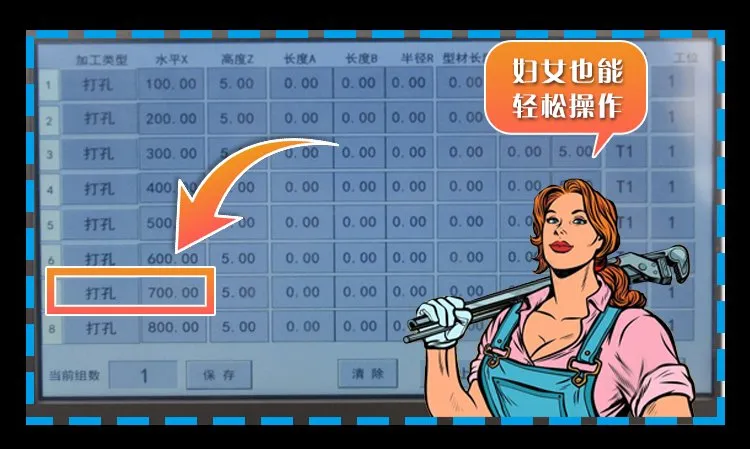

Adopts CNC touch screen control with a simple, mature interface. Multiple parameters can be pre-stored and called instantly, reducing labor costs and failure rates.

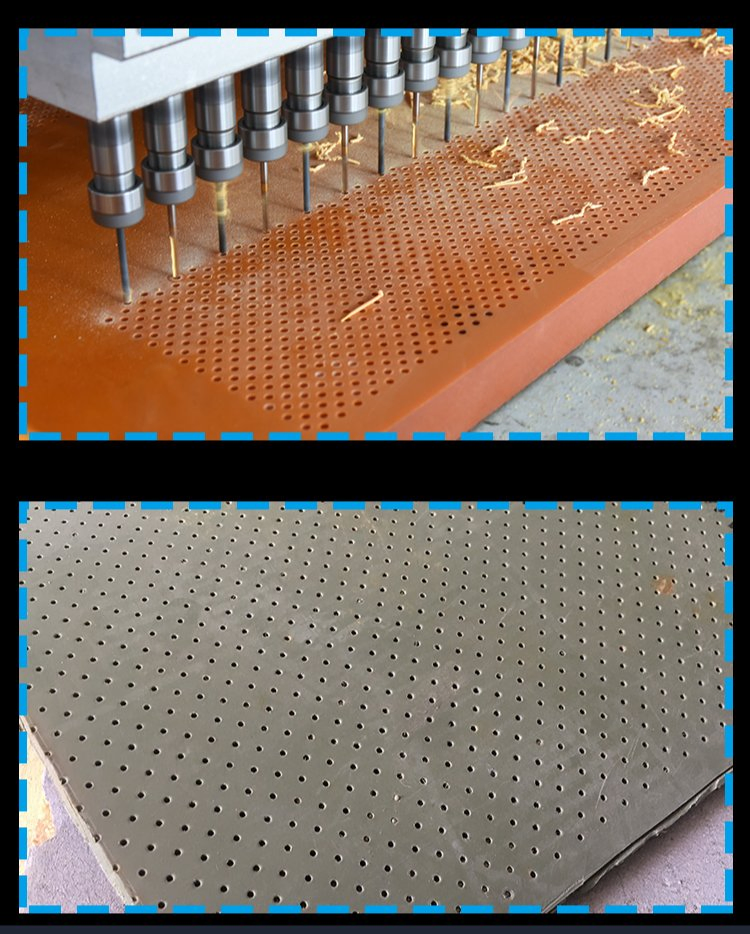

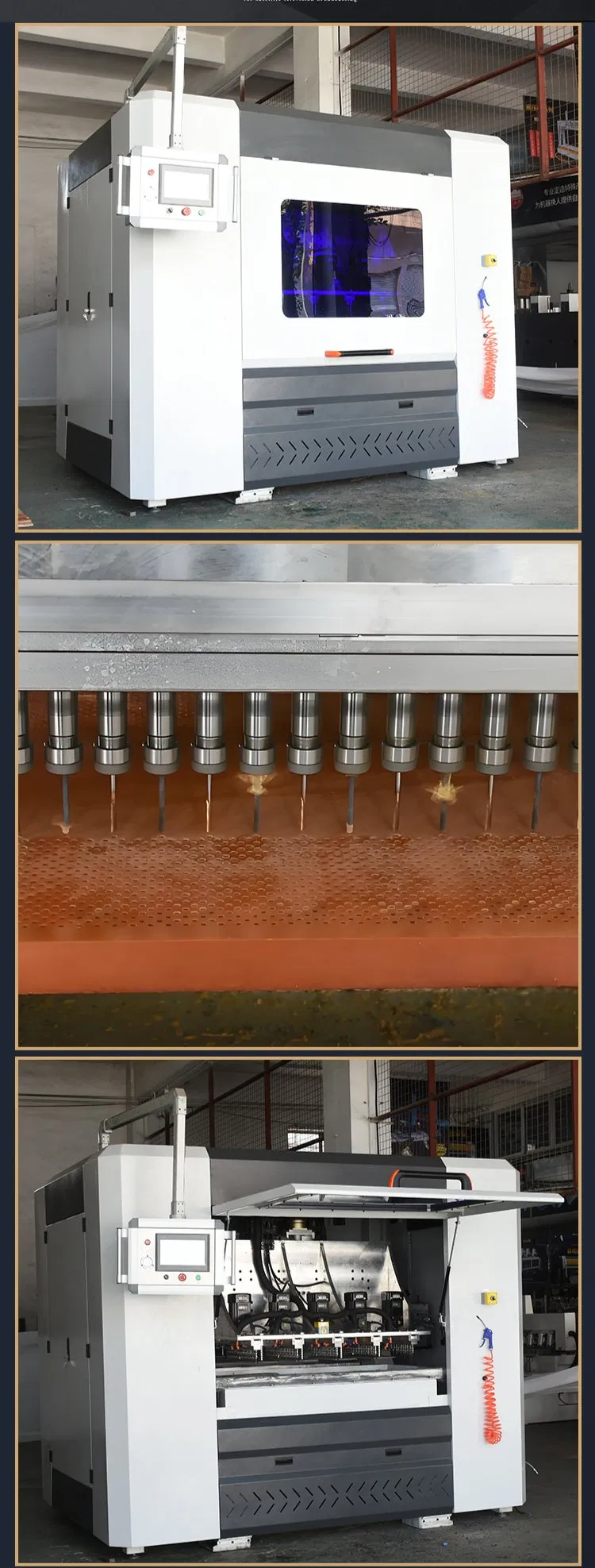

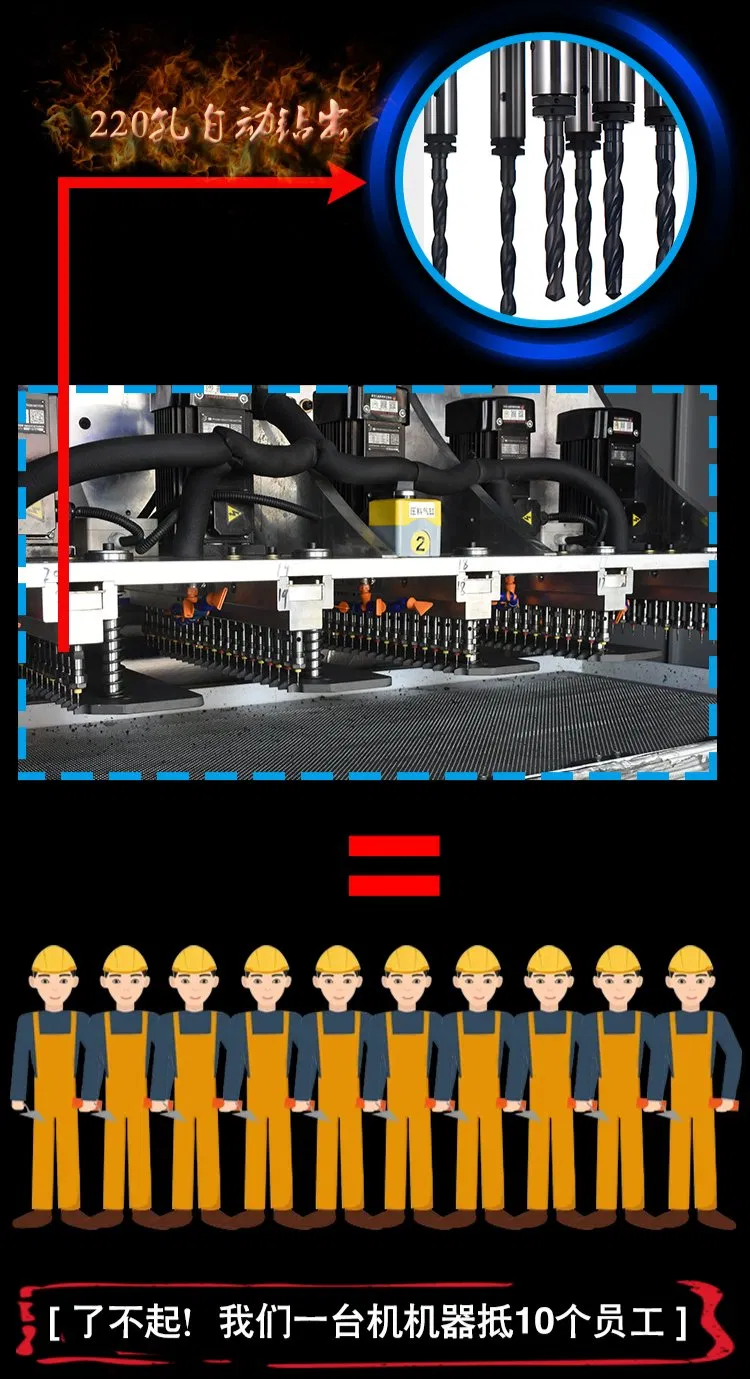

One clamping achieves automatic drilling of up to 220 holes. By inputting hole spacing values, the machine ensures high precision across multiple rows and columns.

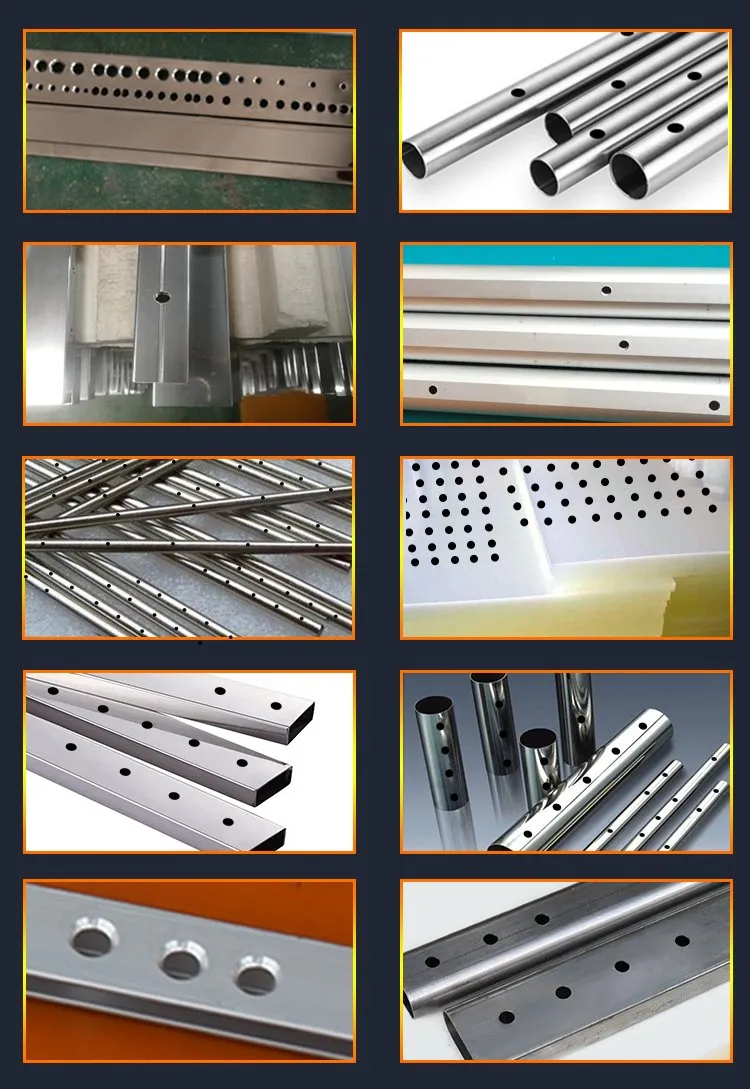

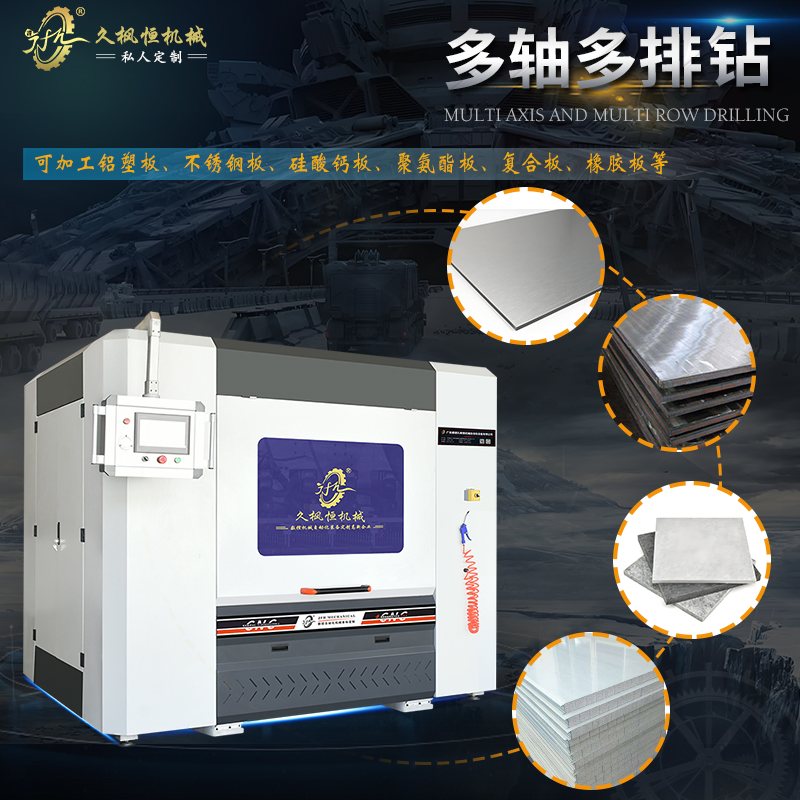

Wide Range of Applications: Ideal for aluminum plates, electric wood panels, stainless steel, calcium silicate panels, sound-absorbing panels, density boards, and rubber panels. Widely used in new energy batteries, automotive interiors, 5G antenna covers, and solar photovoltaic sectors.
