Product Description

📊 Basic Info.
Model NO.
TP-600
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01
Performance
High-End CNC Machine Tools
Certification
CE, ISO 9001, Duns
Condition
New
🔍 Product Description

TP-600 High Efficiency Machining Center

  • ✅ 20000 RPM direct type spindle with high efficiency and low deviation.
  • ✅ Heavy machining guideway and high precision ball screw for X/Y/Z axis.

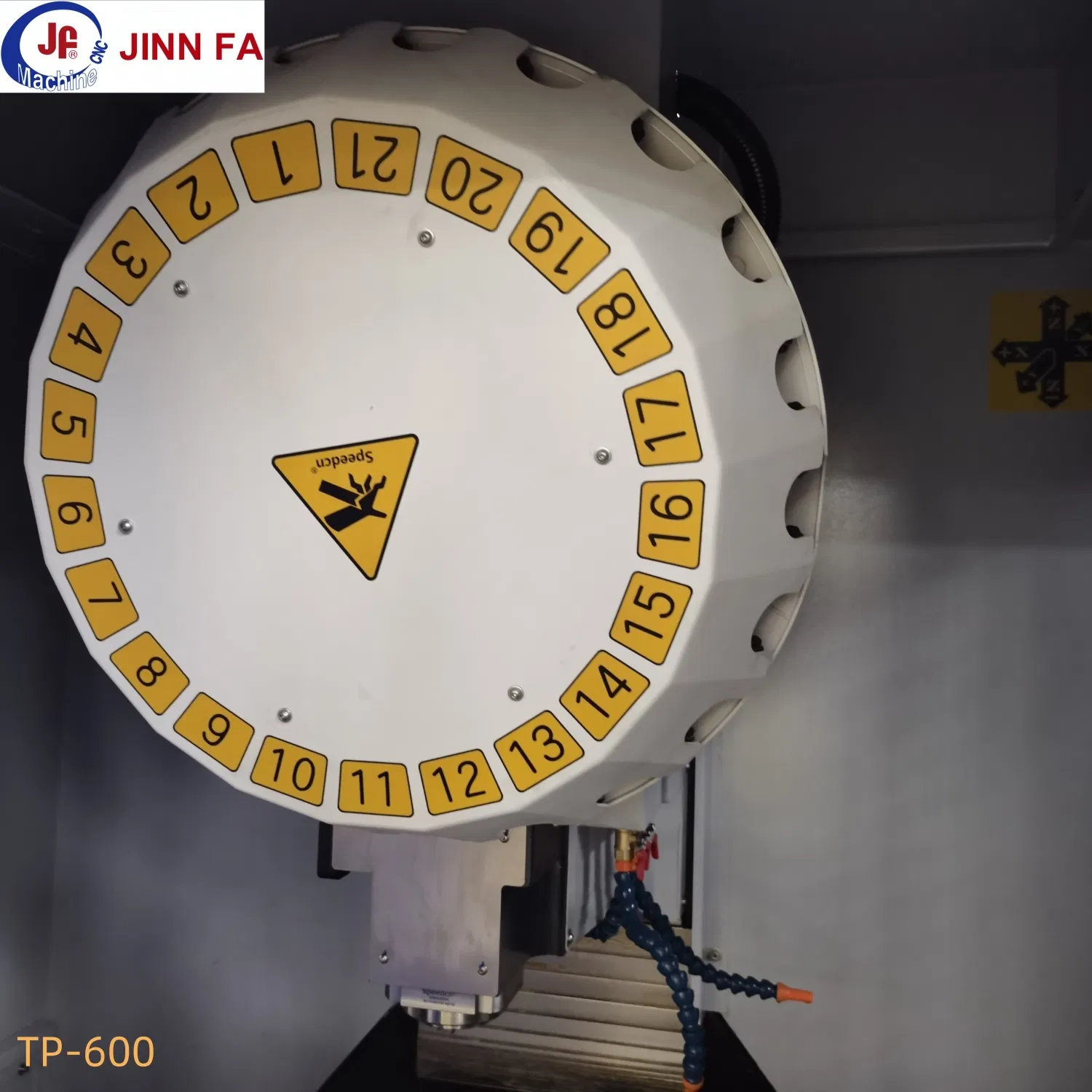

  • ✅ Standard 16 T / 21 T tool magazine with fast tool change.
  • ✅ Reinforced main shaft head with ribs for stable supporting technology.

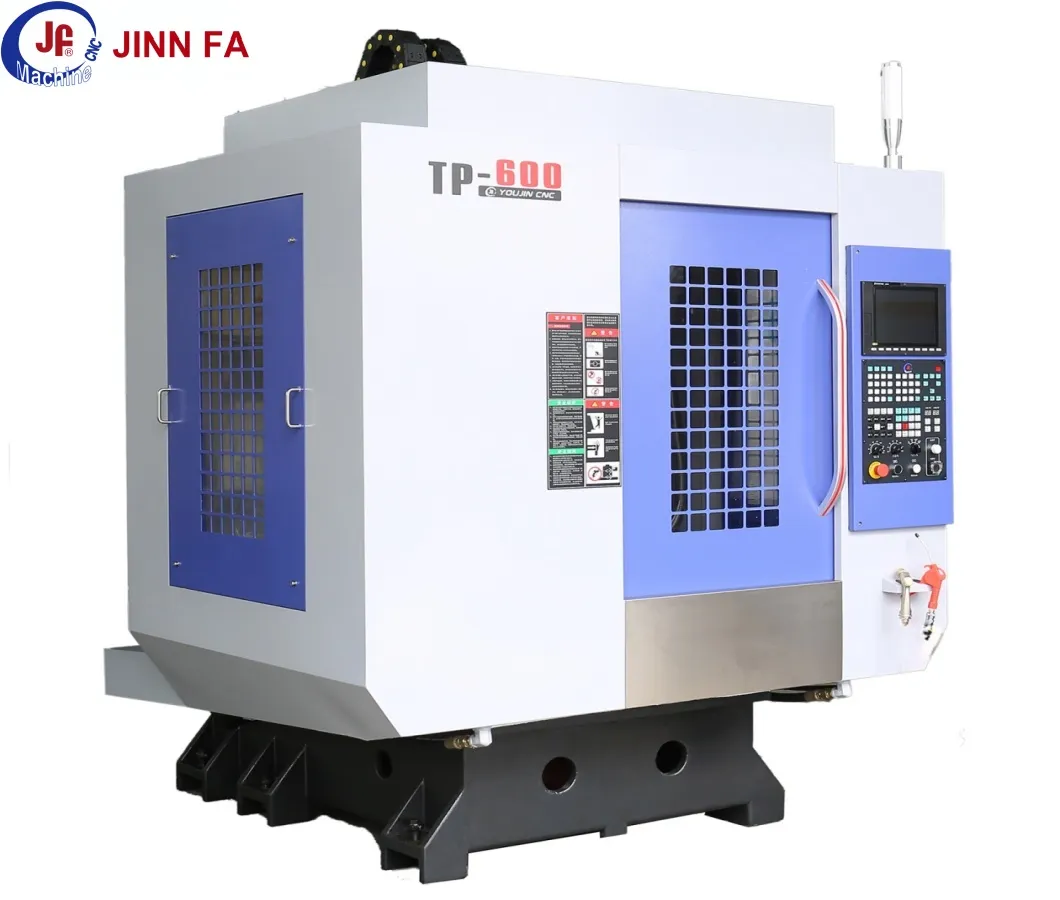

Machining Center View 1

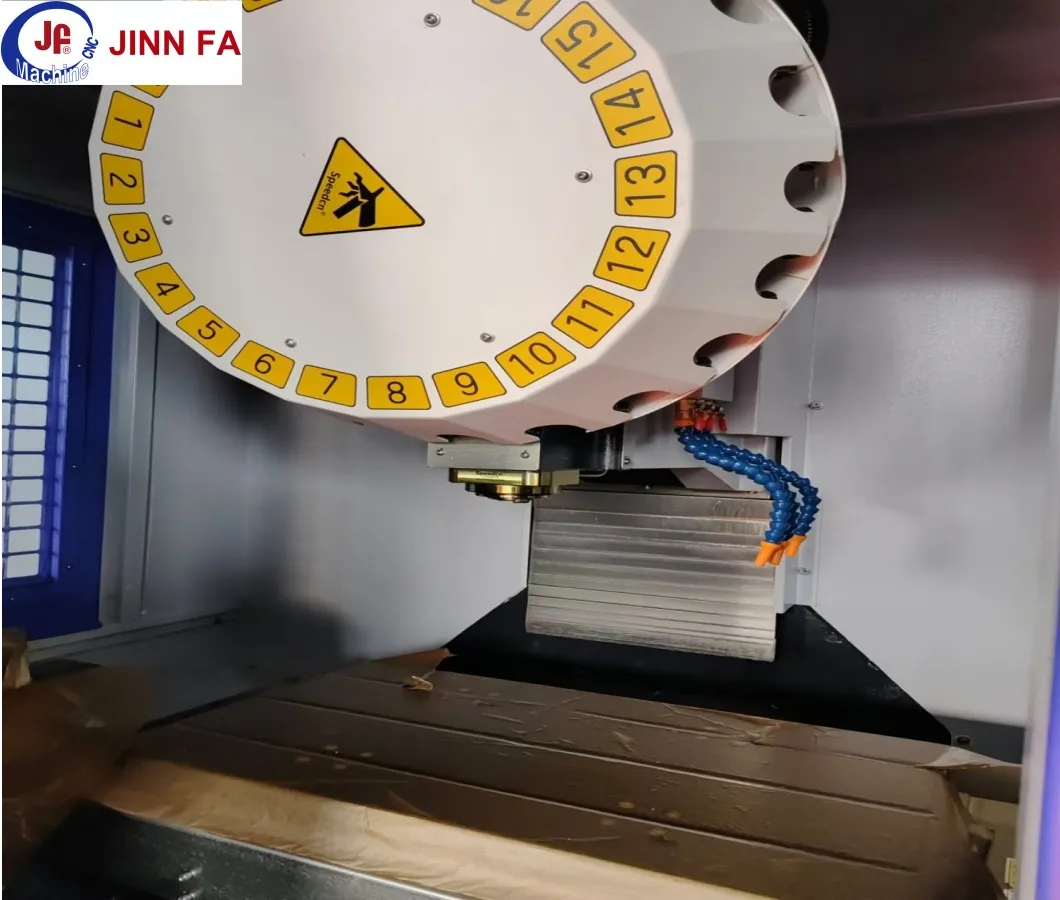

Machining Center View 2
📝 Product Parameters
ITEM UNIT TP-600 TP-700 TP-800
X TRAVELmm600700800
Y TRAVELmm400450500
Z TRAVELmm300330330
SPINDLE NOSE TO TABLEmm150-480150-480160-490
TABLE SIZEmm700x420850x4001000x500
MAX LOADINGKg250300350
SPINDLE SPEEDr.p.m12000/20000/2400012000/20000/2400012000/20000/24000
SPINDLE MOTORkw5.55.55.5
RAPID FEED RATE (XY)mm/min480004800048000
TOOL MAGAZINET16T/21T16T/21T16T/21T
MACHINE WEIGHTKg280031004000
⭐ Our Advantages
1: Simplicity and Affordability Gang tool lathes are often more cost-effective than turret lathes due to the simplicity of their tool change process. Standard axis servos and leadscrews handle all the work efficiently.
2: Precision Simpler moving parts reduce tolerance stack up and slop. Better suited for moving parts across shorter distances with high accuracy.
3: Rapidity Utilizes slide motion for tool changes, eliminating the need for turret indexing and significantly speeding up the process.
4: Quick Installation Fast setup times with a simple set of tools and the ability to switch out blocks for specific sizes quickly.
5: Durability Robust design with fewer moving parts makes the machines less prone to errors and malfunctions.
🏭 Manufacturing & Quality

Rigorous inspection procedures are conducted throughout all phases of the manufacturing process to ensure international standards. This commitment to quality enables the production of machines that fully meet strict performance requirements.

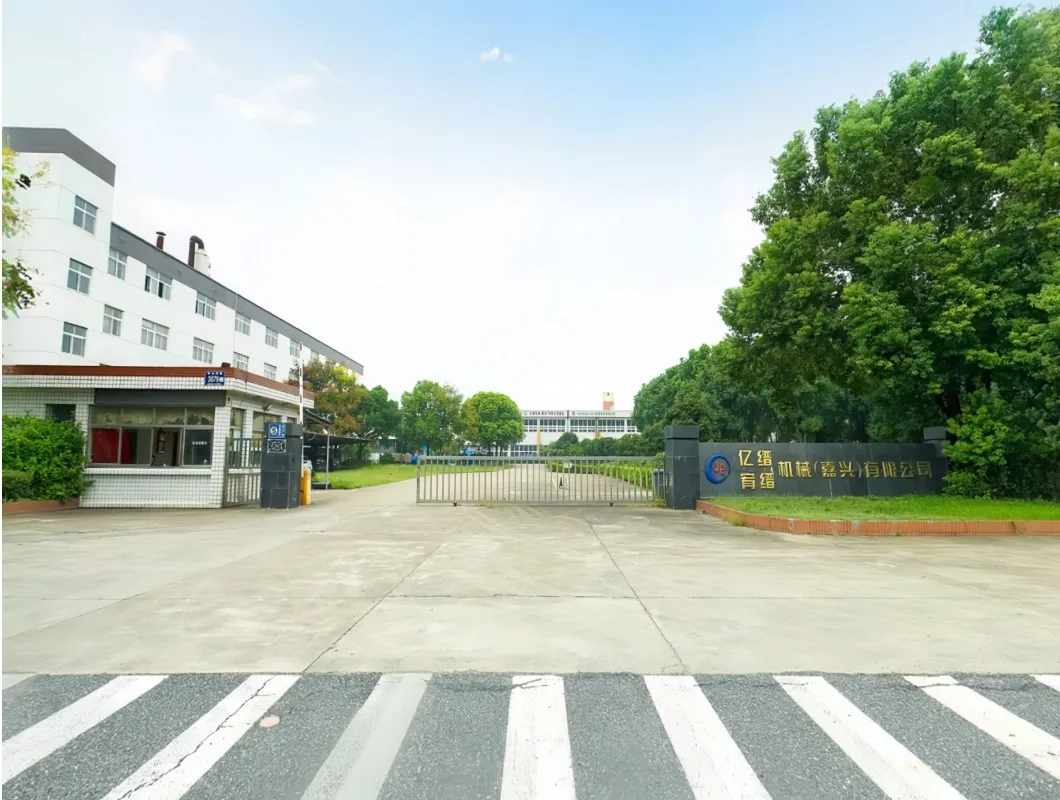

Factory Quality Control
Precision Machining 1

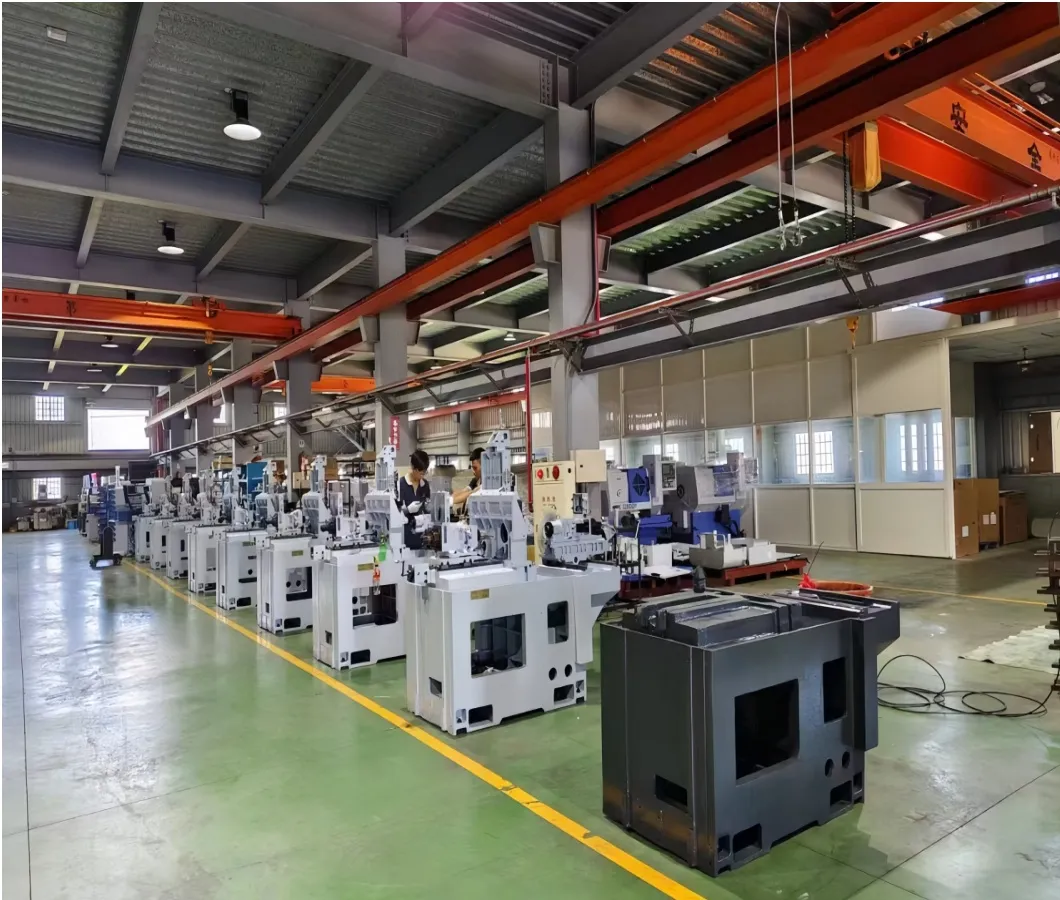

Precision Machining 2

High Accuracy | High Quality | High Efficiency

📜 Certifications
Certification 1
Certification 2

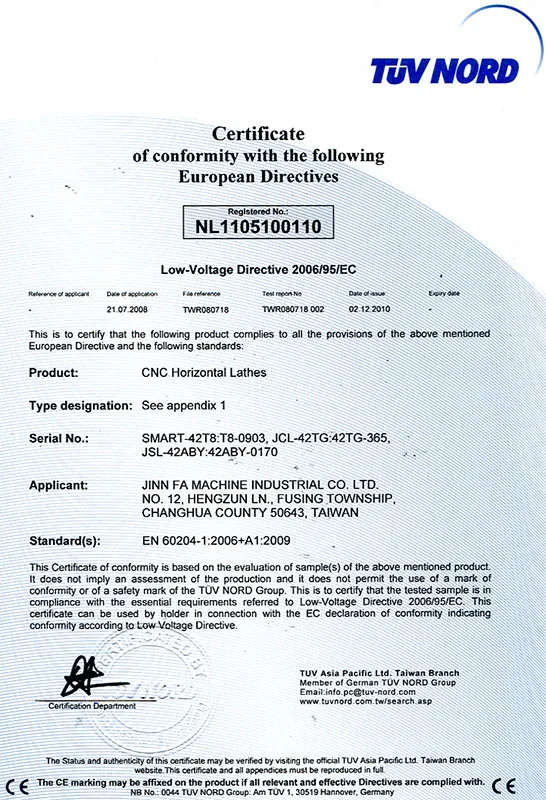

Certification 3
📦 Packaging & Shipping

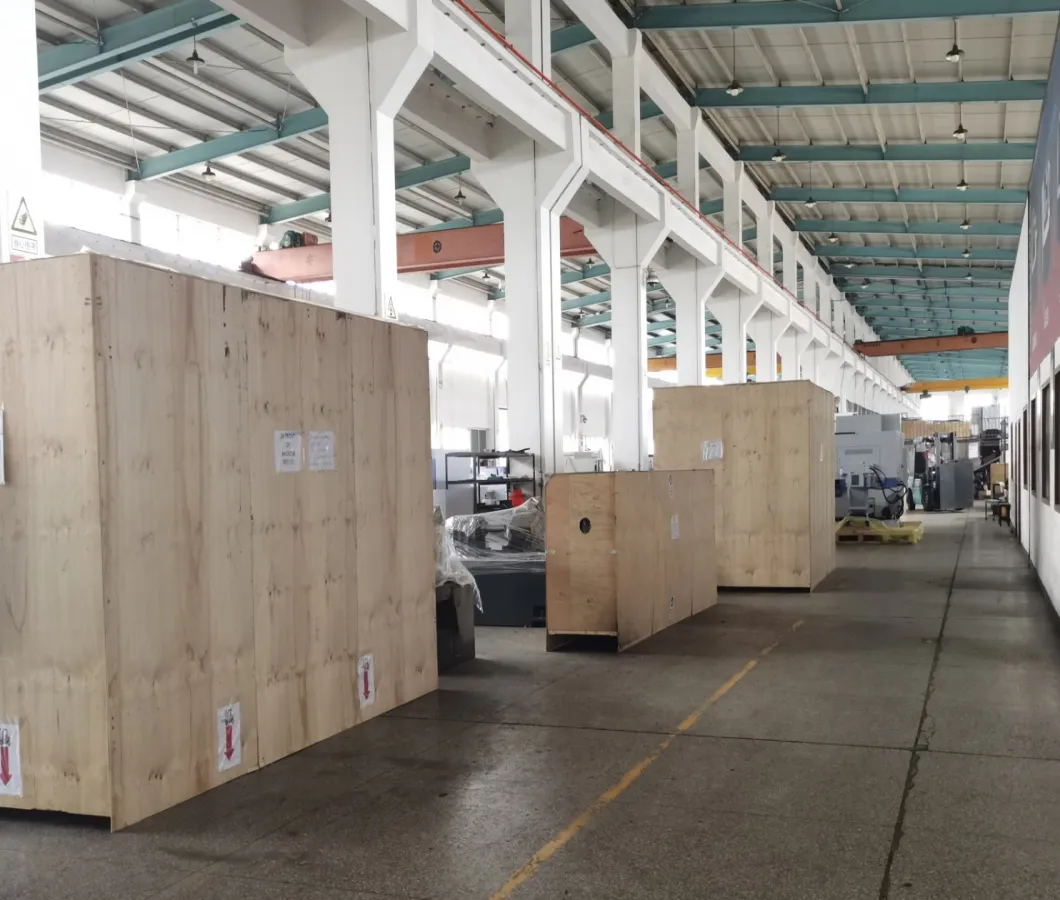

Packaging 1
Packaging 2
Packaging 3
❓ FAQ
What is your minimum order quantity and warranty?
MOQ is one set, and the warranty is one year.
What CNC system do you use?
We support FANUC, SIEMENS, MITSUBISHI, GSK, and SYNTEC, depending on your choice.
How can I choose the most suitable machines?
Please provide your specifications or product drawings, and we will recommend the best model for your specific needs.
What are the main products of your company?
We produce CNC lathes, CNC milling machines, vertical machining centers, Swiss-style automatic lathes, and precision parts.
Can you provide technical support?
Yes, we provide technical support, including on-site assistance if required (travel and service fees apply).
What are your payment terms?
T/T: 30% initial payment with order, 70% balance before shipment; or Irrevocable LC at sight.
