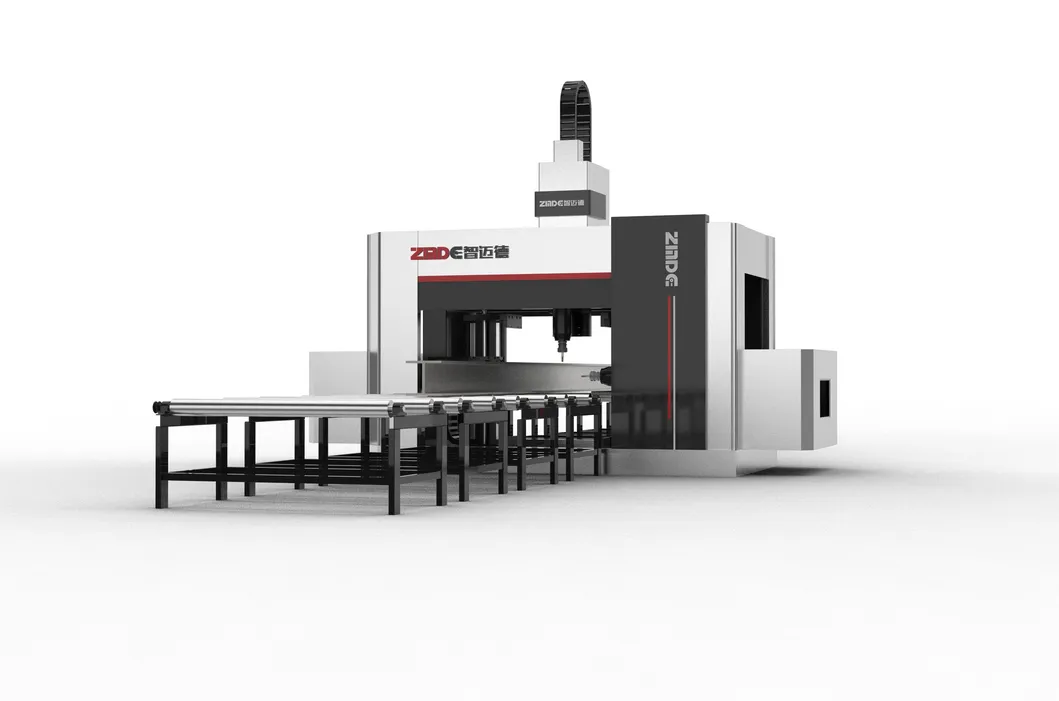

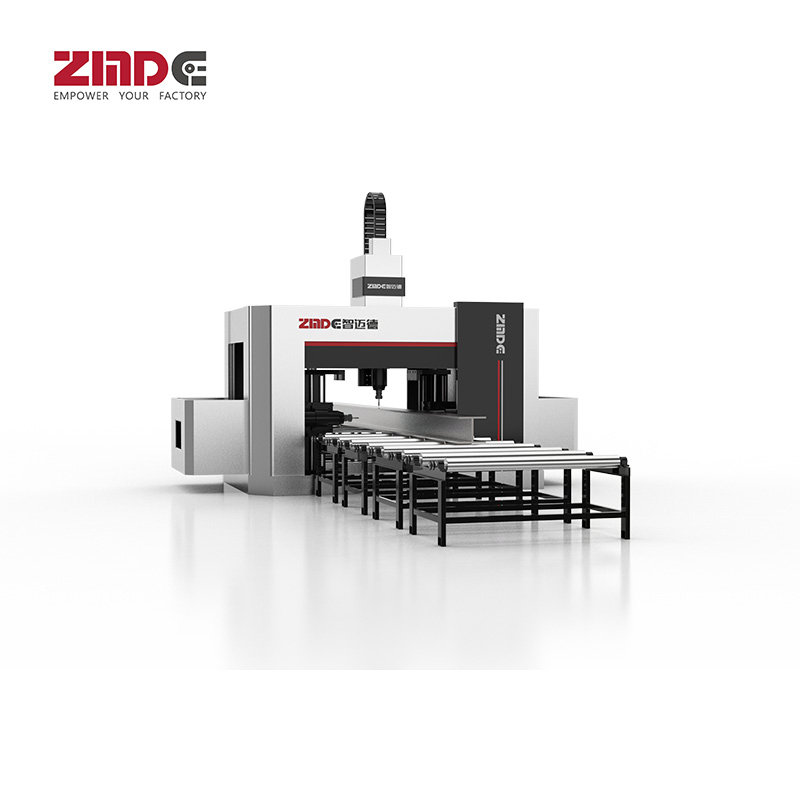

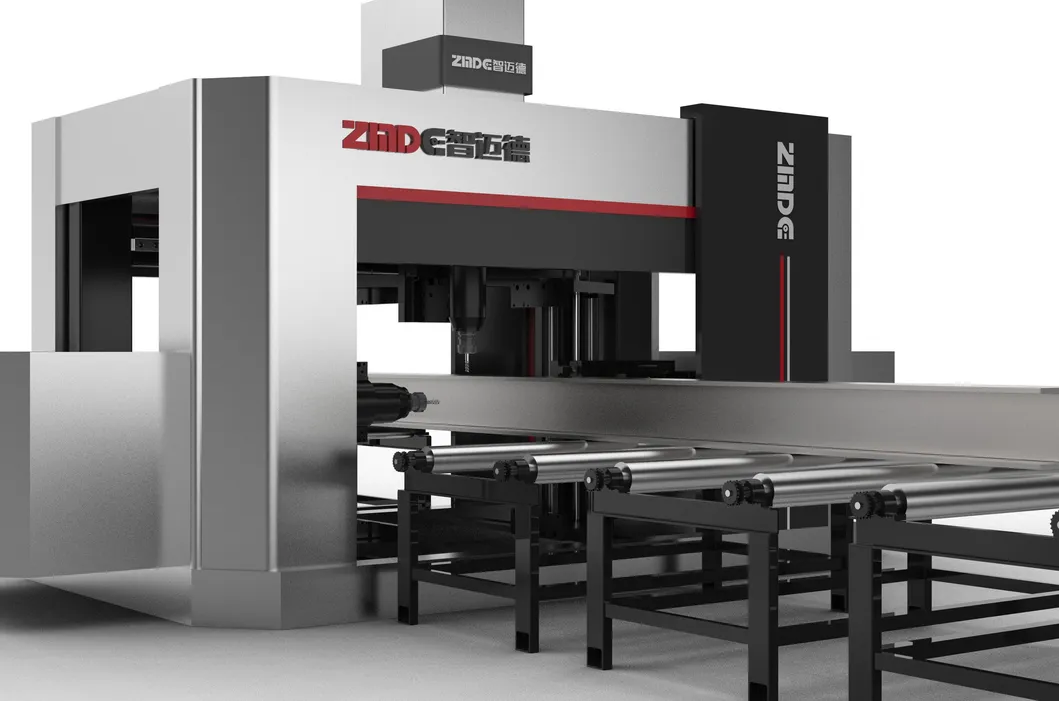

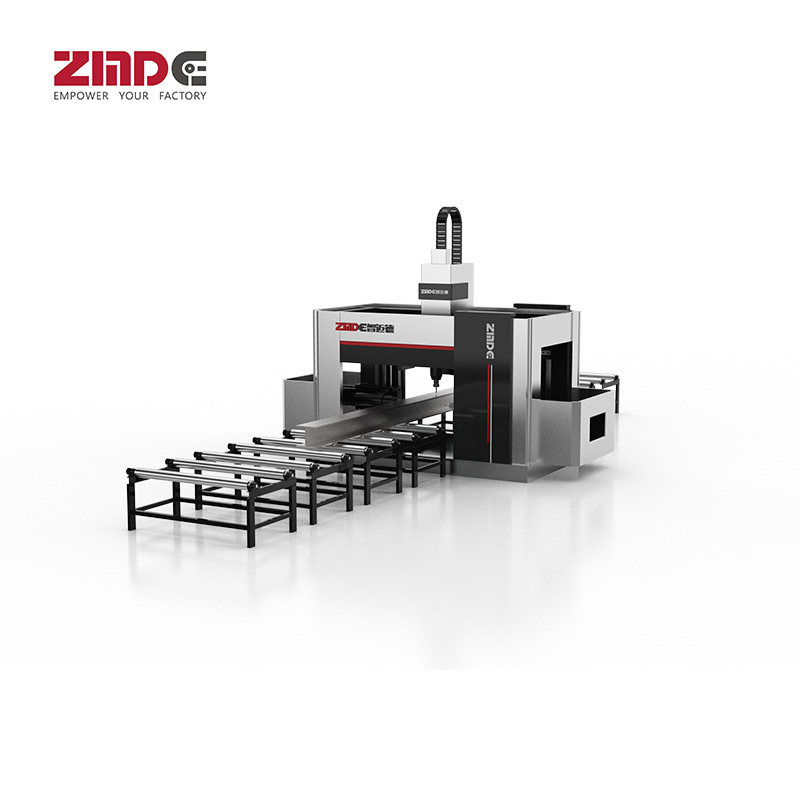

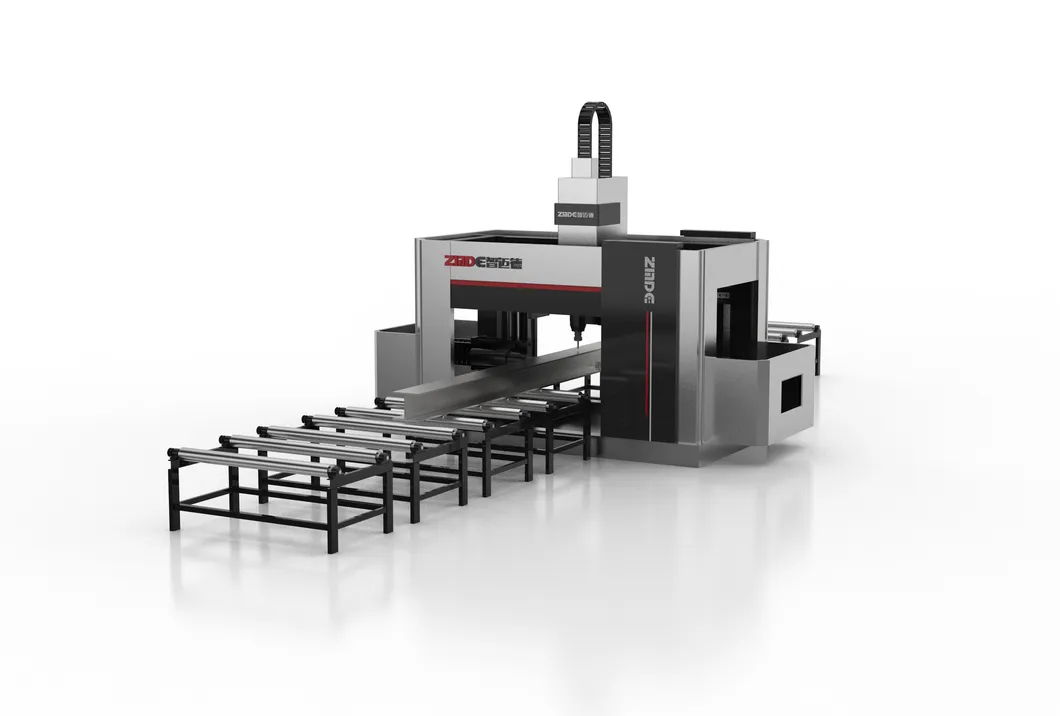

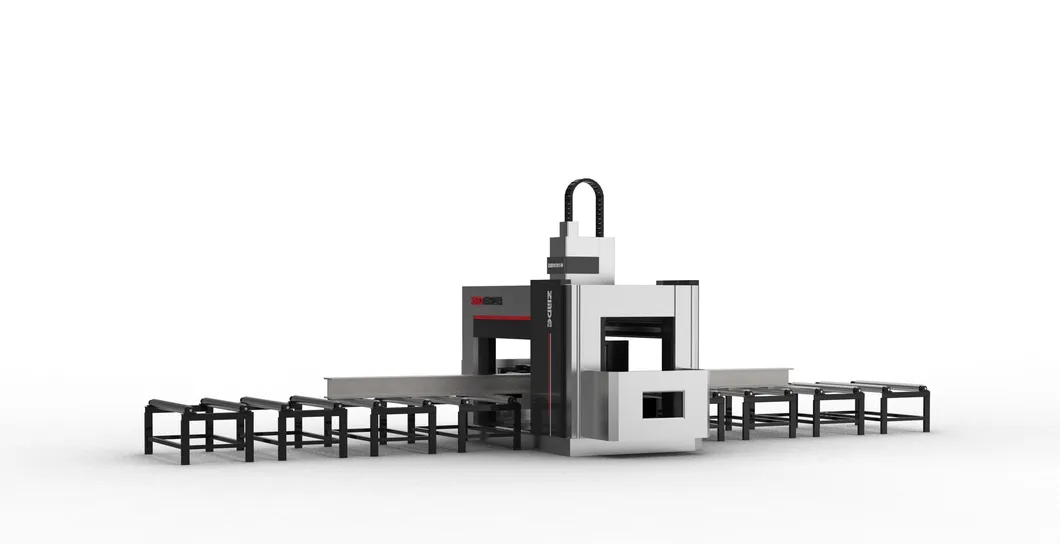

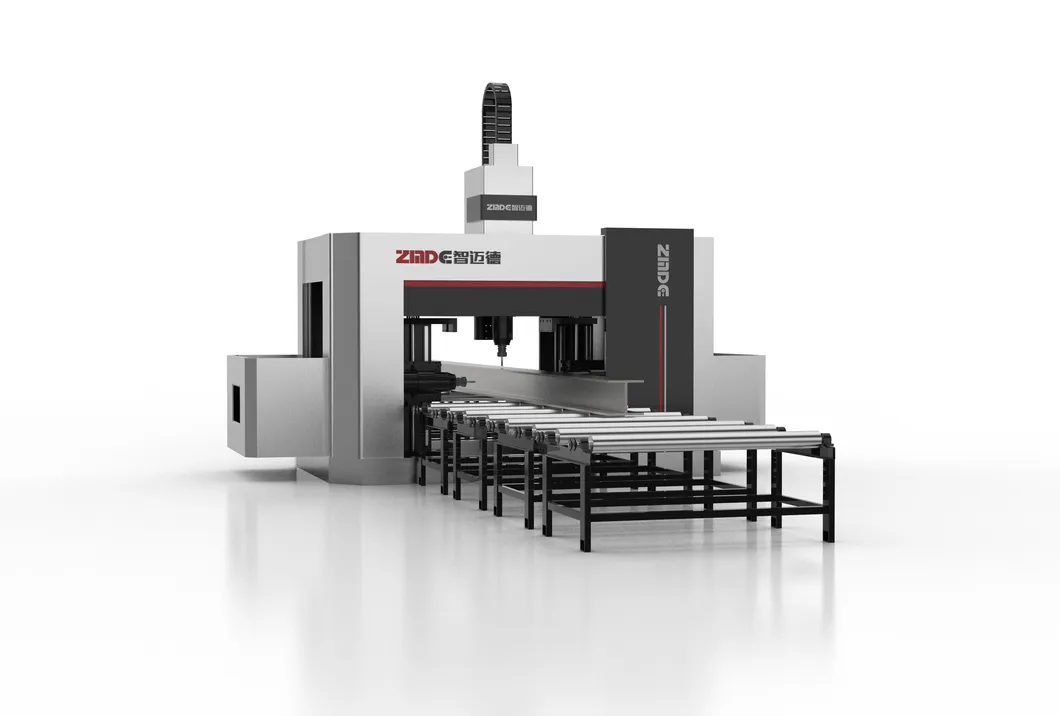

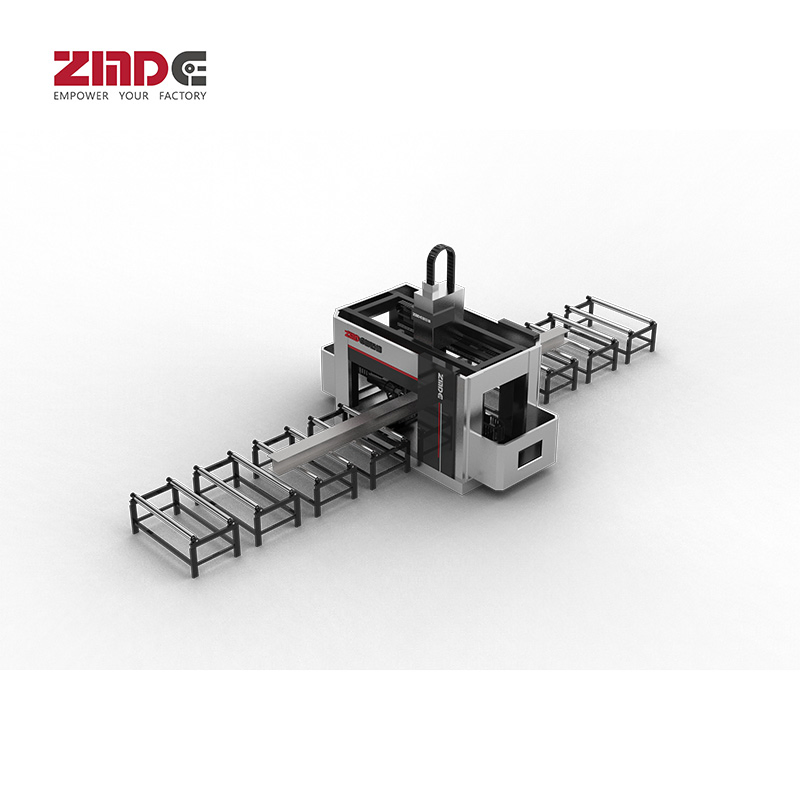

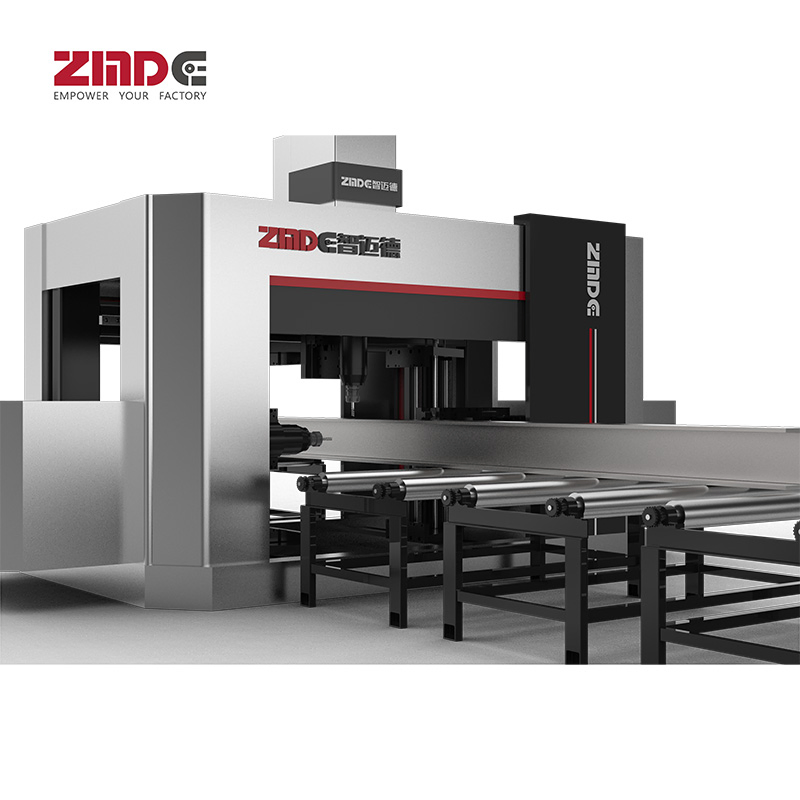

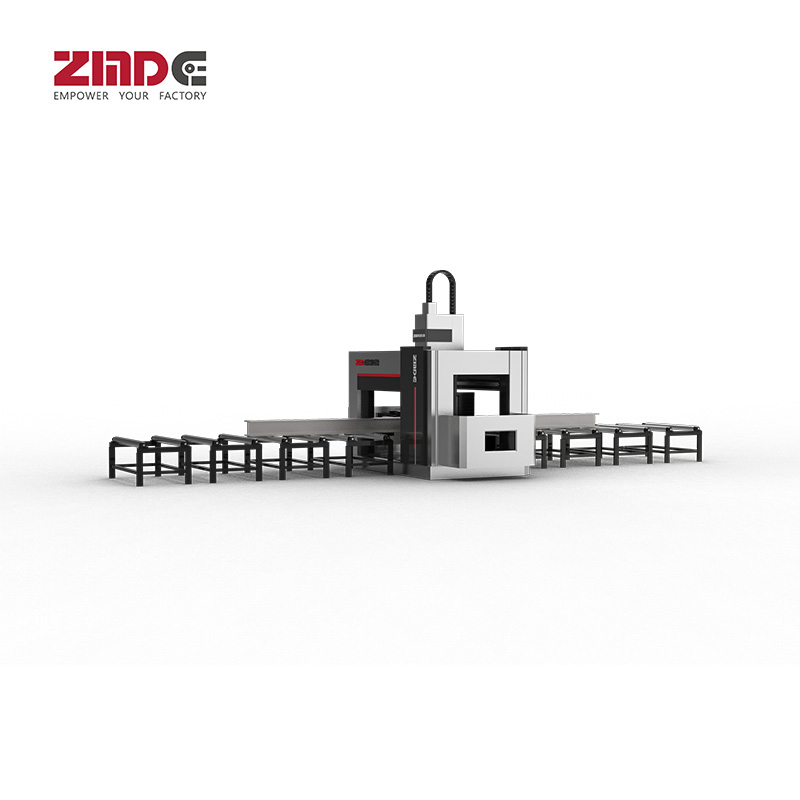

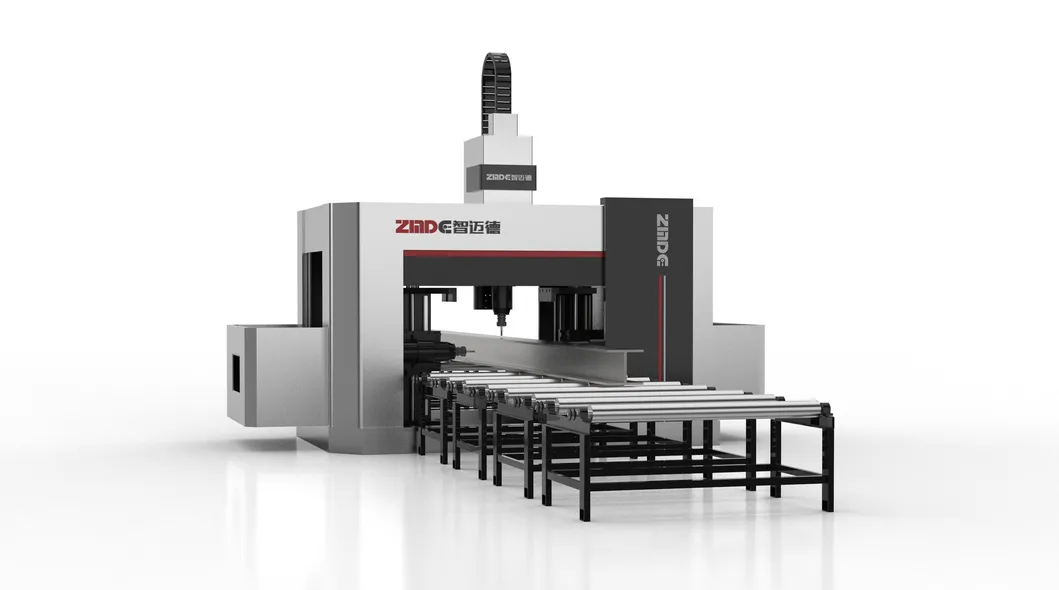

Our state-of-the-art device is engineered to drill precise, simultaneous holes on three sides of H-beam steel. Featuring 7 CNC axes, it utilizes CAD/CAM for directly generated processing programs. The machine accommodates a maximum H-beam section size of 1000×500mm and a maximum drilling diameter of 33.5mm. The control system integrates a computer numerical control system, AC servo system, photoelectric encoder, and PLC.
| Item | Model | Machine Technical |
|---|---|---|
| CNC 3D drill | ZMD-GSWZ10070/3A |
1. H-beam: 150x80 ~ 1000x700mm 2. U-beam: 150x80 ~ 1000x400mm 3. Box beam: 150x80 ~ 1000x400mm 4. Thickness: ≤80mm 5. Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7. Manual processing: 690 ~ 3000mm 8. Power source: AC 380V 50HZ 3-phase |
| Machine Model | ZMD-SWZ-74-A | |
| H Beam Processing range(mm) | 150×100-700×400 | |
| Automatic feeding length(mm) | 1500-12000 | |
| Max. Web plate thickness(mm) | ≤40 | |
| Max. weight of workpiece(kg) | 4000 | |
| Number of drilling spindles | 3×3=9 | |
| Spindle speed range(r/min) | 180-720 | |
| Max. drilling diameter(mm) | Φ33.5 | |
| Equipment Dimension L×W×H(mm) | 28000×4220×3220 | |
Founded in 2013, our enterprise is a high-tech leader specializing in the research, development, manufacturing, and service of intelligent assembly building equipment. Recognized as a national 'small giant' for innovation, our core focus includes steel structure assembly mother machines and industrial IoT solutions with intelligent control systems.

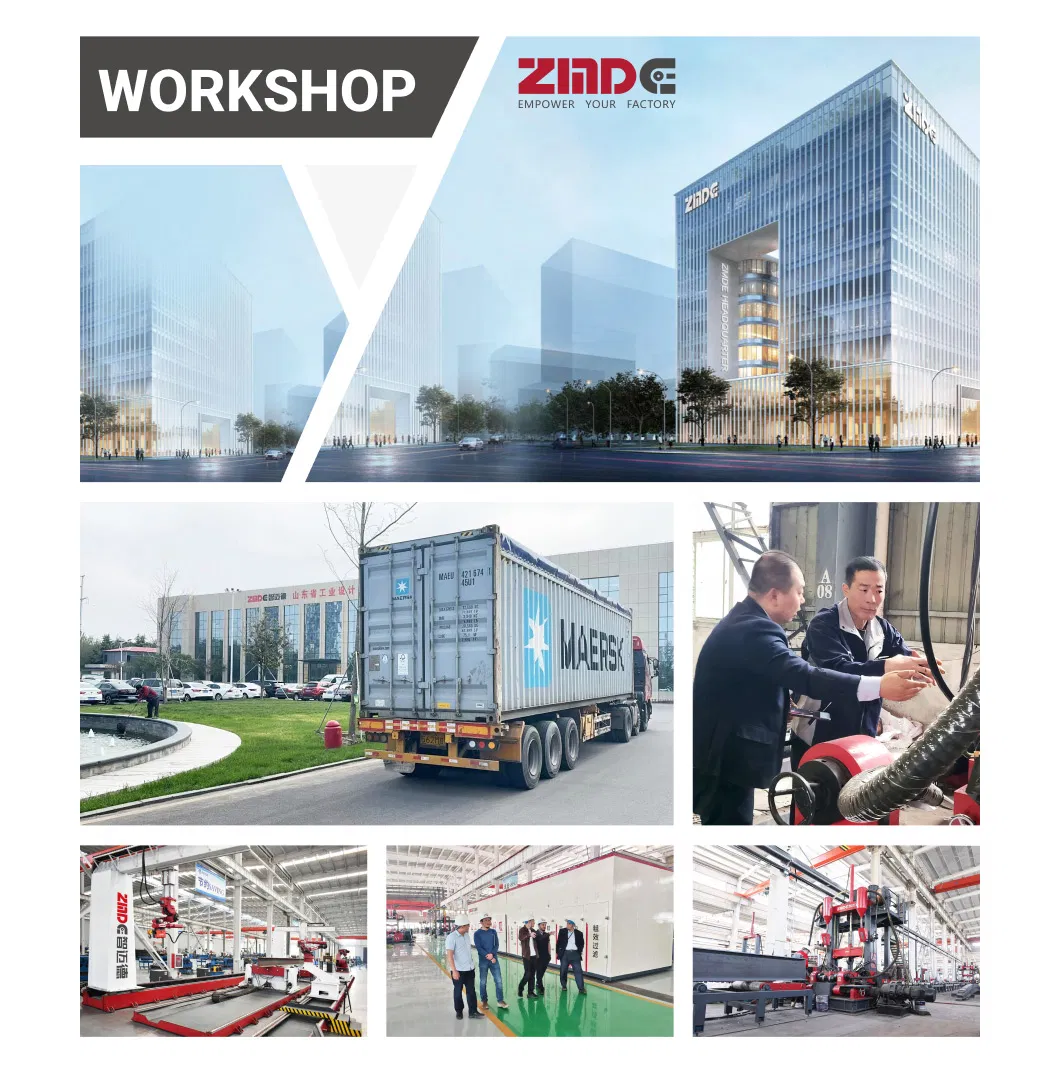

Our main facility spans 32,000 square meters, housing dedicated institutes for Artificial Intelligence in Assembled Buildings and high-end core technology R&D. We operate multiple production bases dedicated to the creation of industrial mother machines for steel beams and walls used in modern construction.
