Tyf Jq1640A CNC Rebar Sawing Threading and Grinding Production Line

1 / 5

Tyf Jq1640A CNC Rebar Sawing Threading and Grinding Production Line

Customization:	Available
After-sales Service:	We Can Reach The Scene
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

1640A

Condition

New

Certification

Material

Metal

Application

Metal Cutting & Straightening

Weight

15000 Kg

Air Pressure

0.5-0.7MPa

Automatic Grade

Automatic

Voltage

380V

Power

260kw / 48KW

Specification

35m × 10.5m × 4m

Package Size

2600cm * 600cm * 250cm

⚙️ Product Description

The Rebar Sawing, Threading and Polishing Machine is an integrated automated processing equipment tailored for the construction industry. It combines three core workflows into a continuous production line, serving as a key tool for enhancing rebar preparation efficiency and connection quality.

✂️

Precise Sawing

Cutting rebars of various diameters to preset lengths with high dimensional accuracy, ensuring consistency for structural fabrication.

🧵

Threading

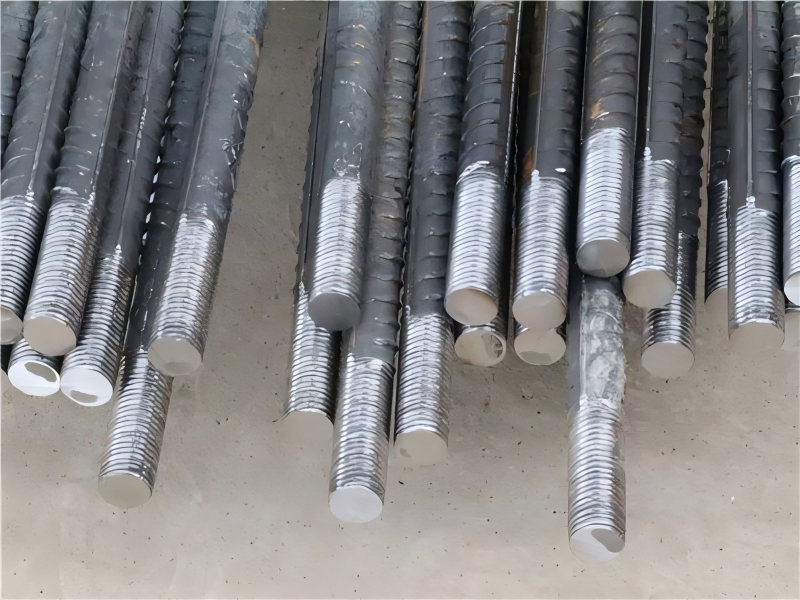

Forming standard threads on rebar ends, matching common construction specifications to guarantee stable mechanical joints.

✨

Surface Polishing

Removing burrs, sharp edges, and oxide layers from sawn ends and threaded surfaces to improve connection smoothness.

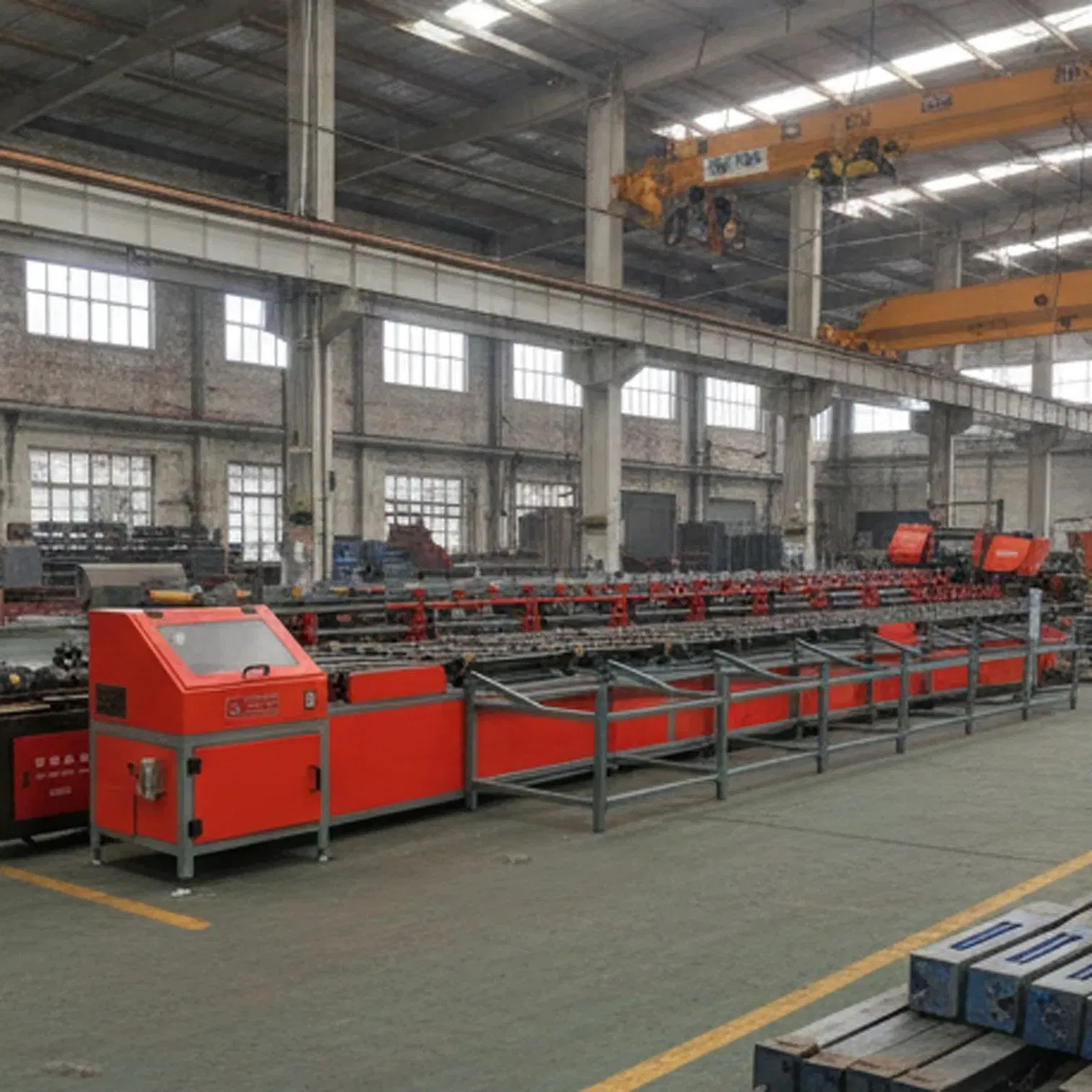

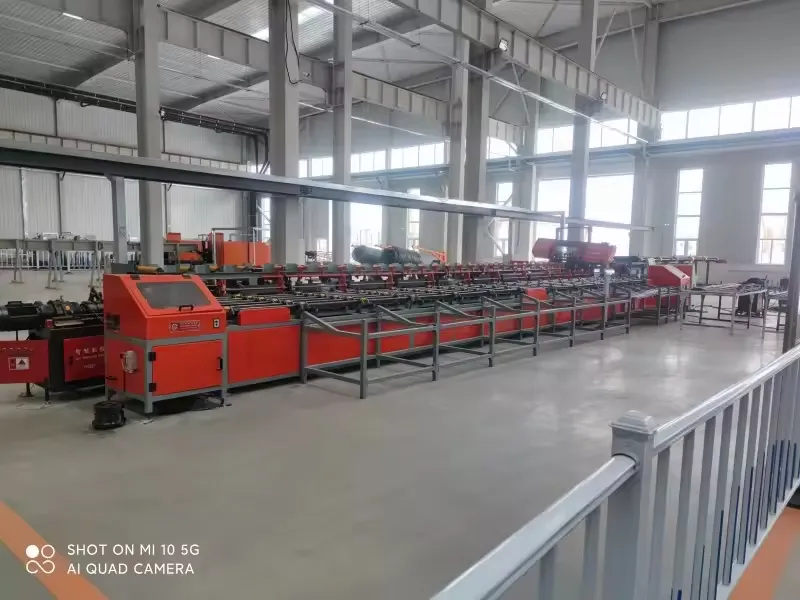

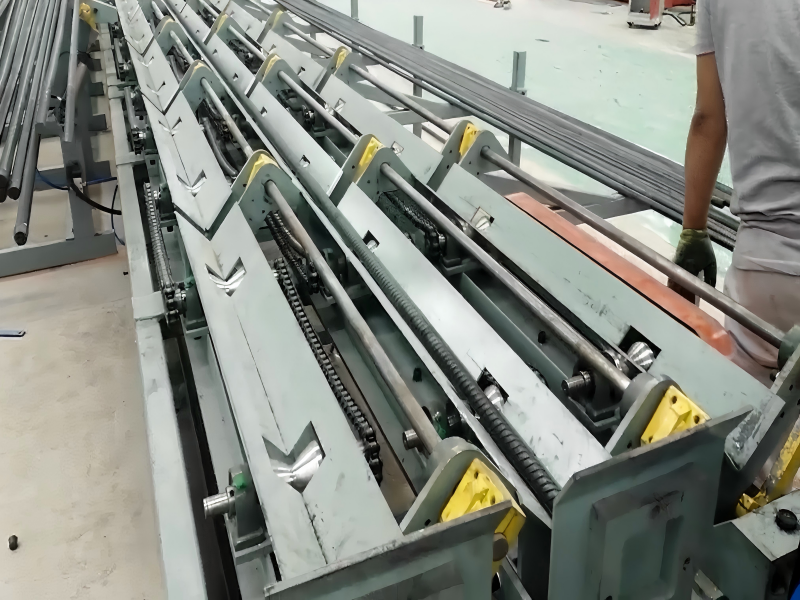

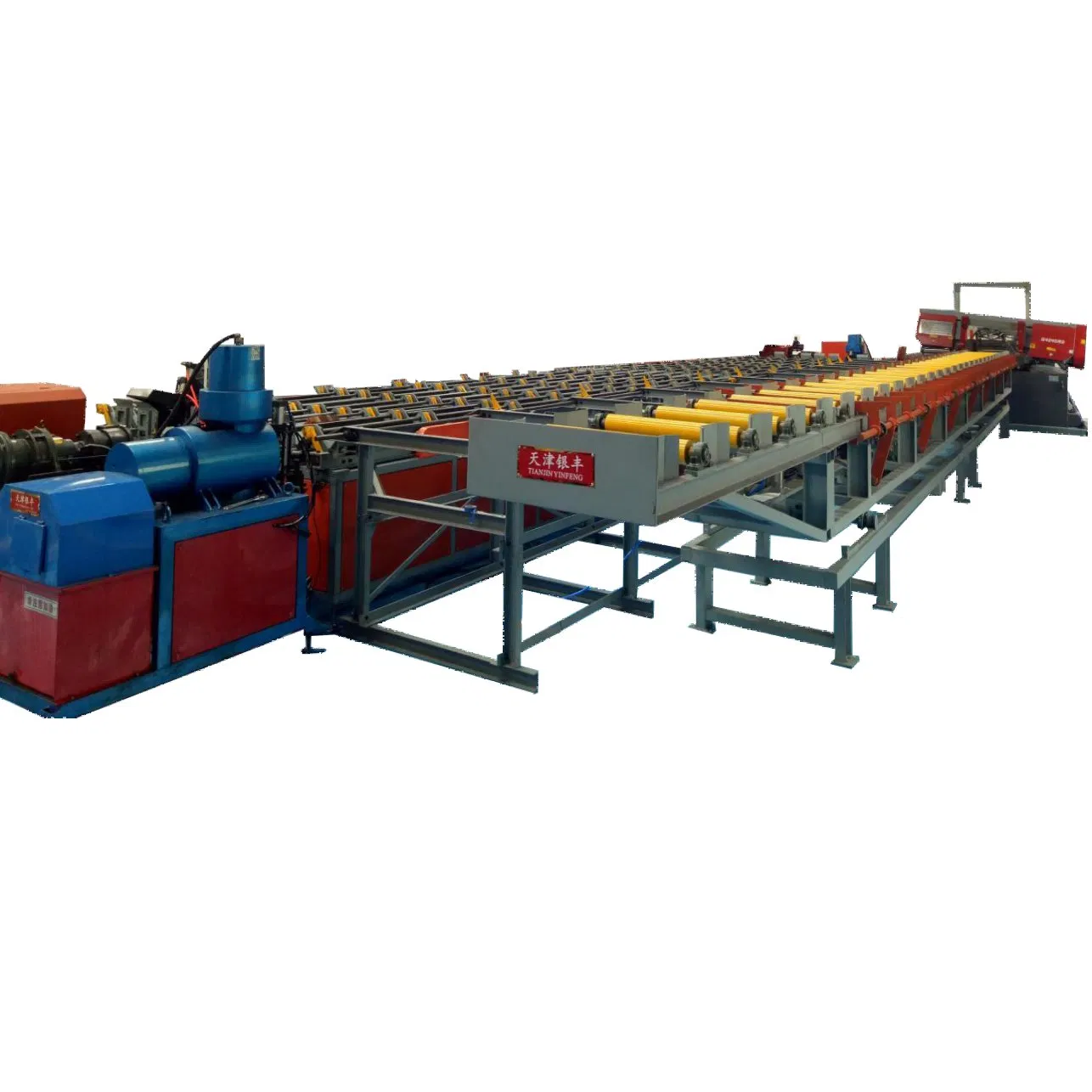

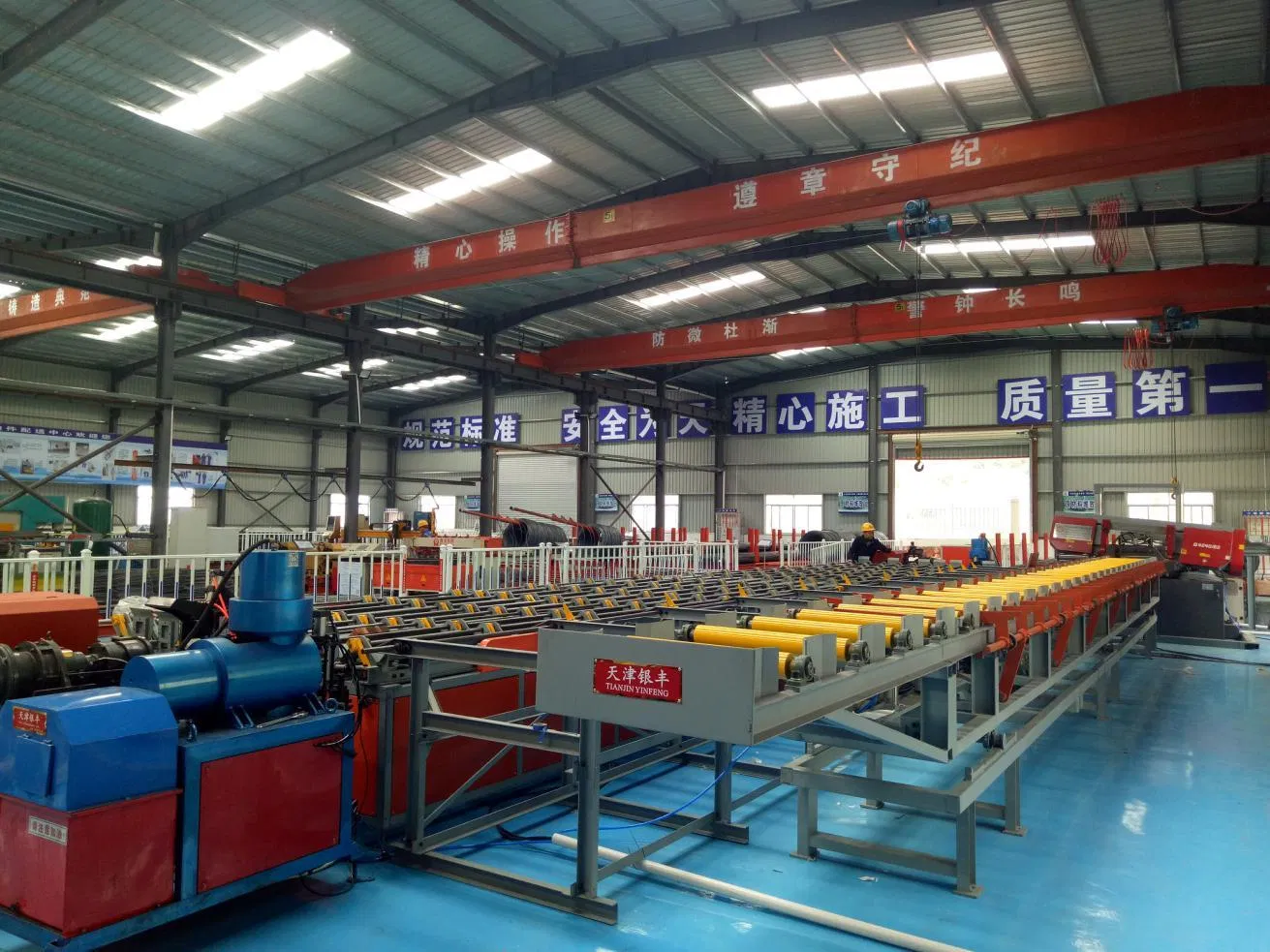

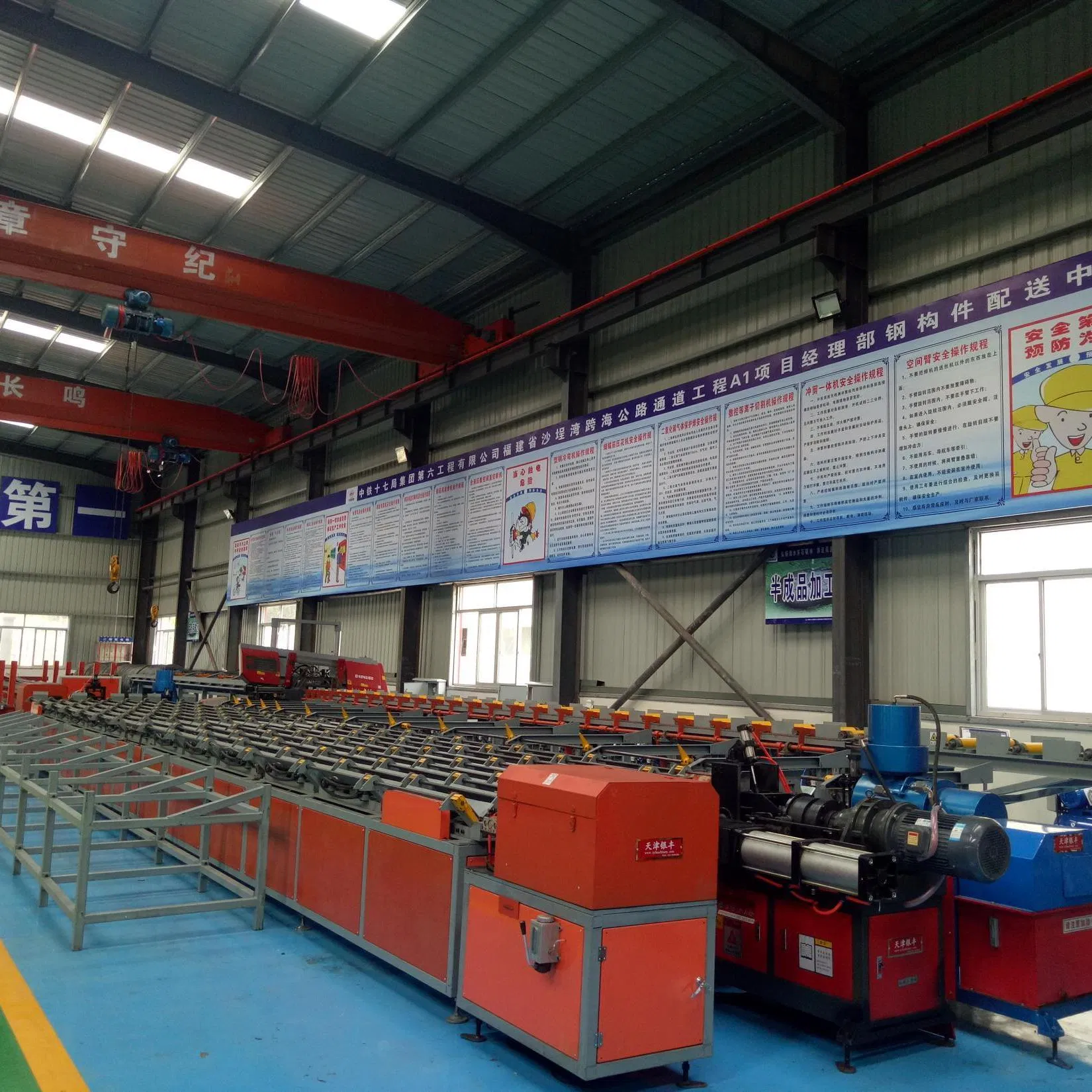

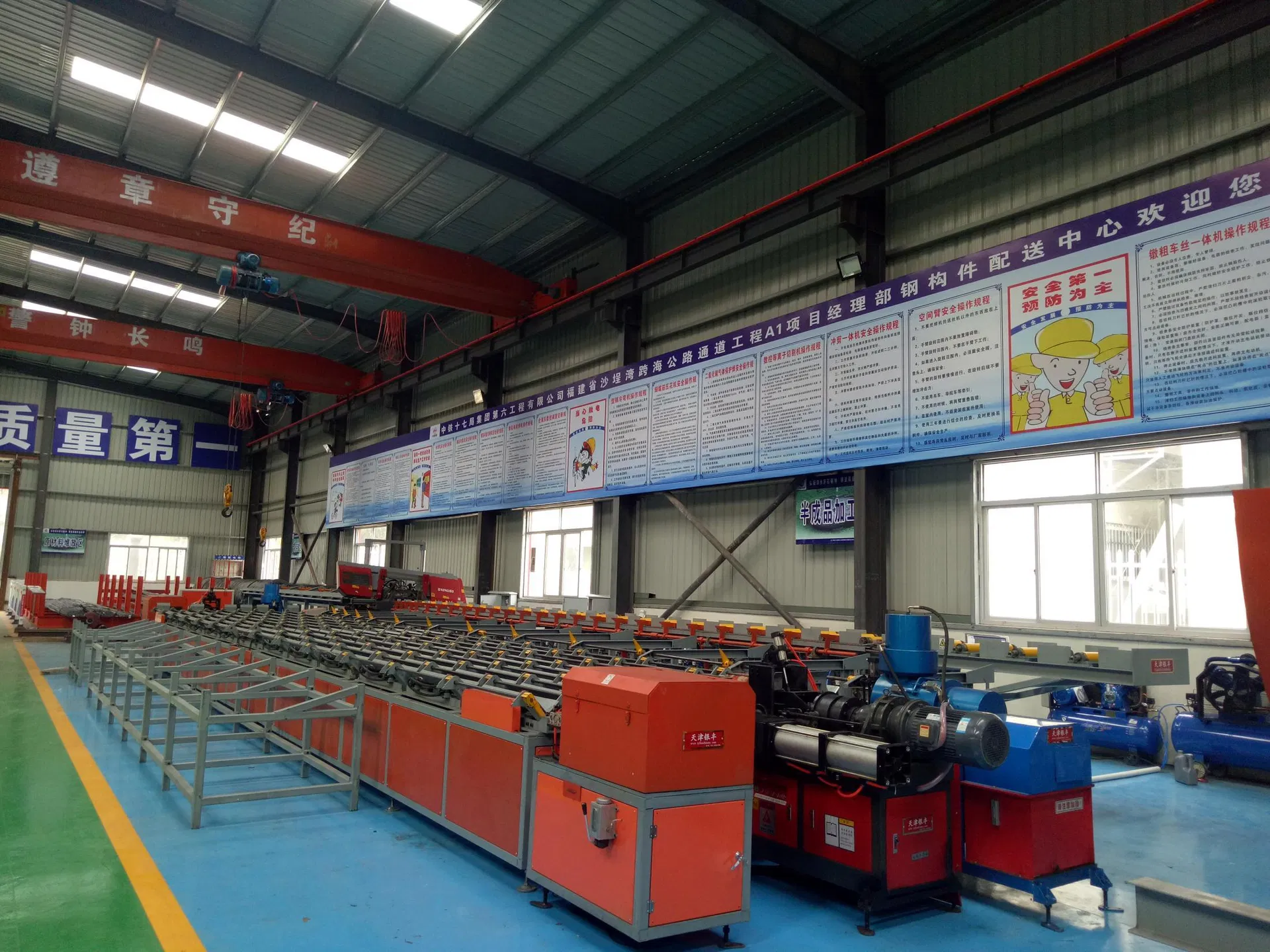

🖼️ Equipment Display

📋 Technical Parameters

Feature	Details	Feature	Details
Key Machines	PLC, Motor, Decelerator	Product Name	Steel Rolling Machine
Voltage	380 V	Usage	Automatic Control Operation
Automatic Grade	Automatic	Type	Automation
Machinery Capacity	Can Be Customized	Function	Stable Performance
Weight (KG)	15000	Packing	Carton Box / Container
Core Components	Motor/Gear/PLC/Cylinder	Quality	High Precision

❓ Frequently Asked Questions

1. What are the primary functions of this production line?

The 1640A model integrates high-precision rebar sawing, thread rolling (threading), and surface polishing into a single automated workflow.

2. Is the machinery capacity customizable?

Yes, the machinery capacity can be customized based on your specific production requirements and project scale.

3. What materials can this machine process?

It is specifically designed for processing metal reinforcing steel bars (rebar) used in large-scale construction and infrastructure projects.

4. What are the power and air pressure requirements?

The system operates on a 380V voltage and requires clean compressed air pressure between 0.5-0.7MPa for optimal performance.

5. What core components are used in the 1640A model?

The machine features high-quality components including PLC control systems, precision motors, decelerators, AI cylinders, gears, and heavy-duty bearings.

6. How is the machine protected during transport?

The equipment is typically packed in large containers or reinforced carton boxes to ensure safety during long-distance shipping.
