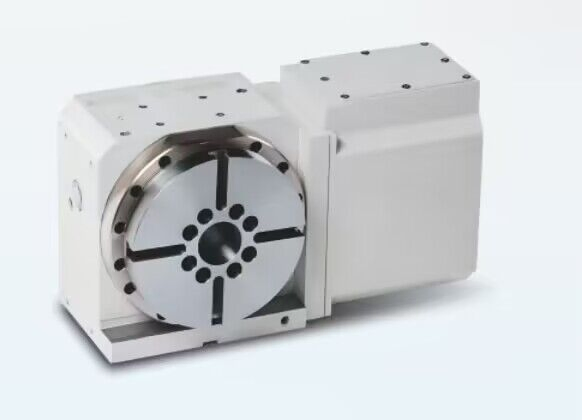

🚀 Efficient Processing: Optional four-axis turntable, achieving efficient processing.

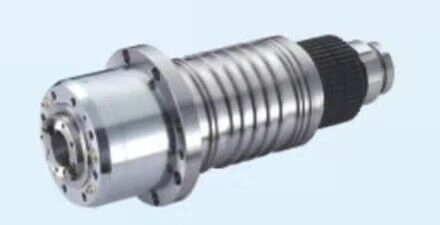

🌀 Belt-type Spindle: Reasonable labyrinth ring structure, effectively preventing the infiltration of cutting oil. Equipped with well-known brand P4 grade bearings (NSK, SNFA). Standard spindle speed is 8000rpm (higher speeds optional).

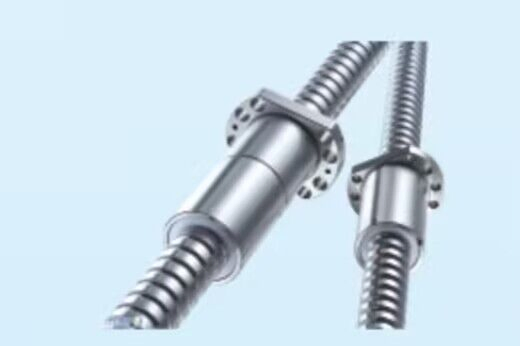

📏 High Precision: Utilizing C3 grade high-precision ball screws for reliable accuracy.
🛠️ Quick Tool Changer: Optional 16-disc tool changer, greatly improving efficiency and automation levels.
| Description | Unit | Technical Spec. |
|---|---|---|
| X axis travel | mm | 700 |
| Y axis travel | mm | 400 |
| Z axis travel | mm | 490 |
| Spindle nose to worktable | mm | 100 ~ 600 |
| Linear Guideway (X/Y/Z) | Type | Ball linear guide (KAITE) |
| Table size (L×W) | mm | 800×420 |
| Max. Spindle speed | rpm | 8000 |
| Lead Screw Size | mm | Ø32×P10×C3 |
| Tool Capacity | pcs | Umbrella 12T / Disc 16T |
| Main Motor | kW | 5.5 |
| Machine weight | kg | 3100 |
| Positioning accuracy | mm | ±0.005/300 |
| Repetitive accuracy | mm | ±0.003/300 |

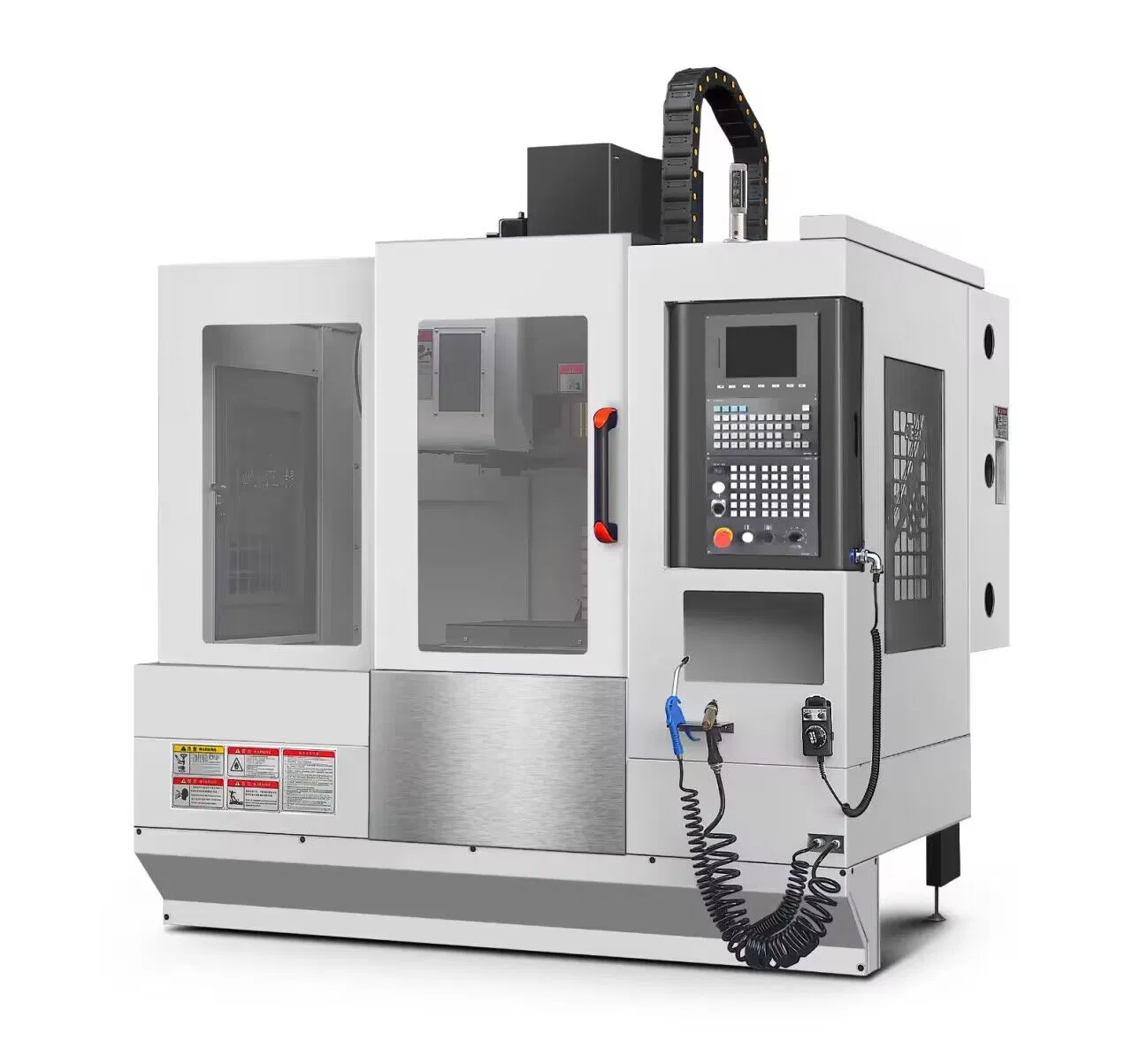

The HM-749 offers a high positioning accuracy of ±0.005/300mm and a repetitive positioning accuracy of ±0.003/300mm.
It uses a belt-type spindle with a standard speed of 8000rpm, featuring high-quality NSK or SNFA P4 grade bearings.
Yes, while the standard is an umbrella type 12T magazine, an optional 16-disc quick tool changer is available to improve automation.
The standard control system provided is the GSK980MDI, designed for reliable CNC operations.
With its linear guideways and BT40 spindle taper, it is ideal for precision milling, drilling, and tapping in various metal processing industries.
Yes, the HM-749 is certified under GS, CE, RoHS, and ISO 9001 standards, ensuring safety and quality performance.
