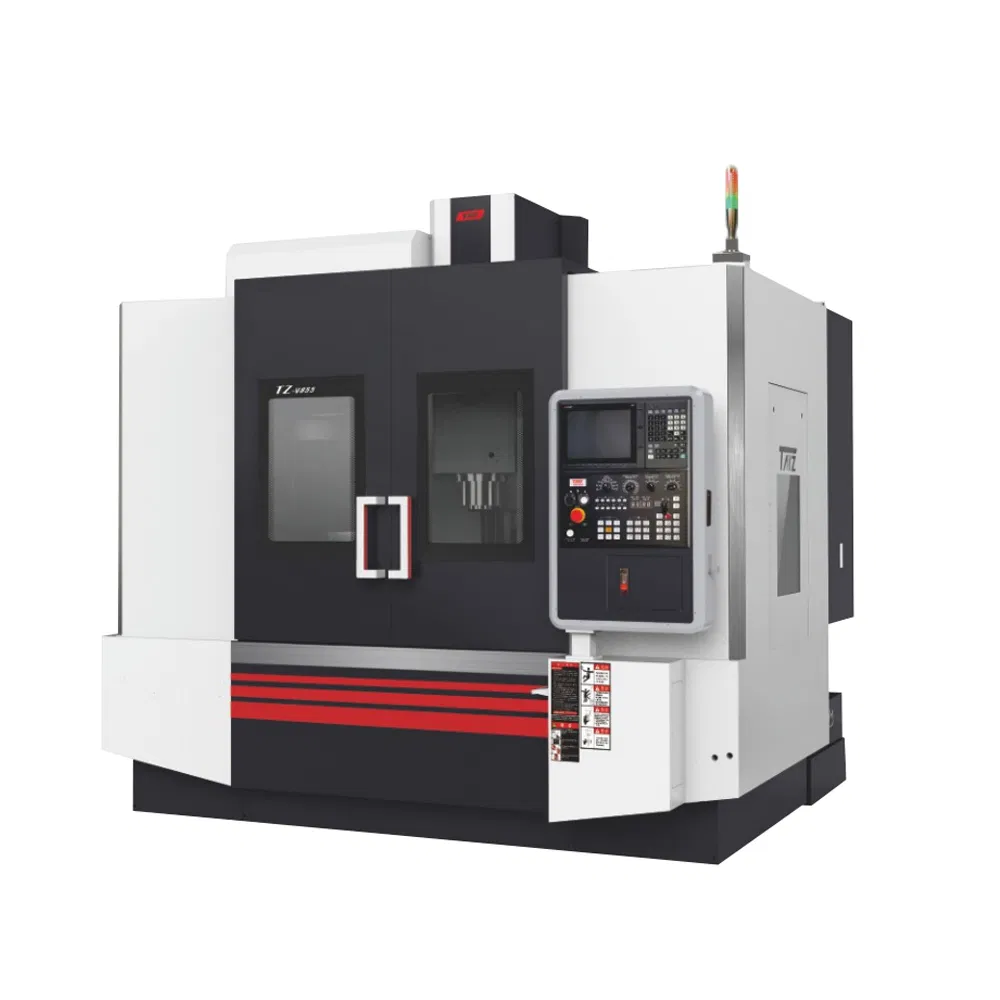

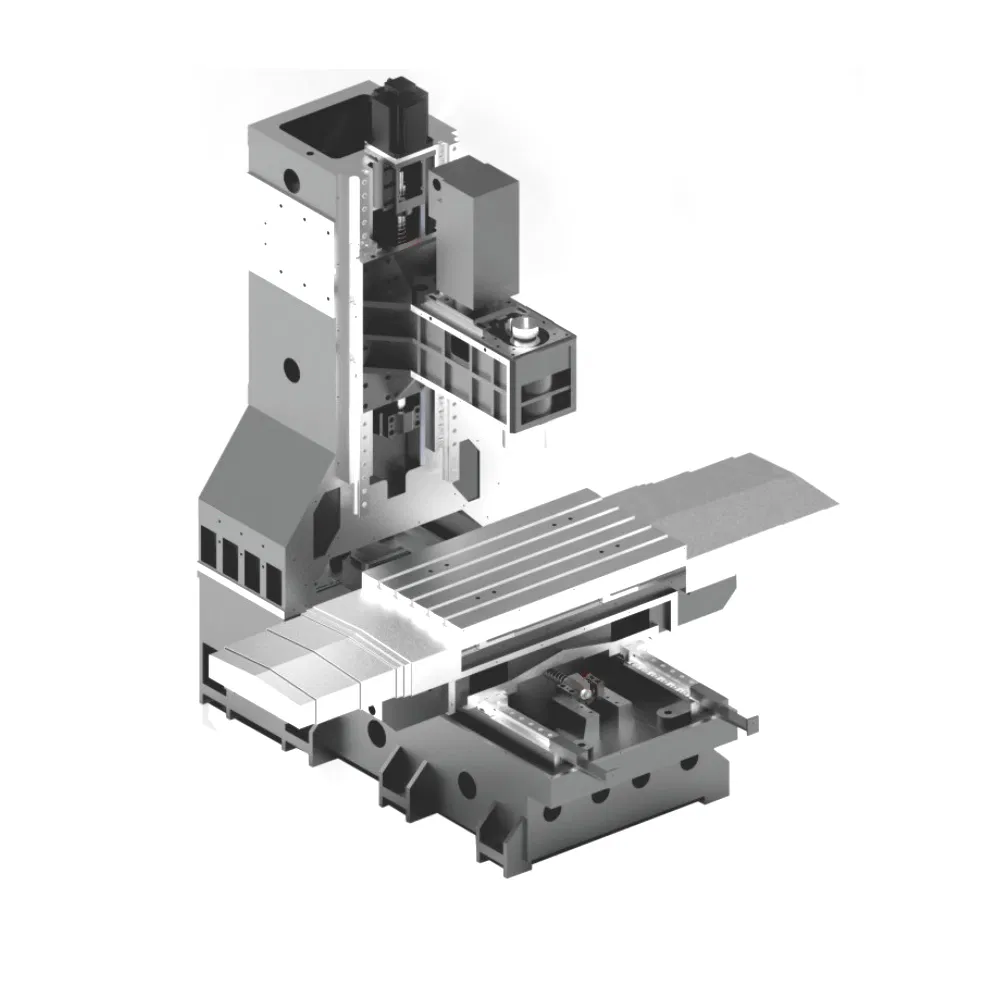

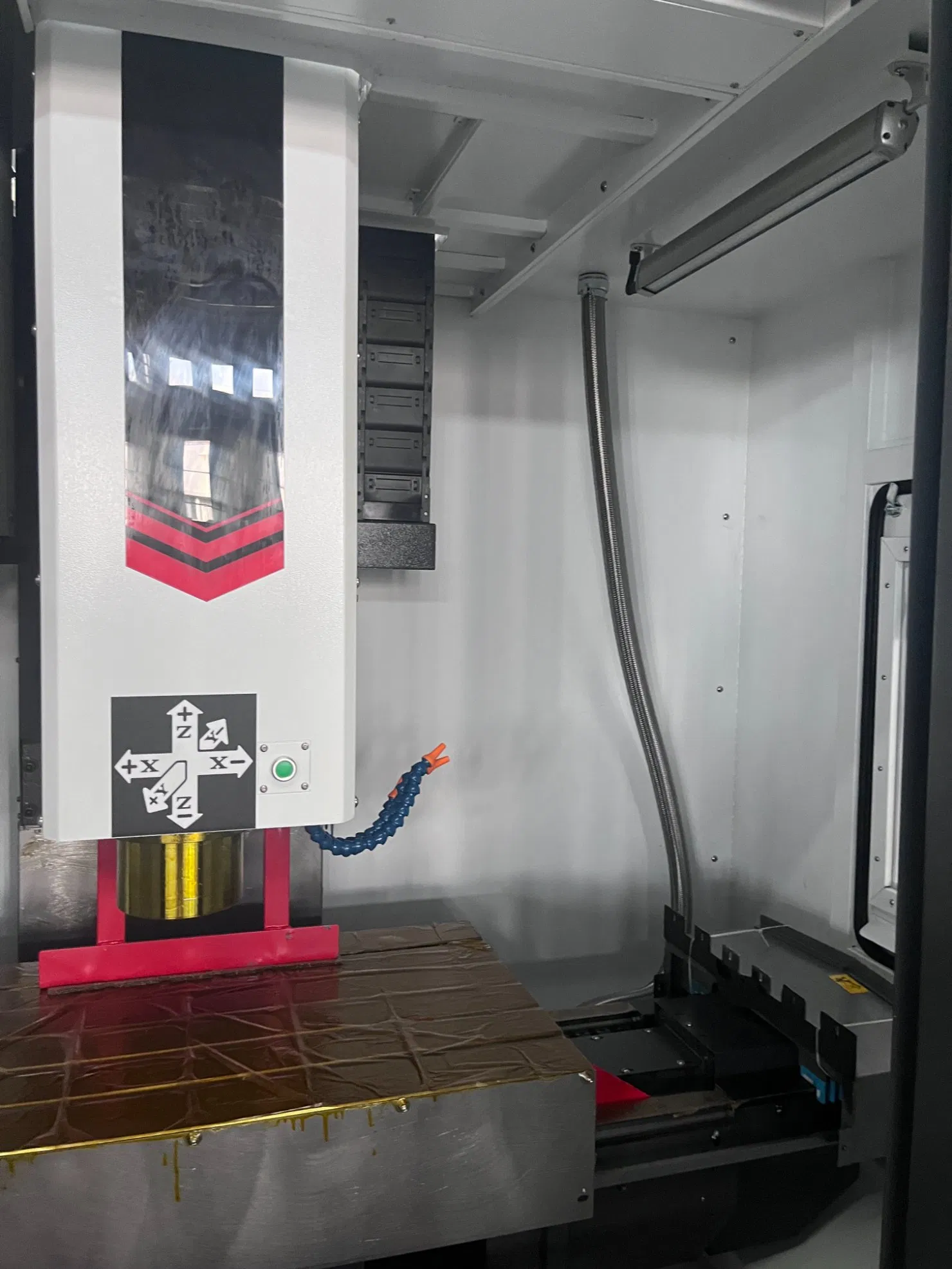

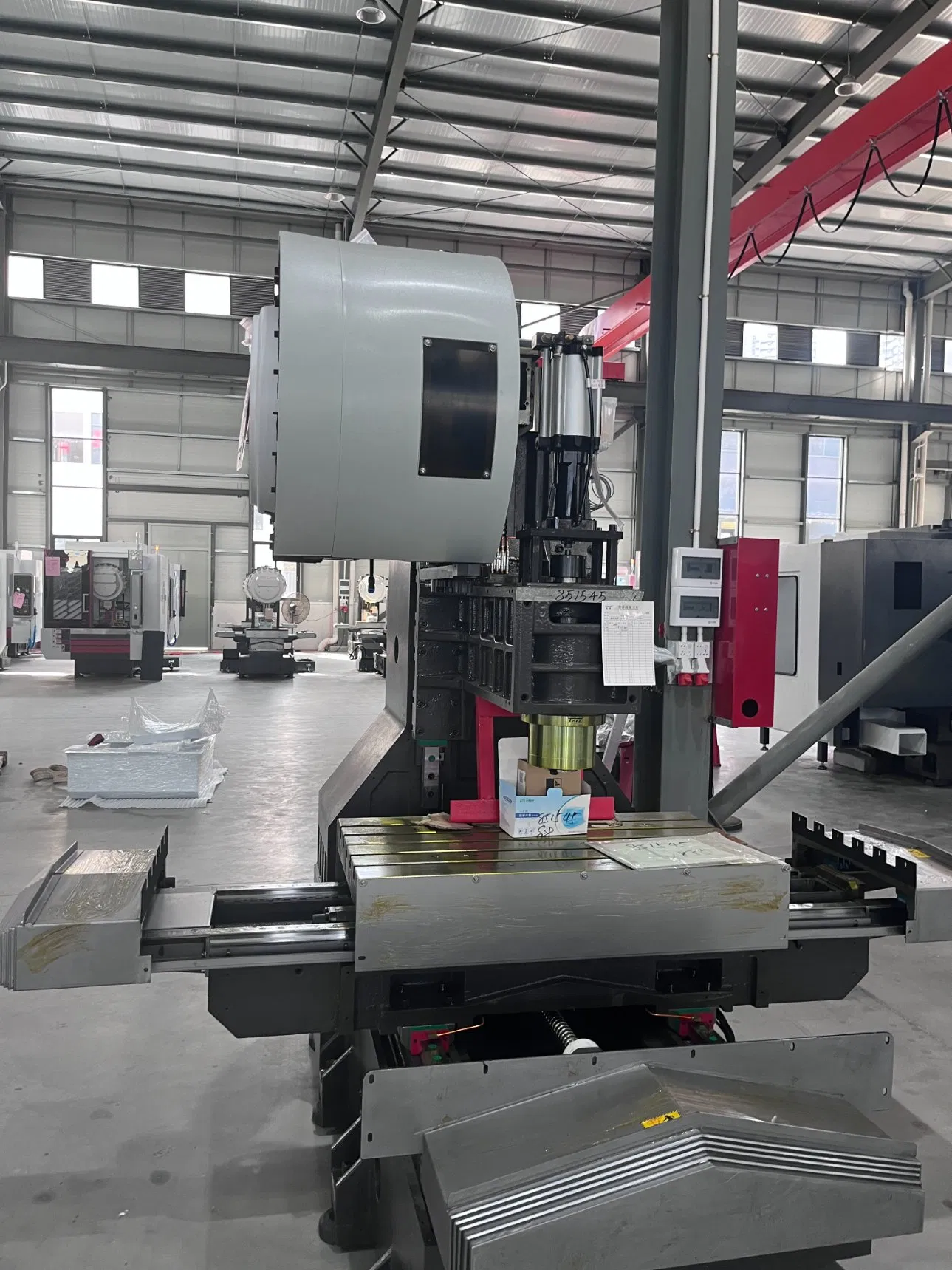

1 Model: TZ-V855 - Experience the pinnacle of engineering with our Line Rail Vertical Machining Center, a cutting-edge CNC machine tool. Developed with state-of-the-art design principles including ergonomics, precision manufacturing, and automation, this machine undergoes extensive engineering mechanics simulation and prototype testing. It's the ideal choice for industries such as medical, UAV, new energy auto parts, and precision fixture manufacturing, excelling in the mass production of precision components.
| Model | TZ-640B | TZ-740B | TZ-850B | TZ-1000B | TZ-1300B |
|---|---|---|---|---|---|
| Worktable size (mm) | 700x400 | 800x400 | 1000x500 | 1100x500 | 1400x650 |
| X/Y/Z axis travel (mm) | 600/400/300 | 700/400/300 | 800/500/420 | 1000/500/420 | 1300/650/450 |
| X/Y/Z feed speed (m/min) | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/48 | 48/48/48 |

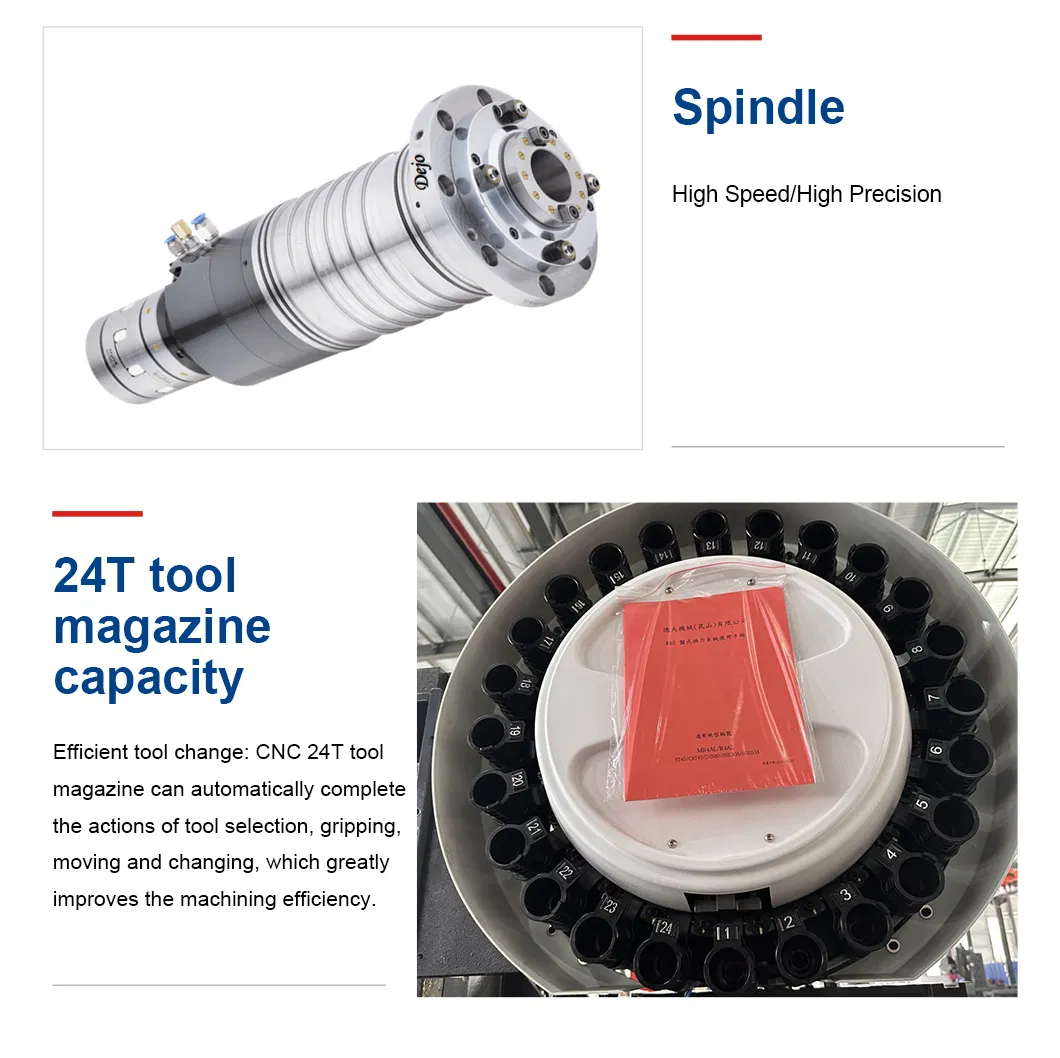

| Spindle taper | BBT30 | BBT30 | BBT30 | BBT30 | BBT30 |
| Max. spindle speed (rpm) | 20000/24000 | 20000/24000 | 20000/24000 | 20000/24000 | 20000/24000 |
| A.T.C capacity (pcs) | 24 | 24 | 24 | 24 | 24 |
| Positioning accuracy (mm) | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Main Parts | Origin / Brand |
|---|---|
| CNC System | M80B Mitsubishi / Japan |
| Spindle and Servo Motor | Mitsubishi / Japan |
| Ball Screw | Yintai or Shangyin / Taiwan (C3) |
| Screw Bearing | P4NSK / Japan |
| Rail | Yintai or Shangyin / Taiwan (P) |
| Electrical Components | France |
| Pneumatic Components | Taiwan AirTAC / Japan SMC |
