MecMill Precision
1 / 5

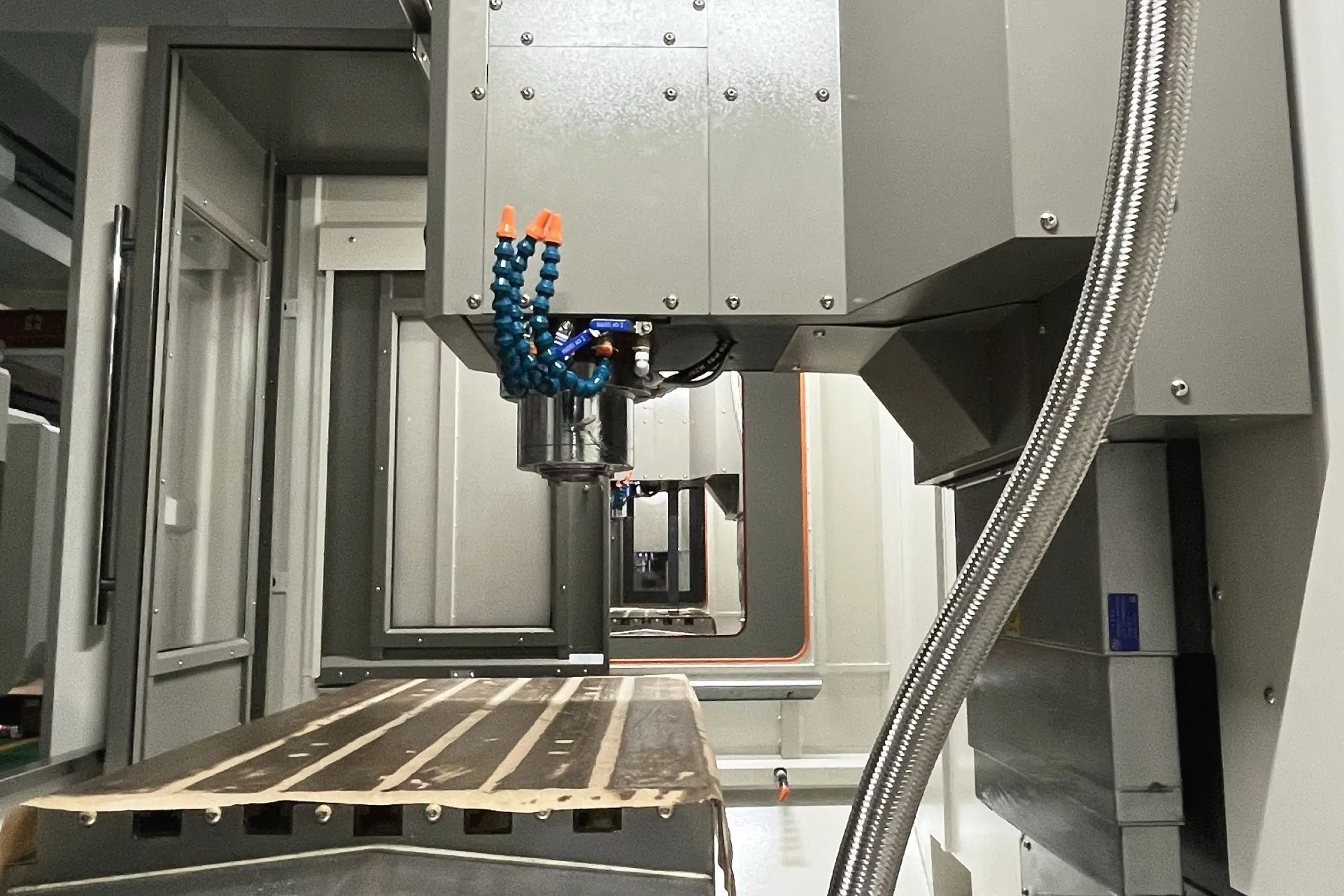

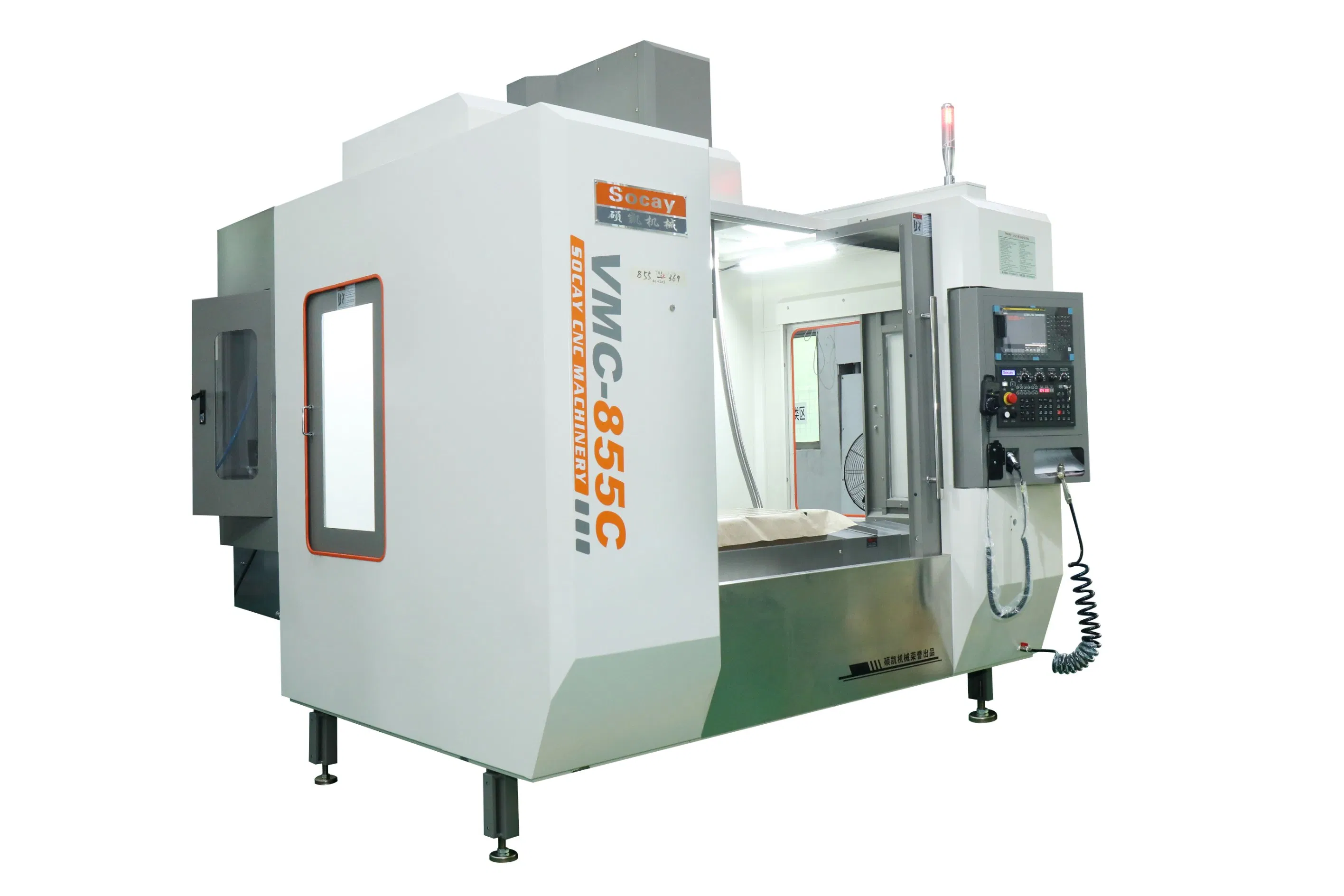

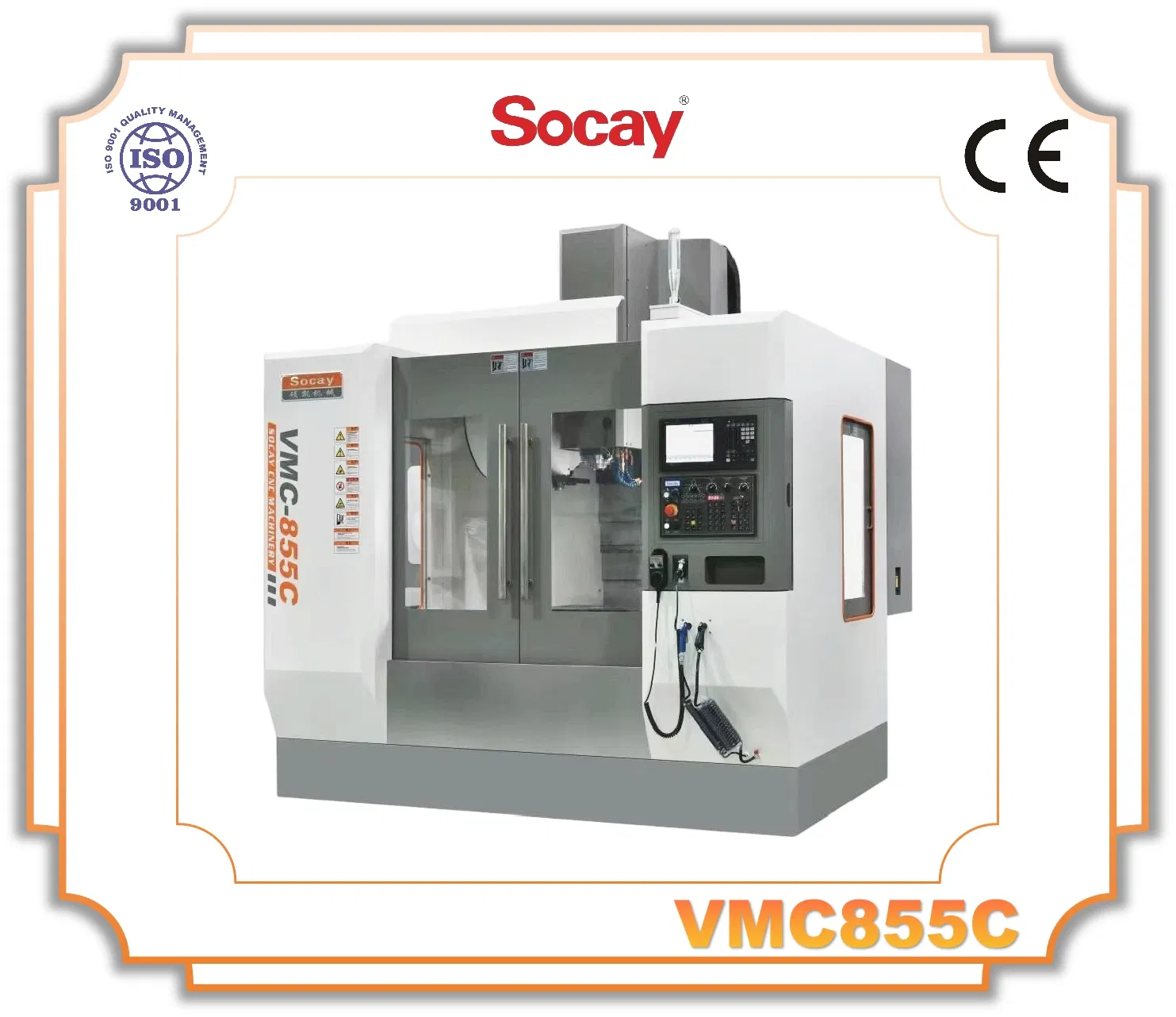

| ITEM | Unit | VMC-855C | |
|---|---|---|---|

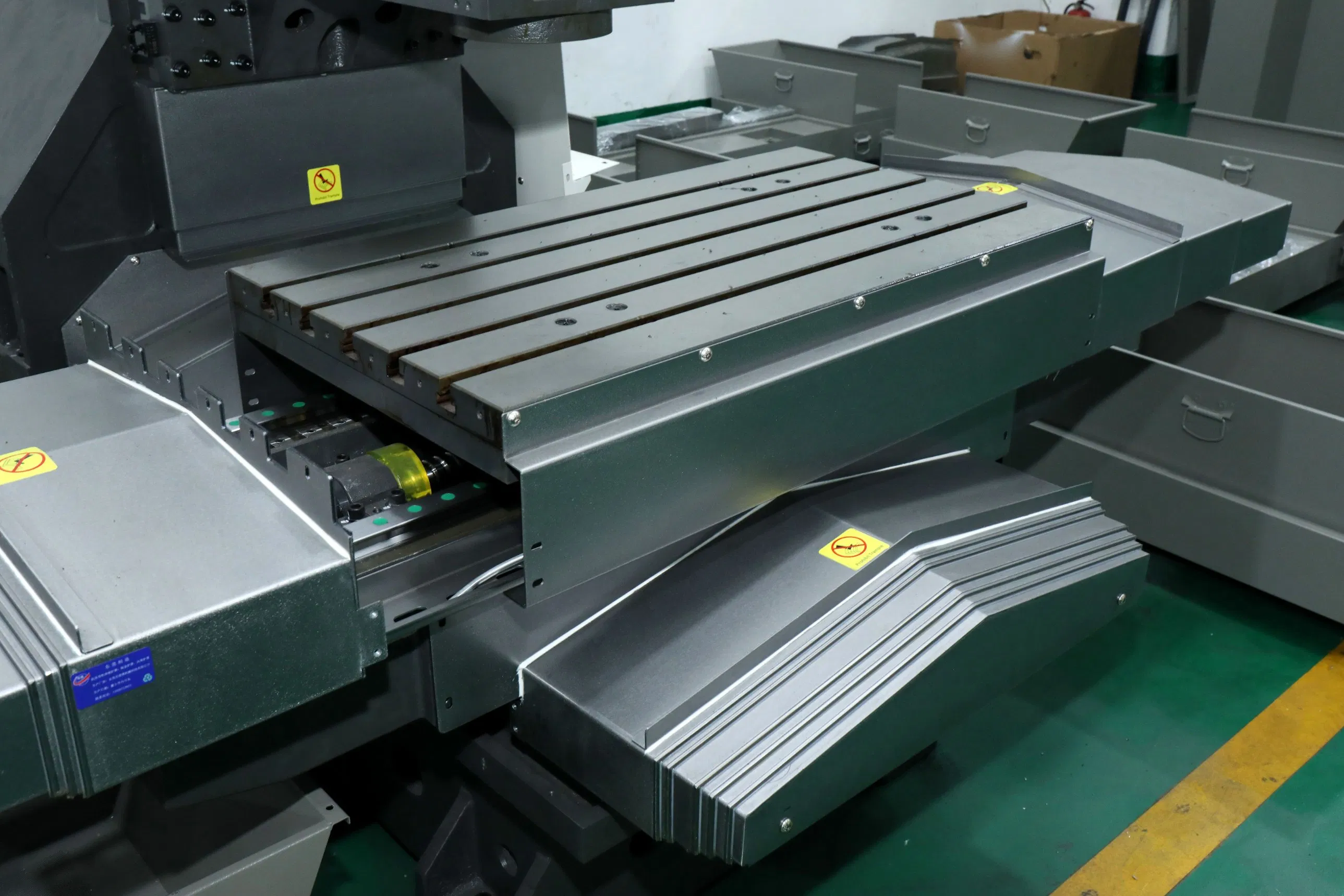

| Worktable | Worktable dimensions | mm | 1000×550 |
| Processing range | mm | 800×550 | |
| T-shaped groove | mm | 5-18×90 | |
| Maximum load | kg | 800 | |
| Travel | X/Y/Z axis | mm | 800/550/550 |
| Spindle center to column | mm | 560 | |
| Spindle nose to worktable | mm | 120-670 | |

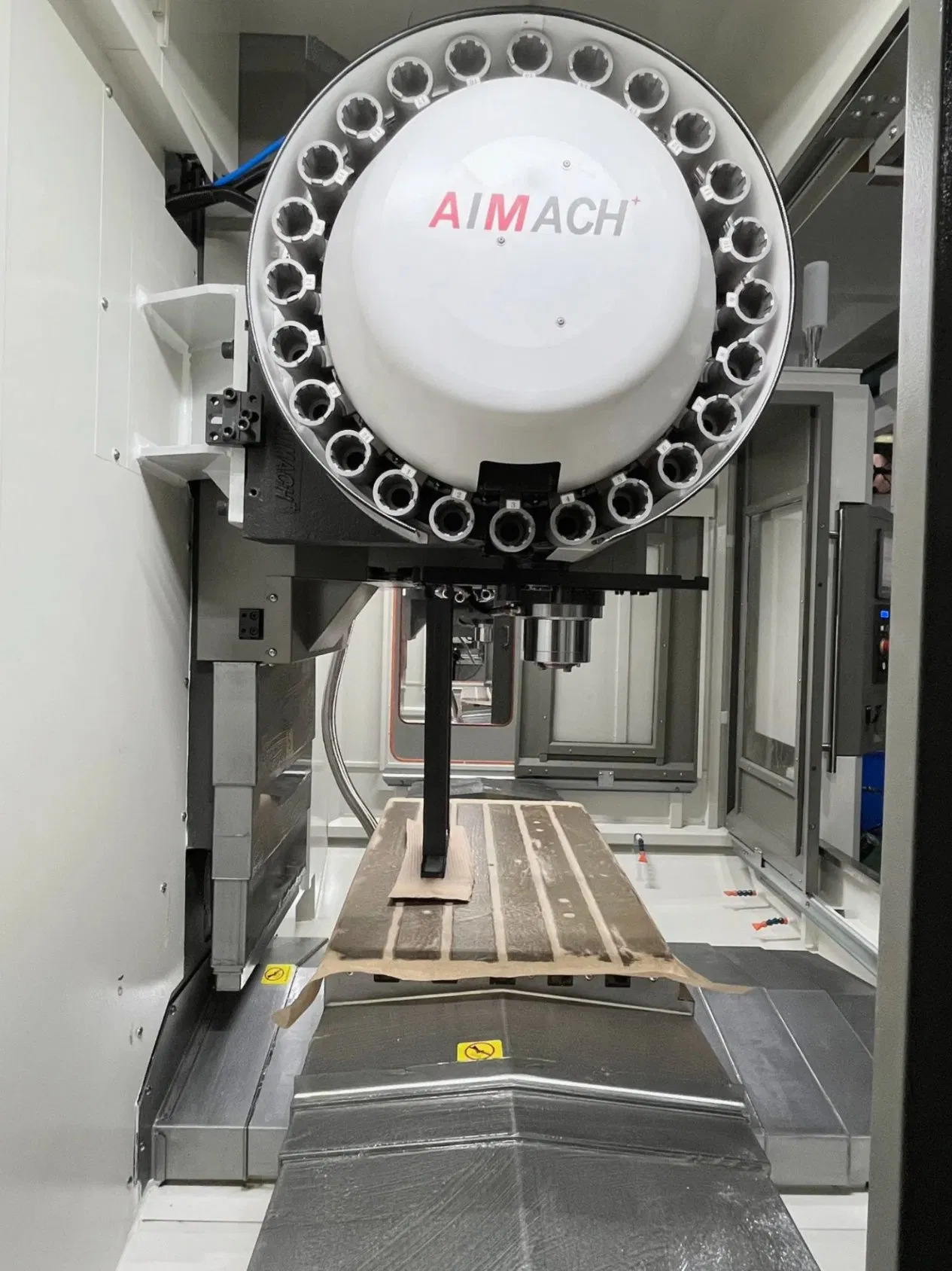

| Spindle | Spindle taper hole | / | BT-40 |
| Spindle speed | rpm | 8000/10000 (Belt) / 12000 (Direct) | |
| Feed Rate | Cutting feed rate | mm/min | 1-18000 |
| X/Y/Z rapid movement | m/min | 48/48/48 | |
| Precision | Positioning accuracy | mm | 0.005/300 |
| Repeatability accuracy | mm | ±0.003/300 | |

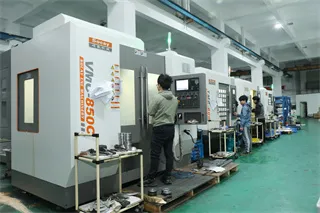

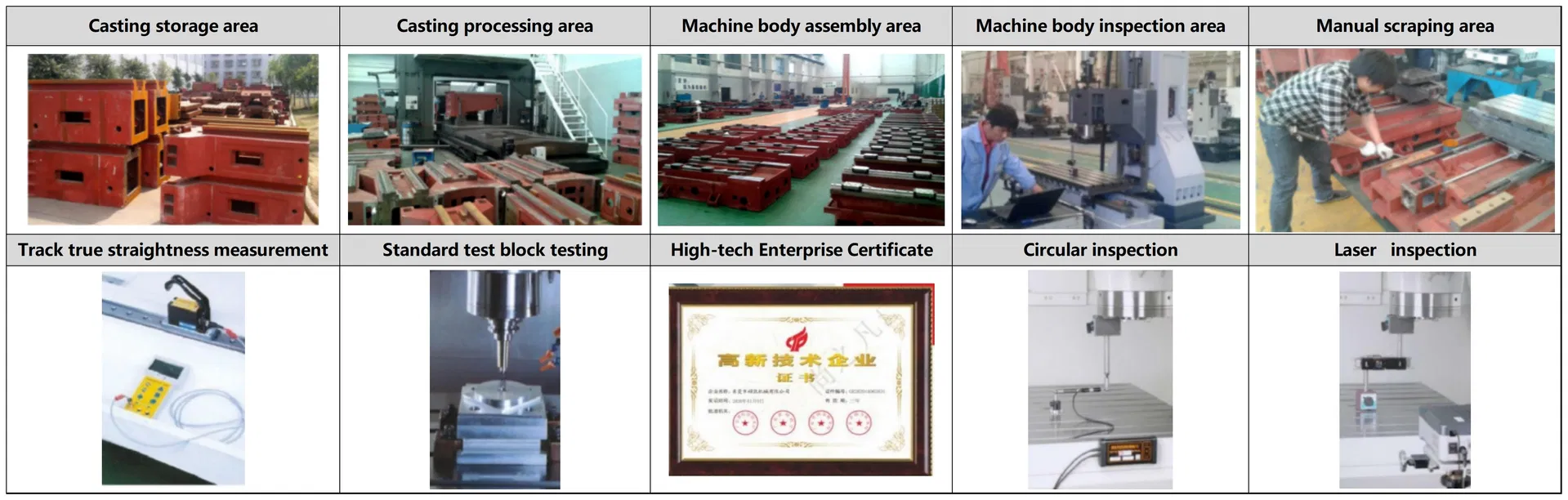

Our facility spans more than 80,000m² with over 200 skilled workers. We implement a strict QC control process with more than 24 steps and follow ISO9001 production standards.

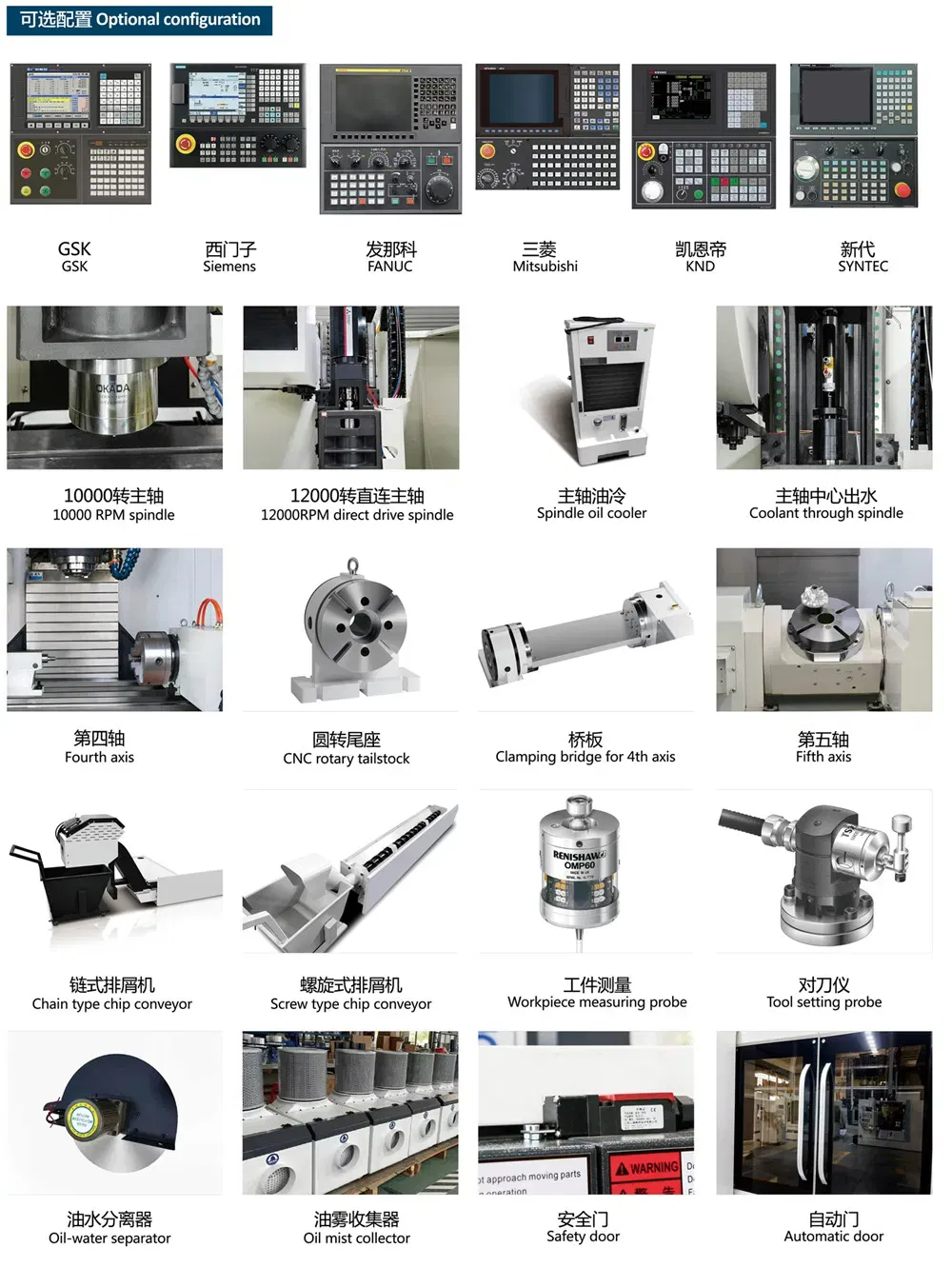

With 30+ years of CNC machine manufacturing experience, we have traded with customers in over 100 countries. We cooperate with famous brands such as SIEMENS, FANUC, and SYNTEC to provide high-end industrial solutions.
