We produce different kinds of tungsten carbide tools including tungsten carbide drill bit, tungsten carbide twist drill, tungsten carbide end mills, tungsten carbide countersink drills, tungsten carbide micro drill, tungsten carbide engraving tool, tungsten carbide saw blade, tungsten carbide center drill, tungsten carbide drills with straight flute, tungsten carbide 3-lip drills, tungsten carbide step drill, tungsten carbide center micro drill, tungsten carbide machine reamer, tungsten carbide cutter reamer, Shaped Cutters Mill, Micro Metric Thread Mill, left hand spiral-right hand cut router, tungsten carbide small hole boring tool.
Our range includes solid carbide metal working tools, DIN338, DIN1897 twist drills, rotary files, rotary burrs, carbide burrs, aluminum cut carbide burrs, and various milling cutters (metric and inch sizes) following factory and ANSI standards such as DIN6527L, DIN6527K, and DIN6528.
Material: TK30S, RHC91.5
| DIA (mm) | F.L (mm) | OA.L (mm) | Shank dia (mm) |
| 2 | 15 | 35 | 2 |
| 3 | 20 | 40 | 3 |
| 4 | 20 | 50 | 4 |
| 5 | 30 | 50 | 5 |
| 6 | 35 | 60 | 6 |
| 8 | 40 | 70 | 8 |
| 10 | 40 | 75 | 10 |
| 12 | 50 | 80 | 12 |
| Item | Main Size (mm) | Min hole dia (mm) | |||||
| φd | F | f | L1 | L | Re | ||

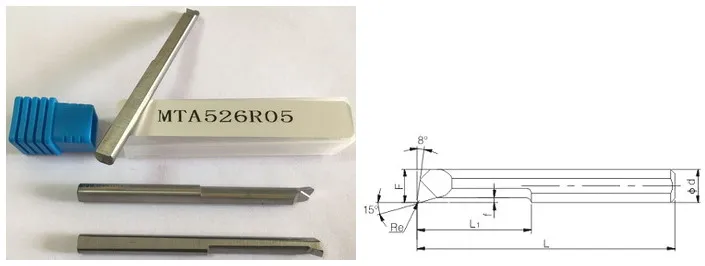

| MTA206R05 | φ3 | 1.9 | 0.3 | 6.2 | 50 | R0.05 | φ2 |
| MTA310R05 | φ3 | 2.9 | 0.4 | 10.5 | 50 | R0.05 | φ3 |
| MTA416R05 | φ4 | 3.9 | 0.5 | 16 | 50 | R0.05 | φ4 |

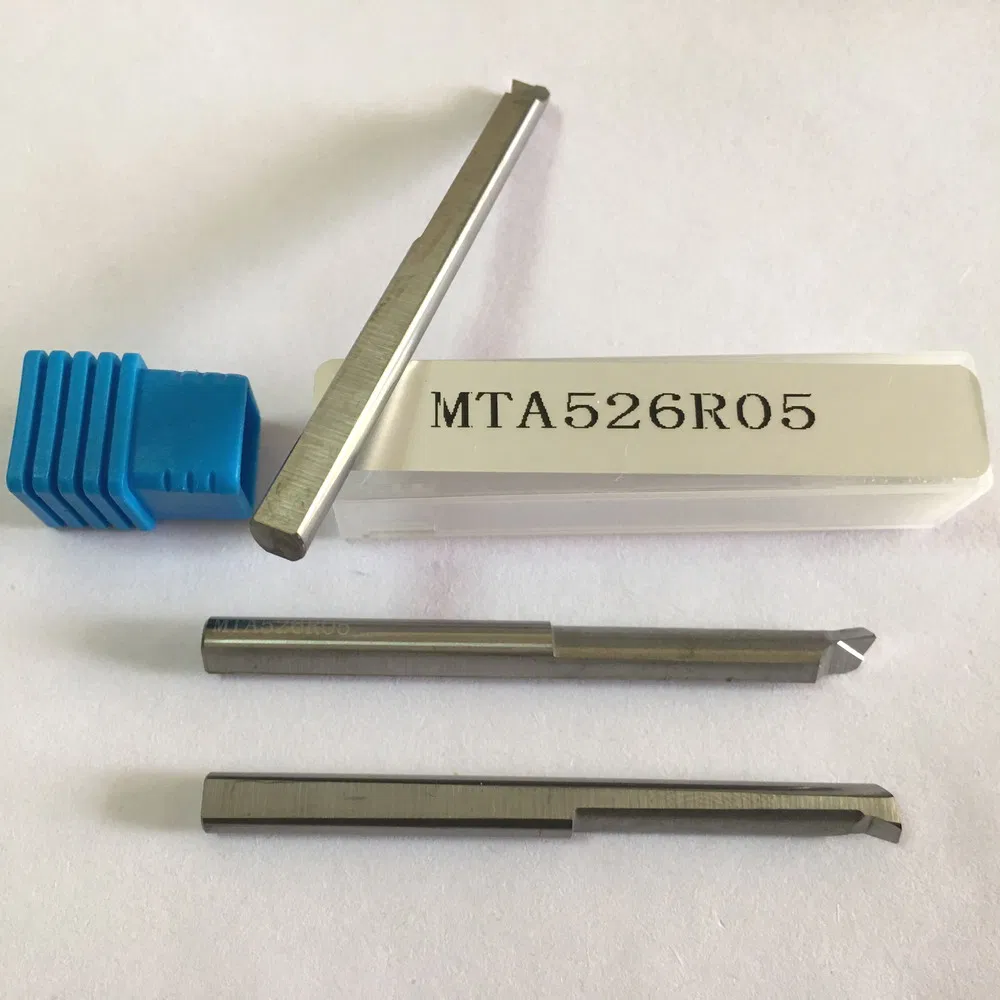

| MTA526R05 | φ5 | 4.9 | 0.6 | 26.3 | 60 | R0.05 | φ5 |
| MTA630R05 | φ6 | 5.9 | 0.7 | 30.6 | 60 | R0.05 | φ6 |
| Item | Main Size | Min hole dia | |||||||
| φd | F | f | L1 | W | L | Re | θ° | ||

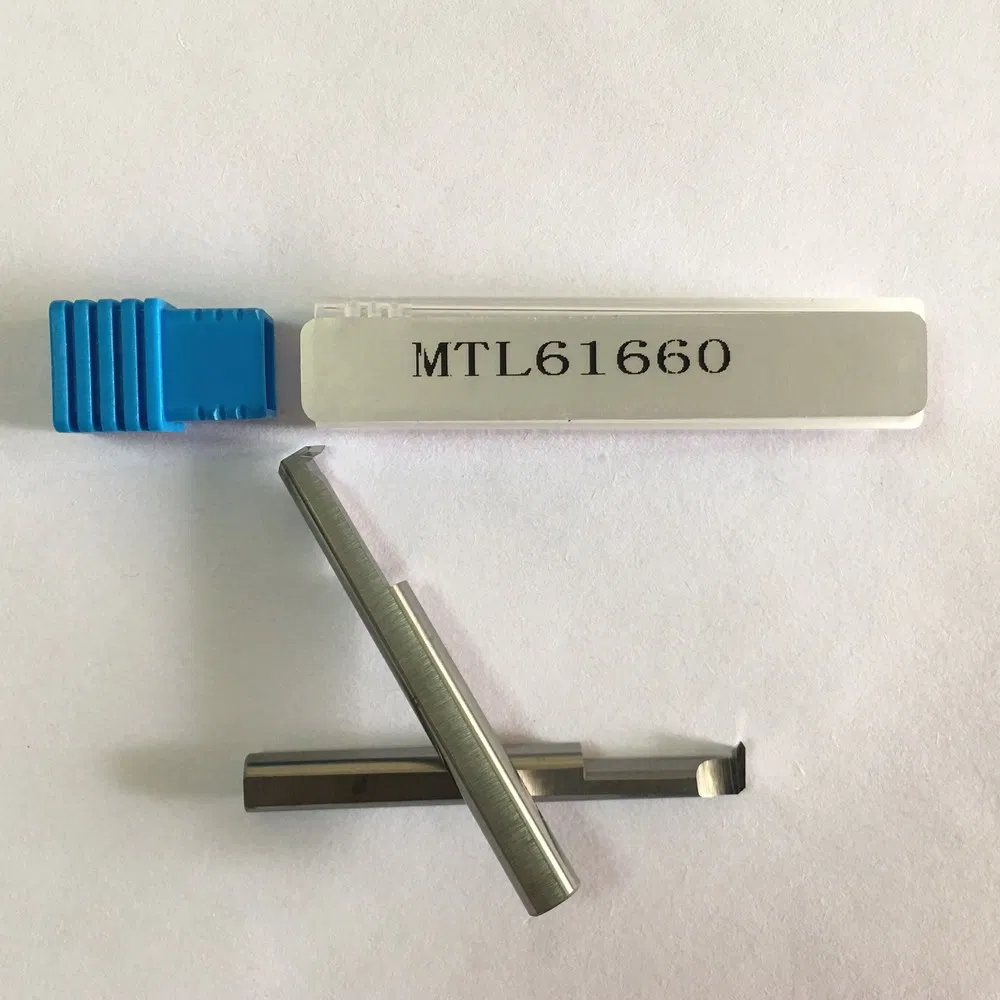

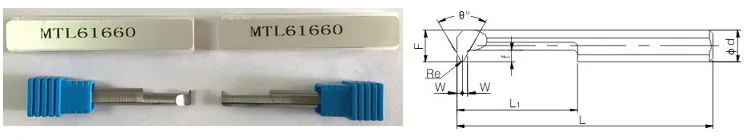

| MTL30960 | φ3 | 2.3 | 0.7 | 9.8 | 0.4 | 40 | R0.03 | 60° | φ2.5 |
| MTL41360 | φ4 | 3.9 | 1.1 | 13.1 | 0.55 | 50 | R0.05 | 60° | φ4.1 |
| MTL61555 | φ6 | 5.7 | 1.8 | 15.7 | 0.85 | 50 | R0.12-R0.31 | 55° | φ6 |
| Item | Main Size | Min. machining Dia. | ||||||

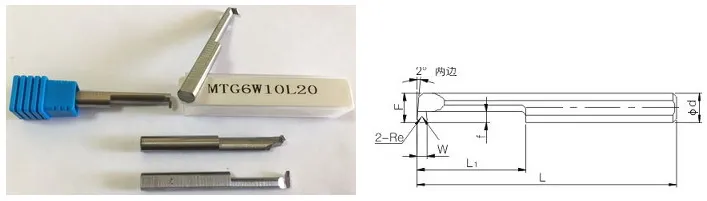

| MTG3W05L6 | φ3 | 2.9 | 0.8 | 5.5 | 0.5 | 40 | R0.03 | φ3 |
| MTG4W06L10 | φ4 | 3.9 | 1.2 | 9.6 | 0.6 | 50 | R0.03 | φ4 |
| MTG6W10L10 | φ6 | 5.9 | 2 | 10 | 1 | 50 | R0.05 | φ6 |

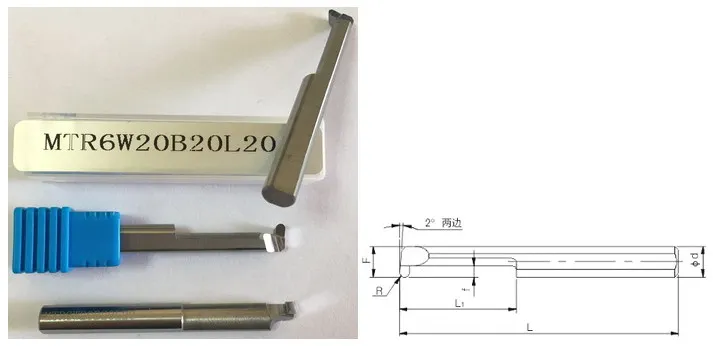

| Item | Main Size | Min hole dia | |||||
| φd | F | f | L1 | L | Re | ||
| MTR3W08B08L10 | φ3 | 2.9 | 0.8 | 10 | 50 | R0.4 | φ3 |
| MTR4W08B14L10 | φ4 | 3.9 | 1.4 | 10 | 50 | R0.6 | φ4 |
| MTR6W18B20L10 | φ6 | 5.9 | 2 | 10 | 50 | R1 | φ6 |
| Item | Main Size | Min hole dia | ||||||

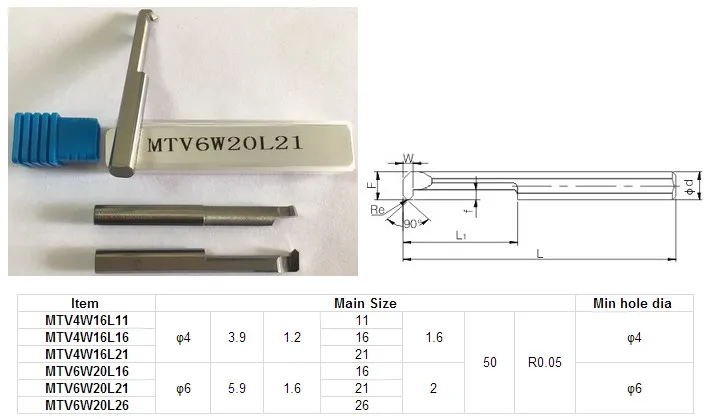

| MTV4W16L11 | φ4 | 3.9 | 1.2 | 11 | 1.6 | 50 | R0.05 | φ4 |
| MTV6W20L16 | φ6 | 5.9 | 1.6 | 16 | 2 | 50 | R0.05 | φ6 |
| Item | Main Size | Min hole dia | ||||||
| φd | F | f | L1 | W | L | Re | ||

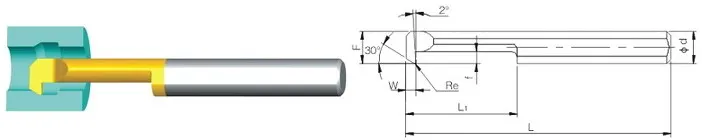

| MTJ3F29L07 | φ3 | 2.9 | 1.1 | 7 | 1.5 | 50 | R0.05 | φ3 |
| MTJ6F59L16 | φ6 | 5.9 | 2.1 | 16 | 2 | 50 | R0.05 | φ6 |

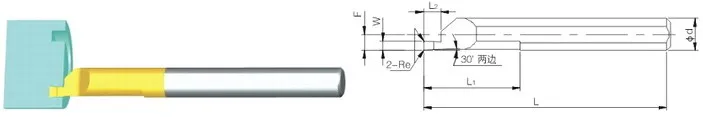

| Item | Main Size | ||||||
| φd | F | L1 | L2 | W | Re | L | |
| MTD4W75H12 | φ4 | 1.95 | 15 | 1.2 | 0.75 | R0.05 | 50 |
| MTD6W200H30 | φ6 | 2.95 | 22 | 3 | 2 | R0.05 | 50 |

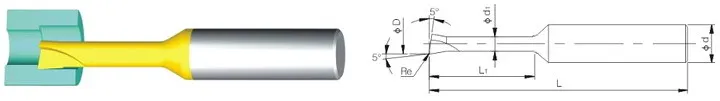

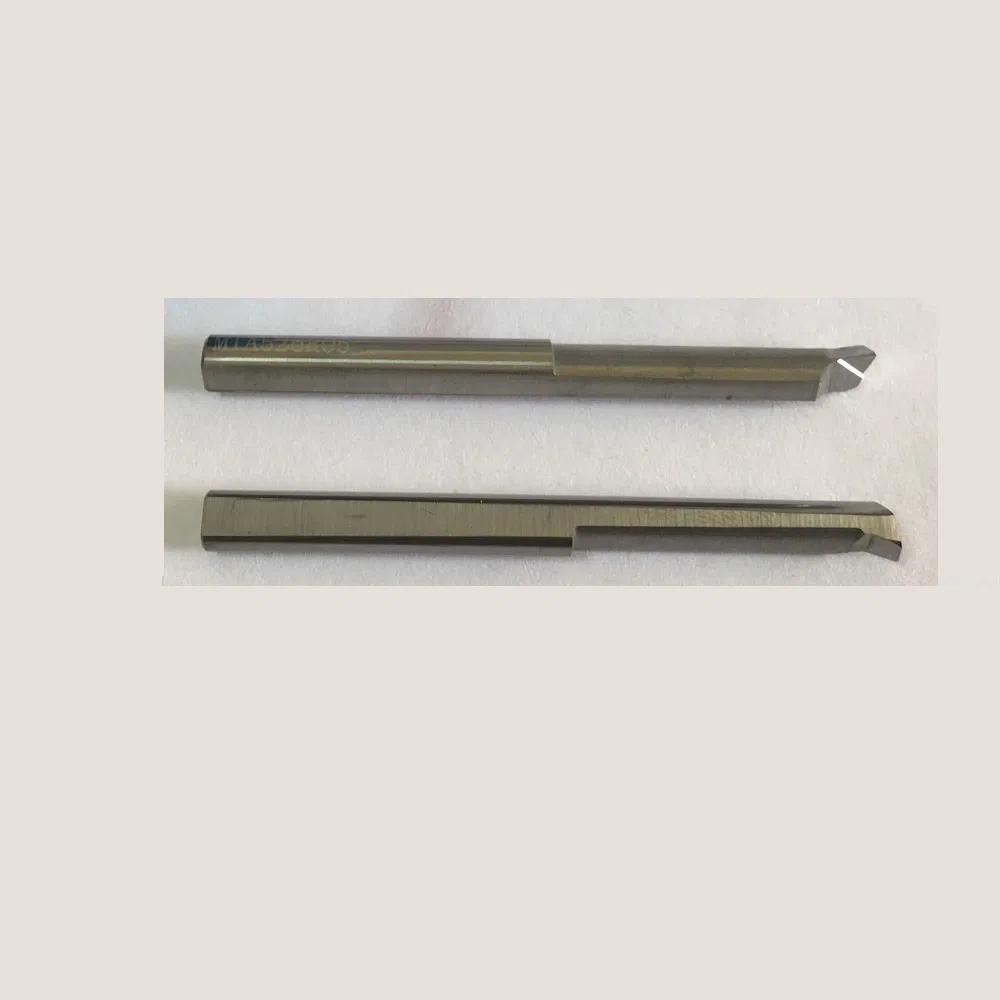

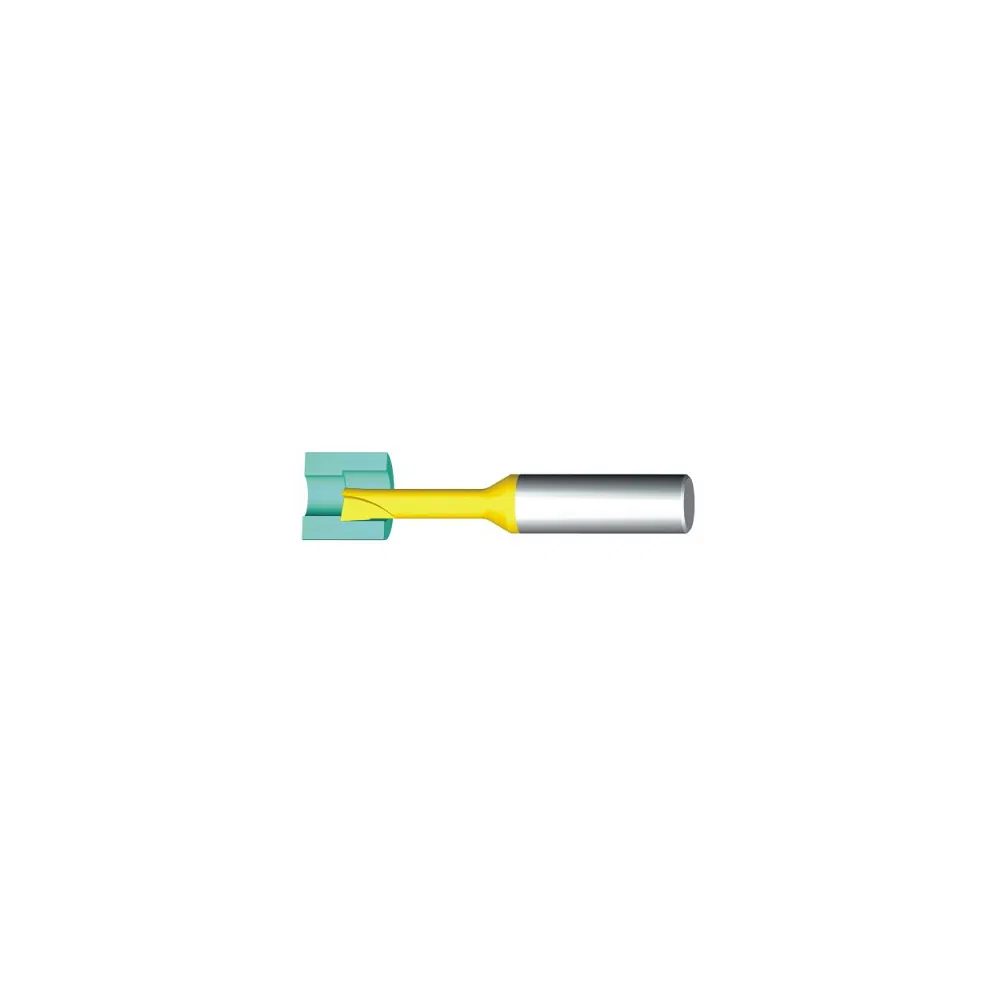

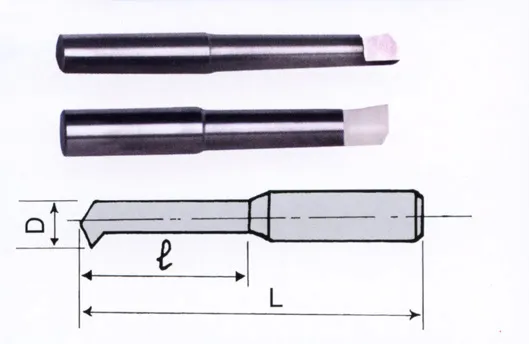

| Item | Main Size | Min hole dia | |||||
| φD | L1 | L | φd1 | φd | Re | ||
| MTN18R05 | φ1.8 | 11 | 60 | φ1.5 | φ10 | R0.05 | φ2 |
| MTN61R05 | φ6.1 | 24 | 60 | φ5 | φ10 | R0.05 | φ6.3 |
