Product Detailed Description

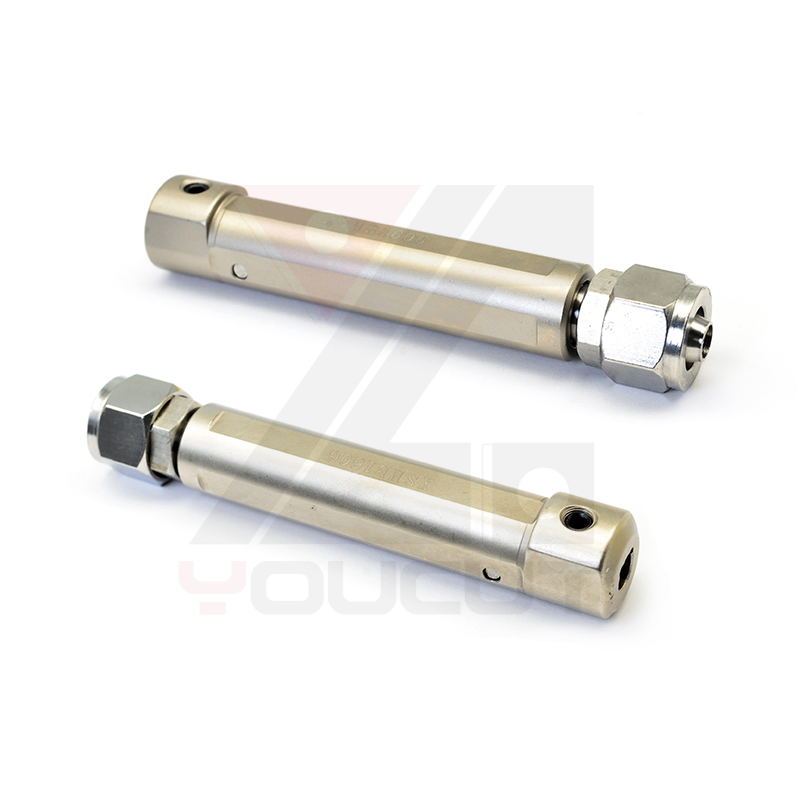

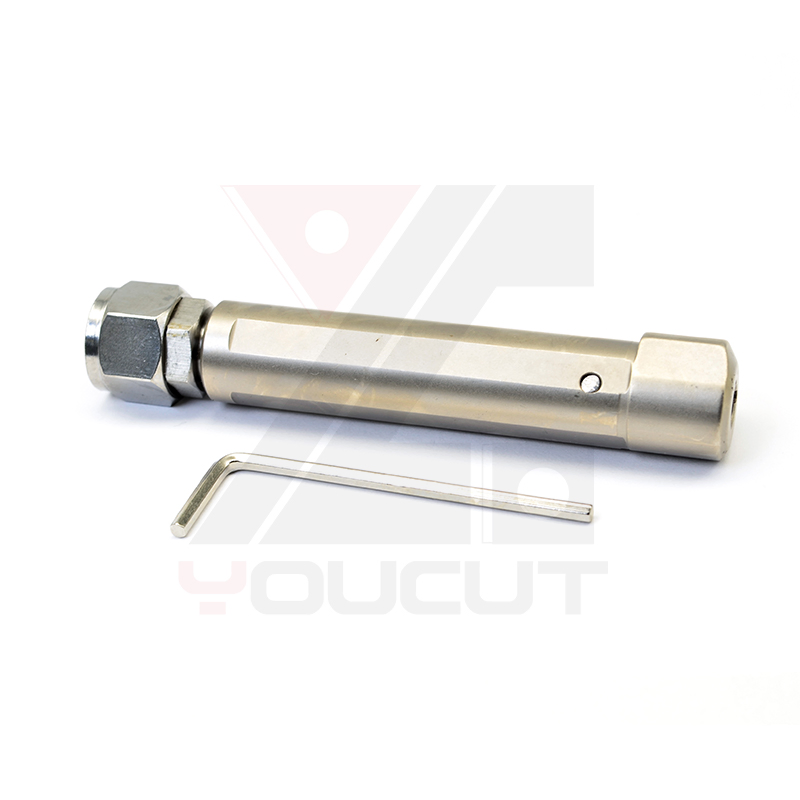

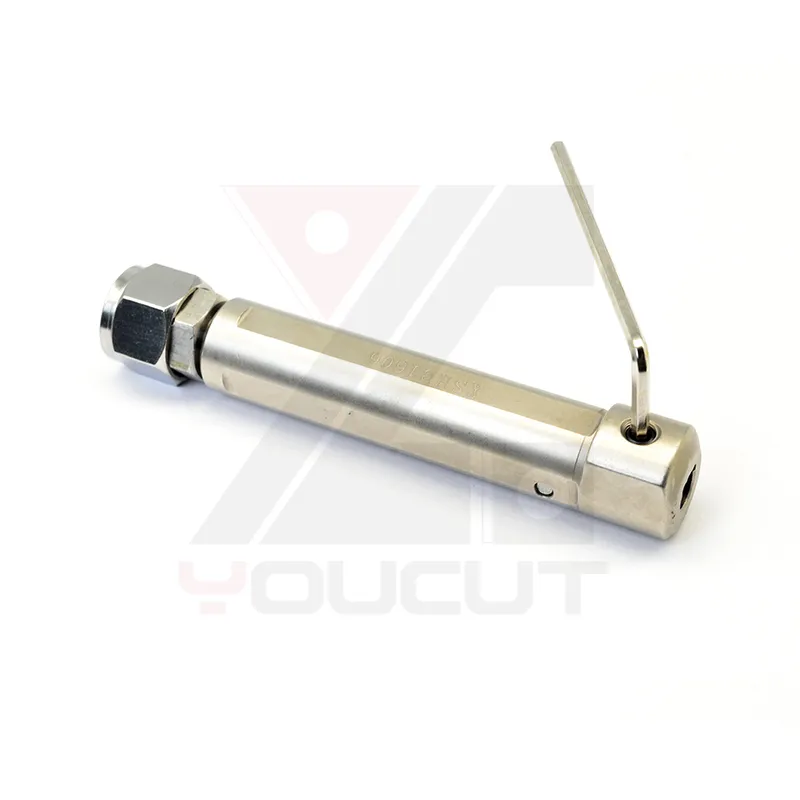

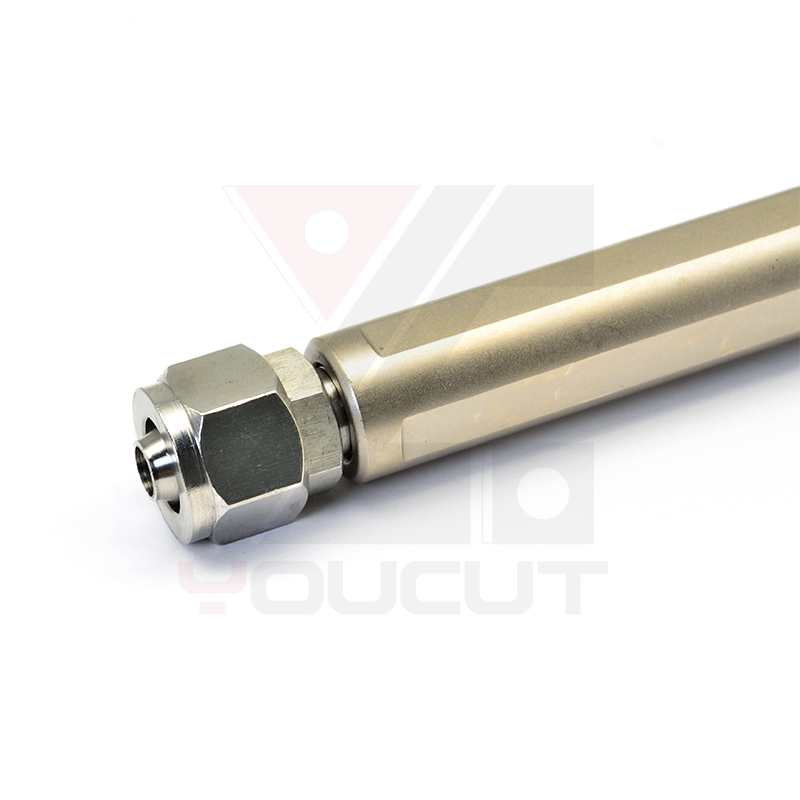

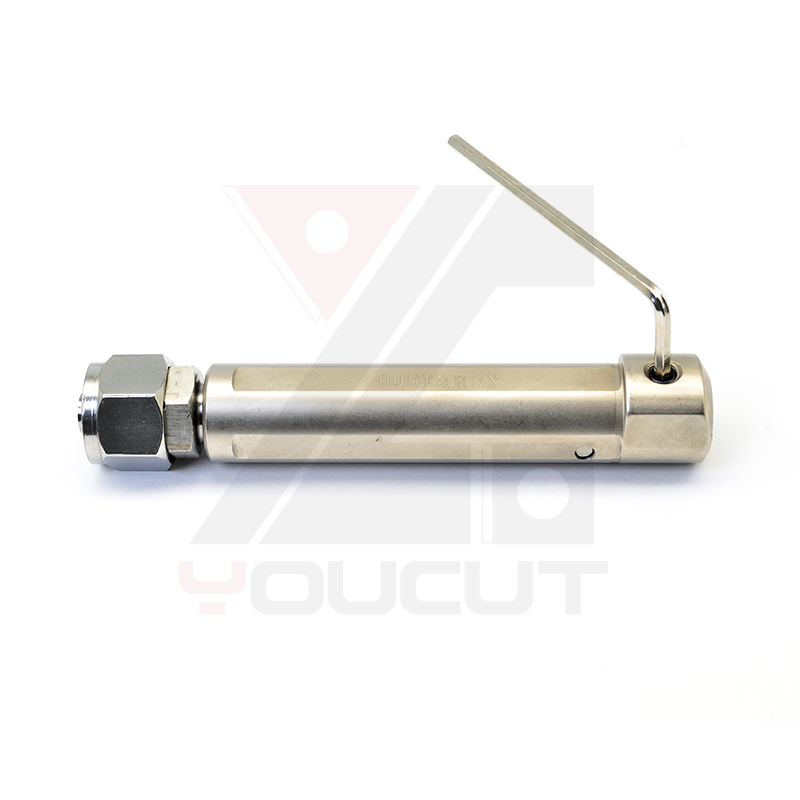

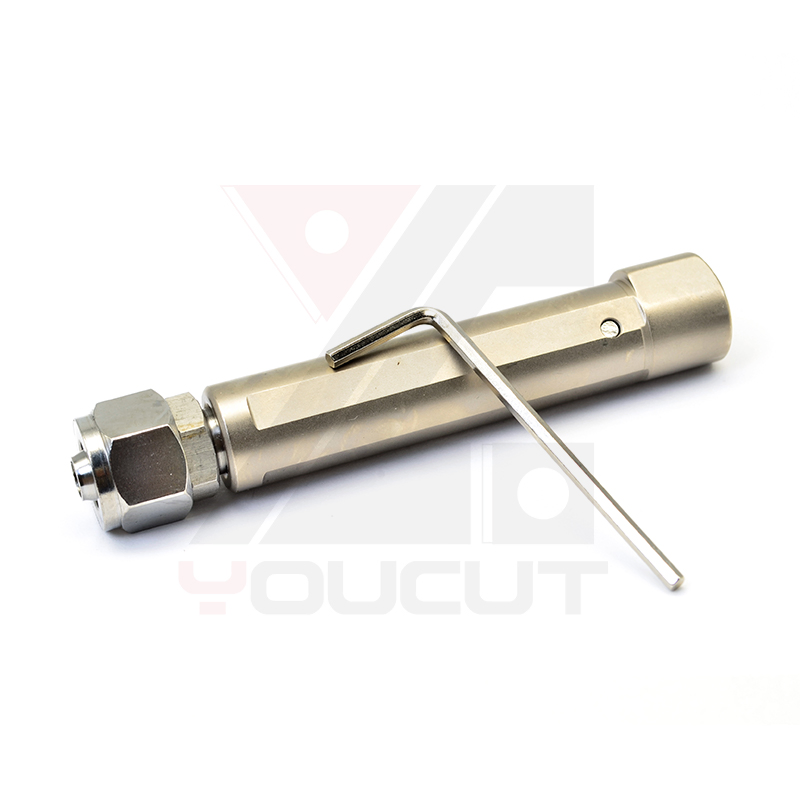

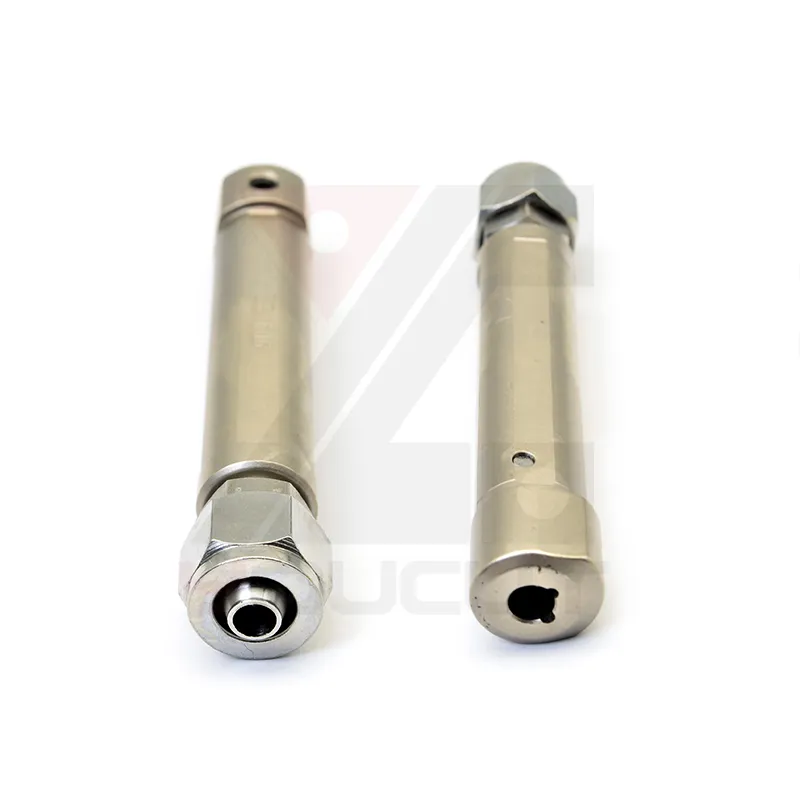

The XSHB1606 rear inclined plane positioning toolholder is a specialized accessory engineered for precise clamping, storage, and positioning of CNC cutting tools (e.g., end mills, drills, boring tools). Its model code reflects targeted performance: XSHB (series identifier for rear chamfered locating sleeves), 16 (fits 16mm tool shank diameter), 06 (precision grade for high-repeatability positioning). The "rear inclined plane positioning" design ensures smooth tool insertion while protecting both the sleeve and tool shank from wear.
Ideal for CNC machining centers, automated production lines, and tool libraries, this sleeve bridges the gap between tool storage and machining accuracy, ensuring consistent tool alignment for stable cutting performance.
Key Application Scenarios
- CNC Machining Centers: Secures 16mm-shank tools during non-use storage, preventing shank deformation and maintaining tool concentricity.
- Automatic Tool Changer (ATC) Systems: Delivers ≤0.005mm repeat positioning accuracy to minimize tool changeover time.
- Tool Library Management: Organizes precision cutting tools in workshops with clear model marking for quick identification.
- High-Precision Machining: Supports critical processes like mold cavity machining and aerospace component drilling.
Packaging & Shipping
Packaging:
Step 1: Product packed in a plastic box (normally 10 pcs).
Step 2: Bubble wraps used for each parcel.
Step 3: Thickened hard paper carton with bubble wraps for sealing.
Shipping:
We utilize fast express services (FedEx, TNT, DHL, UPS) with delivery times ranging from 5-15 days worldwide.
Frequently Asked Questions
1. What is the repeat positioning accuracy of the XSHB1606?
The XSHB1606 holder ensures a high repeat positioning accuracy of ≤0.005mm, which is critical for maintaining consistency in batch production.
2. Which tool shank sizes is this holder compatible with?
This specific model is designed to fit standard 16mm-diameter CNC tool shanks commonly used for end mills, drills, and reamers.
3. How does the rear chamfered design protect my tools?
The 45° rear chamfer eliminates sharp edges at the sleeve opening, guiding the tool shank into place without jamming or scraping, reducing wear by up to 35%.
4. What materials can be processed using tools held by the XSHB1606?
It is perfect for machining carbon steel, alloy steel, cast iron, and non-ferrous metals like aluminum and brass.
5. What are the delivery terms and shipping options?
We offer multiple delivery terms including FOB, CIF, EXW, and Express Delivery via FedEx, DHL, or UPS, typically reaching any country within 5-15 days.
6. Is custom toolholder service available?
Yes, we provide non-standard customized services for different hardness and specifications based on specific client requirements.
